User manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC1

The user manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC1 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Assistive Listening Systems.

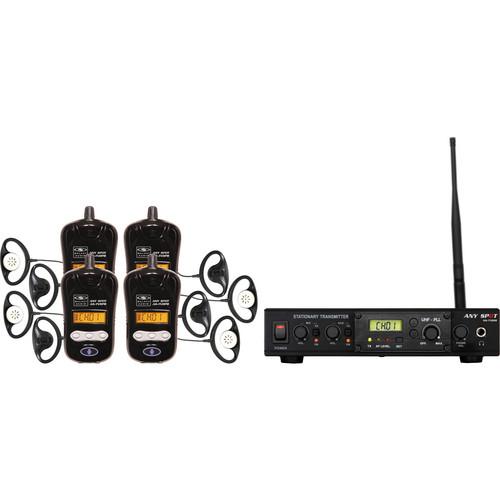

The ALS-RMBPR-4 Assistive Listening System with AS-EC1 earcups from Galaxy Audio is designed to aid with hearing in loud or noisy environments, as well as help facilitate the translation of a speech or presentation into another language that is to be broadcasted to listeners. It is intended for use in conference rooms, hotels, museums, houses of worship, rental houses, manufacturing facilities, guided tours, and more.

The ALS-RMBPR-4 Assistive Listening Table Top Kit consists of an AS-TXRM table top transmitter which includes 96 switchable channels, easily identified along with other system functions on its LCD display. The transmitter includes an RF and AF indicator and a volume control.

The AS-TVBPR body pack receiver is designed to be lightweight and compact for easier portability. It features soft touch buttons, an LCD display, and a rechargeable lithium battery. The receiver includes contacts for an optional cradle charger and a removable belt clip, and also has both line and headphone outputs. The system comes complete with four AS-EC1 ear cups, which are fixed, black, over-the-ear types, that wrap around the ear, with 1/8" (3.5mm) angled plugs. Other ear cups in the AS-EC series may be used in this system as well, and are available for purchase.

The TG Series ALS-RMBPR-4 can be used with an optional AS-TVH2 handheld microphone or AS-TVBPT Pendant Style Body Pack transmitter, and additional AS-TVBPR receivers can be purchased either individually or in a 5-pack.
If you own a assistive listening systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio Galaxy Audio ALS-RMBPR-4 Assistive ALS-RMBPR-4-EC1:
Bodypack Transmitter
Model Number AS-TVBPR
Frequency Range UHF 640 to 664 MHz
Number of Selectable Frequencies Pre-programmed 96 switchable
Case Plastic
Oscillator PLL synthesized
Receiving Mode PLL single channel
Sensitivity Sinad > 20 dB @ Ear.out:500 mV
RF = - 105 dBm
f = 1 kHz
Mod = 14 kHz
Aux Output Level @1k Ohm
300 mV 2RF = - 60 dBm
f = 1 kHz
Mod = 14 kHz
Earphone Output 1.4V @ VR max.
RF = - 60 dBm
f = 1 kHz
Mod = 14 kHz
THD <1% @ Ear. out: 500 mV
Signal / Noise >60 dB @ with AS-TVBPR
f = 1 kHz
MIC IN = - 30 dBv
Frequency Response Aux. 70 Hz to 12 kHz
Ear. 100Hz to 12 kHz
Tone Squelch Frequency 38 kHz
Operating Range High: > 50 M
Low: > 30 M
Earphone Out 3.5 mm TRS
AUX Outputs 1, 3.5 mm TRS
Built-in Speaker 8 Ohm / 1 W
Battery Li-ion 3.7 V 1200 mAh
Battery Life (approx.) 3 to 4 hours
LCD Display Channel
Frequency
Battery
Dimensions (W x D x H) 2.0 x 1.4 x 3.9" (52 x 36 x 99 mm)
Weight 3.5 oz (100 g)
Tabletop Transmitter
Model AS-TXRM
RF Output 10 mW
Display Capability LCD indicates channel and frequency
Channel Selectivity SET
UP
DOWN
Dimensions (W x D x H) 8.3 x 8.5 x 2.0" (21.0 x 21.5 x 5.1 cm)
Weight 2.8 lb (1.3 kg)
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 12.0 x 12.0 x 5.0"
