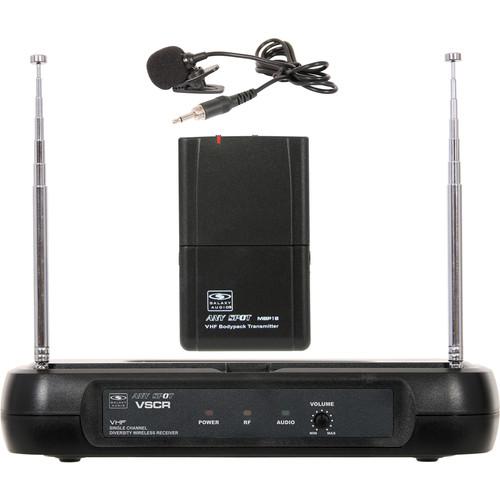

The VSCR/18V Single-Channel VHF Diversity Wireless Lavalier Microphone System from Galaxy Audio is designed for wireless live sound reinforcement. This system operates at 173.8 MHz and features a VSCR receiver unit, a battery-powered MBP18 bodypack transmitter, and a lavalier microphone.

The front of the receiver features power, radio signal, and audio signal indicator lights, as well as a knob for controlling the audio output level. The back of the receiver includes the 12-18 VDC power adapter plug, a 1/4" unbalanced output for sending the audio to a PA system or amplifier, and a mute threshold adjustment knob for managing squelch and signal interference.

The MBP18 bodypack is lightweight at 2.9 oz. It features silent on/off and mic/line switches, and is powered by 2 AA batteries.

The LV13-UBK lavalier microphone features a 9.68mm condenser element with a cardioid polar pattern. It also has a 37" cable, and includes a tie-clip and windscreen.
If you own a Galaxy Audio wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Galaxy Audio VSCR/18V Single-Channel VHF Diversity VSCR/18V-V54 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Galaxy Audio VSCR/18V Single-Channel VHF Diversity VSCR/18V-V54:
System
Type VHF
Frequency 173.8 MHz
Operating Range 150' (50 m)

Actual range depends on RF signals, absorption, reflection, and interference

Audio Frequency Response ±3 dB, 60 Hz to 16 kHz
Total Harmonic Distortion (THD) < 1%, ±30 kHz deviation, 1 kHz tone
Dynamic Range > 90 dB, A-weighted
Operating Temperature 14 to 122°F (-10 to 50°C)
Receiver
Housing Plastic
Antenna Type Diversity telescopic
Maximum Output Level -18 dBV (into 3000 Ω load), ± 30 kHz, 1 kHz
Output Impedance 1 kΩ
Connector 1 x 1/4" phone jack
Sensitivity < -92
Image Rejection > 40 dB
Frequency Response 60 Hz to 60 kHz
Indicators 1 x RF
1 x Audio
1 x Power
Power Supply 12 - 18 VDC, 400 mA
Dimensions (H x W x D) 1.7 x 9.3 x 4.6" (4.4 x 23.5 x 11.8 cm)
Weight 11.3 oz (321 g)
Bodypack Transmitter
Audio Input Level 0 to +20 dBV (max)
Gain Adjustment Range 30 dB
Input Impedance 470 kΩ
Power Requirement 2 x AA alkaline batteries or rechargeable batteries
Battery Life (approx.) 8 hours (Alkaline)
Dimensions (H x W x D) 4.1 x 2.6 x 0.9" (10.5 x 6.5 x 2.3 cm)
Weight 2.9 oz (82.2 g) without batteries
Microphone
Polar Pattern Cardioid
Element 0.38" (9.68 mm) condenser element
Cable Length 37" (94 cm)
Connector 3.5 mm threaded
Packaging Info
Package Weight 2.0 lb
Box Dimensions (LxWxH) 17.0 x 12.0 x 3.0"
