Gefen  HD Video Wall Controller EXT-HD-VWC-144
  • Manufacturer: Gefen
  • Basic description and contents of package
  • Product classification: A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors
  • Safety instructions
  • Startup and operation of the multi viewer processors
  • Tips for setting up your Gefen
  • Settings and expert assistance
  • Contact Gefen service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Gefen HD Video Wall Controller EXT-HD-VWC-144, which address similar problems with connecting and setting up Multi Viewer Processors Gefen.



User manual for the Gefen HD Video Wall Controller EXT-HD-VWC-144

The user manual for the Gefen HD Video Wall Controller EXT-HD-VWC-144 provides necessary instructions for the proper use of the product A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.

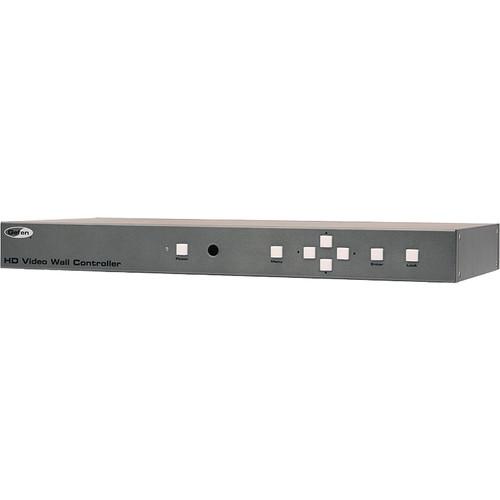

The HD Video Wall Controller from Gefen takes a single HDMI source at up to 1080p resolution and splits it into four quadrants, thus providing a simple way for you to create a 2 x 2 video wall without investing in special video wall-capable displays. There are four HDMI outputs, with each output assigned to one of the four displays in the group. Because the resolution of the incoming signal is effectively quartered, the HD Video Wall Controller can also scale each of the outputs back up to 1080p so that the displays will receive a signal in their native resolution. HDCP is supported, meaning you can even pass copy-protected sources such as Blu-ray DVDs. Video walls are suitable for a host of applications that require an outsized display where using a projector isn't an option, including entertainment, digital signage, retail outlets, clubs, trade shows, control centers, building lobbies, and more.

Both local and remote control is possible with the HD Video Wall Controller. Front panel buttons and an on screen display allow settings to be changed locally at the device. Where line-of-sight communication is possible, there is an IR remote included. An IR extender port means you can even extend the IR signal over wire for non-line-of-sight scenarios by employing an IR extender kit sold separately. For remote and offsite management there is RS-232 and an Ethernet port. The device features a built-in Web server with Telnet and UDP support for control across and IP network or even the Internet.
If you own a Gefen multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gefen HD Video Wall Controller EXT-HD-VWC-144 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gefen HD Video Wall Controller EXT-HD-VWC-144:
Input 1 x HDMI (locking)
Output 4 x HDMI (locking)
HDCP Compliant Yes
Control 1 x RS-232 on DB-9 female
1 x Ethernet on RF-45 (Web server, Telnet, UDP)
1 x IR extender port
IR remote
Front panel buttons for local control
USB 1 x USB mini type B (for future product enhancements)
LED Indicator 1 x Red LED
Power Requirements 12 VDC (locking connector)
Power Consumption Maximum: 24 W
Dimensions 16.9 x 1.7 x 7.9" / 430 x 42 x 200 mm
Weight 7 lb / 3.2 kg
Packaging Info
Package Weight 8.35 lb
Box Dimensions (LxWxH) 20.0 x 12.362 x 4.724"
The user manual for the Gefen HD Video Wall Controller EXT-HD-VWC-144 can be downloaded in .pdf format if it did not come with your new multi viewer processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Gefen users keep a unique electronic library for Gefen multi viewer processorss, where you can use our link to download the user manual for the Gefen HD Video Wall Controller EXT-HD-VWC-144.

The user manual lists all of the functions of the Gefen HD Video Wall Controller EXT-HD-VWC-144, all the basic and advanced features and tells you how to use the multi viewer processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Gefen service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Gefen HD Video Wall Controller EXT-HD-VWC-144. User manuals are also available on the Gefen website under A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.
