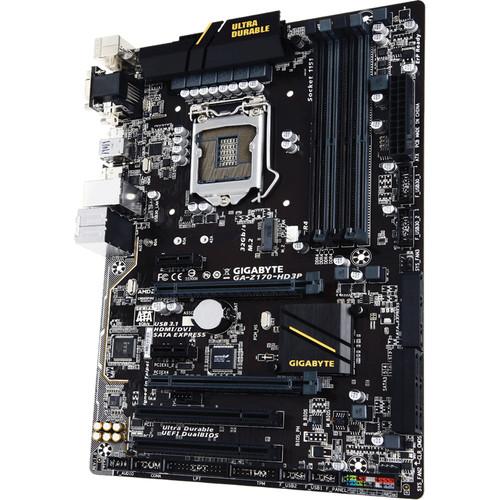

The GA-Z170-HD3P Motherboard (rev. 1.0) from Gigabyte is designed to fit in cases that support the ATX form factor. It supports 6th Generation (Skylake) Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1151 socket, as well as the Intel Z170 Express chipset. This motherboard supports Windows 10, 8.1, and 7, as well as Linux and Win9X/ME/2000/XP with available drivers.
The ATX form factor of the GA-Z170-HD3P has 4 x DIMM slots that can support up to 64GB of non-ECC and ECC (running in non-ECC mode) DDR4 UDIMM RAM, as well as dual memory architecture and Extreme Memory Profile (XMP) memory modules. The supported memory speeds are DDR4 3466 (OC), 3400 (OC), 3333 (OC), 3300 (OC), 3200 (OC), 3000 (OC), 2800 (OC), 2666 (OC), 2400 (OC), and 2133 MHz memory modules. The GA-Z170-HD3P has a total of 6 x SATA III 6 Gb/s ports, 3 x SATA Express ports, 1 x M.2 Socket 3 port, 1 x PCIe 3.0 x16 slot (running at x16) 1 x PCIe x16 slot (running at x4), 2 x PCIe 3.0 x1 slots, 2 x PCI slots, 1 x USB Type-C port (with USB 3.1 support), 1 x USB 3.1 port, 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers), 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers), and 1 x PS/2 ports. Using the Realtek ALC887 codec, it can support 2, 4, 5.1, and 7.1-channel HD audio using its 6 x 3.5mm audio jacks or 1 x S/PDIF jack.
The GA-Z170-HD3P has integrated Intel HD graphics support with 1 x HDMI 1.4a port, 1 x DVI-D port, and 1 x VGA port. It can also support up to three simultaneous displays and can use up to 512MB of shared memory. The HDMI port of the GA-Z170-HD3P can support a maximum resolution of 4096 x 2160 @ 24 Hz, its DVI-D port can support a maximum resolution of 1920 x 1200 @ 60 Hz, and its VGA port also supports a maximum resolution of 1920 x 1200 @ 60 Hz.
The GA-Z170-HD3P has also been designed with a 15µ gold plated CPU socket, audio capacitors, an audio noise guard with LED trace path lighting, Gigabyte's APP center, DualBIOS technology, and more. It is protected by a limited 3-year warranty.
If you own a Gigabyte motherboards and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Gigabyte GA-Z170-HD3P Motherboard (rev. 1.0) GA-Z170-HD3P in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gigabyte GA-Z170-HD3P Motherboard (rev. 1.0) GA-Z170-HD3P:
Specifications
CPU
Supports 6th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1151 package. The amount of L3 cache varies with the CPU
Chipset
Intel Z170 Express Chipset
Memory
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed - Dual channel memory architecture - Support for DDR4 3466 (O.C.), 3400 (O.C.), 3333(O.C.), 3300 (O.C.), 3200 (O.C.), 3000 (O.C.), 2800 (O.C.), 2666 (O.C.), 2400 (O.C.), and 2133 MHz memory modules - Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operates in non-ECC mode) - Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor - Intel HD Graphics support: - 1 x VGA (D-Sub) port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz - 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @ 60 Hz. The DVI-D port does not support D-Sub connection by adapter - 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz and support for HDMI 1.4 - Support for up to 3 simultaneous displays - Maximum shared memory of 512 MB
Audio
Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel sound Support for S/PDIF Out
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express 3.0 x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot - 1 x PCI Express 3.0 x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. The PCIEX1_2 slot will become unavailable when a PCIe x4 expansion card is installed. The PCIEX4 slot will run at up to x1 speed if the PCIEX1_2 slot is populated with an expansion card - 2 x PCI Express 3.0 x1 slots - 2 x PCI slots
Multi-Graphics Technology
Support for 2-Way AMD CrossFire technology
Storage Interface
Chipset: - 1 x M.2 Socket 3 connector - 3 x SATA Express connectors - 6 x SATA 6 Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "1-7 Internal Connectors" for the supported configurations with the M.2, SATA Express, and SATA connectors
USB
Chipset+ASMedia ASM1142 chip: - 1 x USB Type-C port on the back panel, with USB 3.1 support - 1 x USB 3.1 port on the back panel
Chipset: - 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12 V power connector - 1 x M.2 Socket 3 connector - 3 x SATA Express connectors - 6 x SATA III 6 Gb/s connectors - 1 x CPU fan header - 3 x system fan headers - 1 x front panel header - 1 x front panel audio header - 1 x S/PDIF Out header - 2 x USB 3.0/2.0 headers - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module (TPM) header - 1 x Thunderbolt add-in card connector - 1 x serial port header - 1 x parallel port header - 1 x Clear CMOS jumper
Back Panel Connectors
- 2 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x DVI-D port - 1 x HDMI port - 3 x USB 3.0/2.0 ports - 1 x USB 3.1 port - 1 x USB Type-C port, with USB 3.1 support - 1 x RJ-45 port - 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
- System voltage detection - CPU/System temperature detection - CPU/System fan speed detection - CPU/System overheating warning - CPU/System fan fail warning - CPU/System fan speed control
BIOS
- 2 x 64 Mbit flash - Use of licensed AMI UEFI BIOS - Support for DualBIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Features
1. Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications - 3D OSD - @BIOS - AutoGreen - Cloud Station - EasyTune - Easy RAID - Fast Boot - Smart TimeLock - Smart Keyboard - Smart Backup - System Information Viewer - USB Blocker 2. Support for Q-Flash 3. Support for Smart Switch 4. Support for Xpress Install
