User manual for the Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer MIO MVS-4HDMI

The user manual for the Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer MIO MVS-4HDMI provides necessary instructions for the proper use of the product A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.

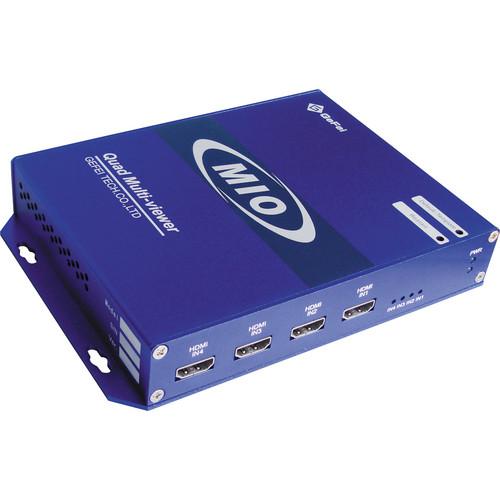

The MIO MVS-4HDMI Mini HDMI Input Multi-Viewer with DVI Output from Gra-Vue is a compact multi-viewer for video and audio monitoring in outside broadcasting and studio environments. It provides four HDMI inputs and one DVI output. The output supports resolutions up to 1080p with selectable embedded audio channel. It is a true multi-view display system with features such as configurable display layout, display template restore, recall, real time audio, video survey, and on-screen alarm, AFD, clock, and logo display, dynamic UMD, and audio UV meter.

With a built-in web server, the MIO MVS-4HDMI multi-viewer allows users to easily remote control the unit via a web browser, with no special software required. The MIO-MVS-4HDMI is a suitable solution for many broadcasting and professional A/V applications, such as control rooms, production, mobile trucks, post-production, and play-out systems.
If you own a Gra-Vue multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer MIO MVS-4HDMI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Gra-Vue MIO MVS-4HDMI Mini HDMI Input Multi-Viewer MIO MVS-4HDMI:
Specifications
    Input 4 x HDMI, Type A
    Video Input Format 720p 50/60
    1080i 50/60
    1080p 50/60
    Supports HDMI signal with 8-channel embedded audio
    Supports HDCP protocol
    Output 1 x DVI-I female, supports HDMI 1.3a protocol
    Output Format 1024 x 768
    1280 x 720
    1280 x 1024
    1366 x 768
    1400 x 1050
    1600 x 900
    1680 x 1050
    1600 x 1200
    1920 x 1080
    Control RJ 45 Ethernet for built-in Web Server, TSL SMNP protocol
    DB15 - RS-232 for TSL protocol, Tally
    Buttons Display templates recall
    Load factory default
    Power 12 VDC, 1 A, with lock ring
    LED Power status
    4 x Input signal locking
    Operating temperature 41 to 77°F (5 to 25°C)
    Storage Temperature 32 to 104°F (0 to 40°C)
    Dimensions 6.0 x 5.0 x 1.1" (15.2 x 12.2 x 3.0 cm)
    Packaging Info
    Package Weight 2.1 lb
    Box Dimensions (LxWxH) 11.1 x 8.9 x 2.2"
