User manual Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108

Operating instructions and pdf manual for use - Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108 User manual, User manual Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108, Grandstream, Networks, GXW4108, 8-Port, FXO, Ana


User manual for Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108

Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108
  • Manufacturer: Grandstream Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - VoIP Accessories
  • Safety instructions
  • Startup and operation of the voip accessories
  • Tips for setting up your Grandstream Networks
  • Settings and expert assistance
  • Contact Grandstream Networks service
  • Troubleshooting
  • Warranty information
  • Price: 349 USD

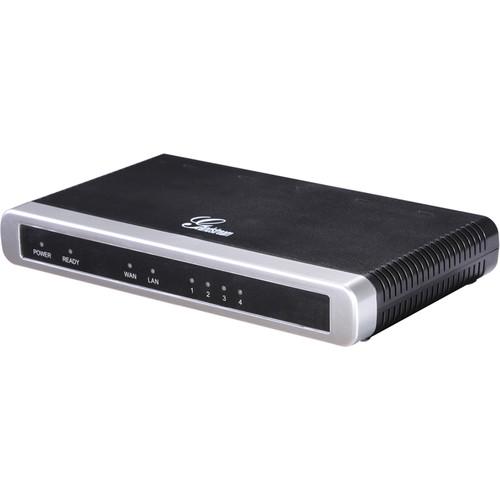

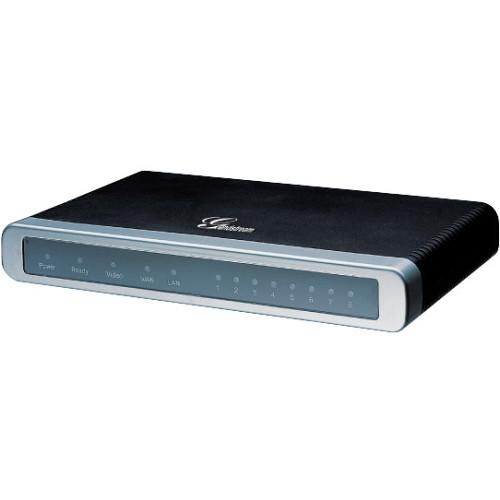

Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108 Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108
Click to enlarge image

We recommend checking out our discussion threads on the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108, which address similar problems with connecting and setting up VoIP Accessories Grandstream Networks.



User manual for the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108

The user manual for the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - VoIP Accessories.

With 8 telephone interface ports, the GXW4108 FXO Analog Gateway from Grandstream Networks helps bridge the gap between traditional telephones and VoIP phone systems. This gateway supports PSTN/PBX analog trunk lines, along with an SIP trunk interface, to effectively convert traditional PSTN-based telephone calls into a VoIP signal to be transmitted over an IP-based connection. In addition to 8 telephone ports, you can also take advantage of a dedicated video surveillance port complete with support for real-time video feeds, CIF resolution, and a 30fps frame rate.
If you own a Grandstream Networks voip accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108:
Interfaces
Voice Ports 8
Telephone Interface FXO, RJ-11
Network Interface 2 x 10/100 Mbps RJ-45 ports
LED Indicators Power, video, network, and line LEDs
Power On/Off Switch Yes
Voice, Fax, Modem, Video
Voice over Packet Capabilities G.168 line echo cancellation
Dynamic jitter buffer
Modem detection and auto-switch to G.711
Voice Compression G.711, G.723, G.729A/B. GSM, G.726 (pending)
Video Surveillance Real-time base line H.264 (CIF resolution, up to 30 fps)
Fax over IP T.38 compliant group 3 fax relay up to 14.4 kbps and auto-switch to G.711 for fax pass-through (pending)
QoS Diffserve, TOS, 802.1 P/Q VLAN tagging
IP Transport RTP/RTCP & PPPoE
Signaling
PSTN Signaling FXO loop start
DTMF Method Flexible DTMF transmission method
User interface of in-audio
RFC2833
SIP info
IP Signaling SIP (RFC 3261)
Multiple Accounts per Box Up to three distinct SIP accounts and profiles
Provisioning TFTP and HTTP; round-robin port scheduling to ensure available lines to access PSTN
Security
Media SRTP
Management Syslog support, HTTPS and telnet (pending), remote management using web browser
Additional Specifications
Caller ID Bellcore type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Polarity Reversal / Wink Yes
EMC FCC Part 68 & part 15B, CE (EN55022, EN55024)
Safety UL
Physical
Power Output: 12 VDC
Input: 100-240 VAC, 50/60 Hz
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Humidity: 10 to 90% non-condensing
Mounting Rack mount, wall mount, desktop
Dimensions 8.9 x 5.3 x 1.4" / 225 x 135 x 35 mm
Weight Not specified by manufacturer
The user manual for the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108 can be downloaded in .pdf format if it did not come with your new voip accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Grandstream Networks users keep a unique electronic library for Grandstream Networks voip accessoriess, where you can use our link to download the user manual for the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108.

The user manual lists all of the functions of the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108, all the basic and advanced features and tells you how to use the voip accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Grandstream Networks service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Grandstream Networks GXW4108 8-Port FXO Analog Gateway GXW4108. User manuals are also available on the Grandstream Networks website under Computers & Solutions - Networking - VoIP Accessories.
