User manual for the Grandstream Networks GXW4232 32-Port High-Density FXS GXW4232

The user manual for the Grandstream Networks GXW4232 32-Port High-Density FXS GXW4232 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - VoIP Accessories.

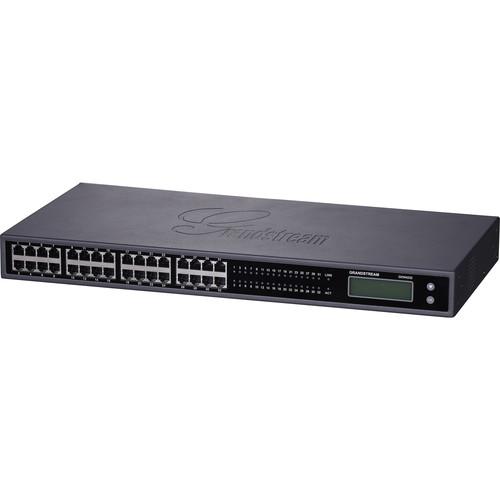

Handle a large quantity of voice calls with the GXW4232 32 Port High Density FXS Analog VoIP Gateway from Grandstream Networks. Along with the integrated FXS telephone ports, this analog VoIP gateway features 50-pin Telco connectors and a single Gigabit Ethernet port. On the front of the gateway you will find a 128 x 32 graphical LCD display complete with support for multiple languages.

Configuration has also been simplified with automated provisioning using TR-069 or an AES-encrypted XML file. Once configured, you can administer up to 4 separate SIP server profiles, giving you the ability to manage configuration and user data for each account individually. The GXW4232 supports both voice and fax with support for a variety of codecs, including G.711, G.723.1, G.726, G.729A/B, iLBC, and T.38 fax.
If you own a Grandstream Networks voip accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grandstream Networks GXW4232 32-Port High-Density FXS GXW4232 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Grandstream Networks GXW4232 32-Port High-Density FXS GXW4232:
Telephone Interface 32 x RJ-11 FXS ports
2 x 50-pin Telco connectors
Network Interface 1 x 10/100/1000 Mbps auto-sensing RJ-45 port
LED Indicators LAN link, LAN activity, connection per telephone port
LCD Display Backlit 128 x 32 graphic LCD display with support for multiple languages
Voice-over-Packet Capabilities Window-based carrier grade line echo cancellation, dynamic jitter buffer, modem detection and auto-switch to G.711
Voice Compression G.711, G.723, G.726, G.729A/B, iLBC
Fax over IP T.38 compliant group 3 fax relay up to 14.4 kbps and auto-switch to G.711 for fax pass-through, fax data pump V.17, V.21, V.27ter, V.29, for T.38 fax relay
QoS (Quality of Service) DiffServ, TOS, 802.1P/Q VLAN tagging
Network Protocols TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP (pending)
DTMF Method Flexible DTMF transmission methods including in-audio, RJC2833, and/or SIP INFO
Signaling SIP (RFC 3261) over UDP/TCP/TLS
SIP Server/Client Requirements 4 x distinct SIP server profiles per system and independent SIP account per telephone port
Provisioning TFTP, HTTP, HTTPS, TR069
Security SRTP, TLS/SIPS, HTTPS, 802.1x
Management Syslog, HTTPS, Web browser, voice prompt, TR-069
Power Supply Output: 12 VDC, 5 A
Input: 100~240 VAC, 50/60 Hz
Environment Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 10 to 90% (non-condensing)
Electrical Protection Over-voltage and over-current protection (ITU-T recommendation K.21, basic test level)
Mounting Desktop and rack mount with front brackets
Short and Long Haul 2 REN, up to 1,500 ft on 24 AWG wire
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy tone, polarity reversal/wink, loop current
Compliance FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B, EN55024, EN61000-3-2, EN6100-3-3, EN60950-1, RoHS
C-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, ITU-T K.21 (Basic Test Level); UL 60950 (power adapter)
Dimensions 17.3 x 7.3 x 1.7" / 440 x 185 x 44 mm
Weight Not specified by manufacturer
