User manual for Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702

Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702
  • Manufacturer: Grandstream Networks
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - VoIP Accessories
  • Safety instructions
  • Startup and operation of the voip accessories
  • Tips for setting up your Grandstream Networks
  • Settings and expert assistance
  • Contact Grandstream Networks service
  • Troubleshooting
  • Warranty information
  • Price: 45 USD

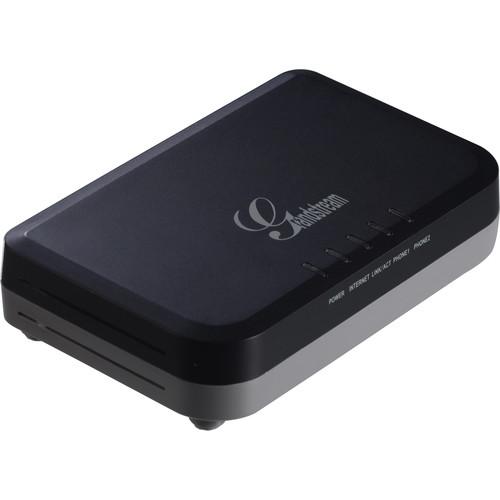

Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702 Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702 Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702
Click to enlarge image

We recommend checking out our discussion threads on the Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702, which address similar problems with connecting and setting up VoIP Accessories Grandstream Networks.



User manual for the Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702

The user manual for the Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - VoIP Accessories.

The compact yet powerful HT702 2-Port Analog Telephone Adapter from Grandstream Networks is designed to give traditional analog telephones the ability to connect to a digital telephone system or a VoIP network. In addition to simply connecting to a VoIP network, this adapter supports a variety of advanced telephony features including caller ID, call waiting, 3-way conference calling, call forward, call transfer, and much more. Comprehensive codec support and enhanced security protection ensure this adapter is compatible with a variety of network configurations, and with a single 10/100 Mbps RJ-45 port you can connect directly to a high-speed router or switch.
If you own a Grandstream Networks voip accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Grandstream Networks HT702 2-Port Analog Telephone Adapter HT702:
Specifications
Interfaces
Telephone Interface 2 x RJ-11 FXS ports
Network Interface 1 x RJ-45 10/100 Mb Base-TX, Full Duplex
LED Indicators Power, Internet, Link/Activity, Phone 1, Phone 2
Reset Button Factory reset button
Voice, Fax, Modem.
Voice over Broadband Capabilities G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, dynamic jitter buffer, advanced line echo cancellation
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4 kbps and auto-switch to G.711 for fax pass-through
Short and Long Haul 5REN: Up to 0.6 mi / 1 km on 24 AWG line
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Polarity Reversal / Wink Yes
Signaling
Network Protocols TCP/UDP/IP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, HTP, TFTP, TELNET, PPPoE, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR069
QoS Layer 2 (802.1q VLAN/802.1q) and layer 3 (ToS, DiffServ, MPLS) QoS
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
Media SRTP
Control TLS/SIPS/HTTPS
Management Syslog support, telnet, remote management using Web browser
Physical
Power Adapter Input: 100-240 VAC/50-60 Hz 0.18 A max
Output: 12 VDC, 0.5 A, UL certified
Environmental Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: 14 to 140°F / -10 to 60°C
Humidity: 10 to 90% (non-condensing)
Short Haul Loop 3REN: Up to 3280.8' (1 km) on 24 AWG line
EMC FCC part 15 Class B, EN55022, EN55024, CISPR22, and CISPR24
Safety EN60950-1 & UL60950-1 (UL only for PSU)
Compliance FCC, CE
Dimensions & Weight
Dimensions 1.1 x 4.5 x 3.0" / 28 x 115 x 75 mm
Weight Not specified by manufacturer
