User manual Grass Valley ADVC110 Bi-Directional Analog / Digital 602029

Operating instructions and pdf manual for use - Grass Valley ADVC110 Bi-Directional Analog / Digital 602029 User manual, User manual Grass Valley ADVC110 Bi-Directional Analog / Digital 602029, Grass, Valley, ADVC110, Bi-Directional, Analog, /, Dig


User manual for Grass Valley ADVC110 Bi-Directional Analog / Digital 602029

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Grass Valley ADVC110 Bi-Directional Analog / Digital 602029
  • Manufacturer: Grass Valley
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Analog & Digital Converters
  • Safety instructions
  • Startup and operation of the analog & digital converters
  • Tips for setting up your Grass Valley
  • Settings and expert assistance
  • Contact Grass Valley service
  • Troubleshooting
  • Warranty information
  • Price: 180 USD
We recommend checking out our discussion threads on the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029, which address similar problems with connecting and setting up Analog & Digital Converters Grass Valley.



User manual for the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029

The user manual for the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029 provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

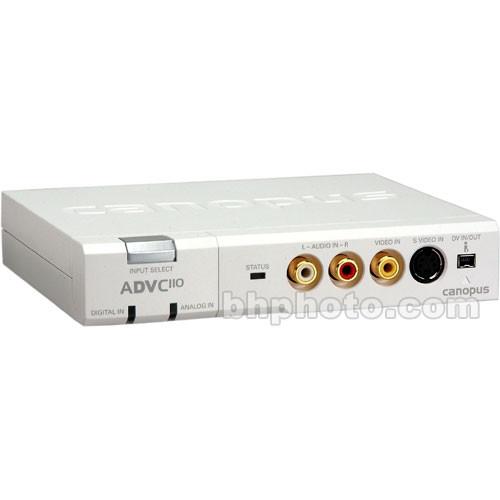

The Grass Valley ADVC110 is a high-quality, bi-directional analog/digital video converter. Conversion is accomplished by transferring media data from an IEEE-1394 FireWire port and outputting through composite and Y/C video and unbalanced stereo audio connections, and vice versa.
If you own a Grass Valley analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Grass Valley ADVC110 Bi-Directional Analog / Digital 602029Download user manual for Grass Valley ADVC110 Bi-Directional Analog / Digital 602029
(PDF file, 1.06 MB)
Additional parameters of the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029:
Input Digital Video Input/Output
1 x 4-pin FireWire (100Mbps)
1 x 6-pin FireWire (100Mbps)

Analog Video Input

1 x S-Video (4-pin miniDIN)
1 x composite (RCA)

Analog Audio Input (unbalanced)
1 x stereo (RCA)

Output Analog Video Output
1 x S-Video (4-pin miniDIN)
1 x composite (RCA)

Analog Audio Output (unbalanced)

1 x stereo (RCA)
Formats Video Formats
NTSC: 720x480 @ 29.97fps
PAL/SECAM: 720x576 @ 25fps

Audio Formats
2-channel 48kHz 16-bit
2-channel 32kHz 12-bit

Conversion IEEE-1394 Digital A/V to Analog A/V Composite and Y/C video and stereo unbalanced audio
System Requirements Windows PC:
Windows 2000 (requires Service Pack 3 or higher, Windows XP Home, Windows XP Professional (Service Pack 1 or higher), Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Business, Windows Vista Ultimate (Service Pack 1 or higher), Windows 7 Home Premium, Windows 7 Professional, Windows 7 Ultimate, DirectX 8.0 or higher

Mac:
Mac OS X (10.2.7/10.2.8/10.3/10.4.x/10.5/10.6)
Control Power On/Off
Power Source IEEE 1394 bus powered or DC5V from EIAJ#2 DC jack
Dimensions (WxDxH) 5.75 x 4.72 x 1.07" (14.6 x 12 x 27.2cm)
Weight 2.2 lbs (1kg)
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 9.134 x 6.772 x 2.913"
The user manual for the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029 can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Grass Valley users keep a unique electronic library for Grass Valley analog & digital converterss, where you can use our link to download the user manual for the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029.

The user manual lists all of the functions of the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Grass Valley service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Grass Valley ADVC110 Bi-Directional Analog / Digital 602029. User manuals are also available on the Grass Valley website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
