User manual for the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659

The user manual for the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Medium Format Cameras.

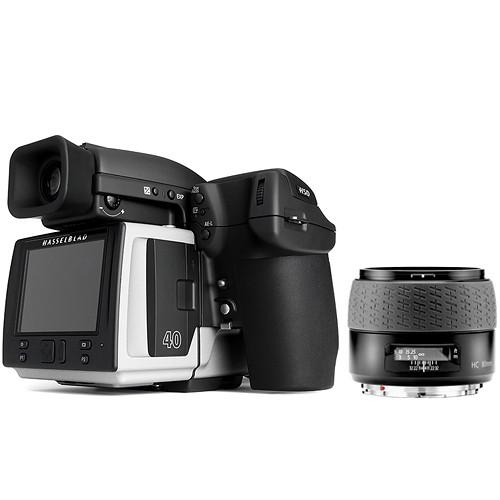

The H5D-40 Medium Format DSLR Camera with 80mm f/2.8 HC AF Lens from Hasselblad combines the 40MP model of the new Hasselblad H system of medium format DSLR cameras with the standard 80mm f/2.8 HC lens. The H5D-40 model contains a 32.9 x 43.8 mm 40MP (7304 x 5478) CCD sensor. With its large light path, it creates high resolution images with great clarity and color rendering without gradation breaks. Hasselblad's Natural Color Solution (HNCS) creates accurate colors, with natural skin tones and an ability to capture specific product colors and tones that are difficult to reproduce. The improved Hasselblad Image Processing Architecture ensures fast performance and transfer speed.
If you own a Hasselblad medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659:
Camera Type Large sensor medium format DSLR
Imaging
Resolution 40MP (5478 x 7304 pixels)
Sensor 32.9 x 43.8 mm
Pixel Size 6.0 μm
Bit Depth 16-bit
File Formats Lossless compressed Hasselblad RAW 3FR
1/4 Resolution print ready JPEG files with Hasselblad natural Colors
File Size RAW 3FR capture 50MB on average
TIFF 8-bit: 120MB
Color Management System Hasselblad Natural Color Solution
Storage Type CF card type U-DMA or tethered to Mac or PC
Storage Capacity 8GB CF card: 150 images on average
Shooting Modes Single Shot
Capture Rate 1.1 sec per capture
50 captures per minute
Histogram Yes
Filter IR filter mounted on CCD sensor
Shutter Electronic lens shutter
Focus Autofocus metering with passive central cross-type sensor True Focus with Immediate Focus Confirm (IFC) Instant manual focus override Metering range EV 1 to 19 at ISO 100
Lens Compatibility Hasselblad HC/HCD lens line
Exposure Control
Shutter Speeds 256 - 1/800 sec
ISO Range ISO 100, 200, 400, 800 and 1600
Metering Options Spot
Center Weighted
CenterSpot
Metering range:
Spot: EV2 - 21
Center weighted: EV1 - 21
CenterSpot: EV1 - 21
Remote Control Yes
Flash
External Flash Connection Yes
Max Sync Speed Flash can be used at all shutter speeds.
Flash Control Automatic TTL center weighted system
Uses built-in flash or flashes compatible with SCA3002 (Metz)
Output can be adjusted from -3 to +3EV
For manual flashes a built-in metering system is available
Viewfinder/Display
Display 3.0" TFT type, 24-bit color, 460,320 pixels
Histogram Yes
Connectivity/System Requirements
Connectivity FireWire 800 (IEEE 1394b) Thunderbolt supported via optional adapters
System & Software Requirements Macintosh: OS X 10.5 and later
Windows: XP (32 and 64 bit), Vista (32 and 64 bit), Windows 7 (32 and 64 bit).
Software Phocus for Mac and Windows (included) and Adobe Photoshop Lightroom 5(included)
Power
Battery Type Rechargeable Li-ion battery (7.2VDC, 2900mAh).
Physical
Operating Temperature 32 - 113°F (0 - 45°C)
Dimensions (WxHxD) 6.02 x 5.16 x 8.07" (15.3 x 13.1 x 20.5 cm)
Weight 5.05 lb (2.29 kg) with HC80 lens, battery and CF card
Lens
Focal Length 82.3mm
Aperture Maximum: f/2.8 Minimum: f/32
Camera Mount Hasselblad H
Angle of View 46°
Minimum Focus Distance 2.30' (0.70 m)
Maximum Image Scale 1:6.5
Coverage Area 14.1 x 10.6" (36 x 27 cm)
Groups/Elements 6/6
Shutter Type Electronic
Flash Synchronization Shutter Speed up to 1/800
DOF Scale Yes
Distance Scale Yes
Autofocus Yes
Tripod Collar No
Filter Thread Front: 67mm
Dimensions (Ø x L) 3.31 x 2.76" (8.4 x 7.0 cm)
Weight 16.76 oz (475 g)
Packaging Info
Package Weight 9.05 lb
Box Dimensions (LxWxH) 12.6 x 11.6 x 7.7"
The user manual for the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659 can be downloaded in .pdf format if it did not come with your new medium format cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Hasselblad users keep a unique electronic library for Hasselblad medium format camerass, where you can use our link to download the user manual for the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659.

The user manual lists all of the functions of the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659, all the basic and advanced features and tells you how to use the medium format cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Hasselblad service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Hasselblad H5D-40 Medium Format DSLR Camera with 80mm 3013659. User manuals are also available on the Hasselblad website under Photography - Digital Cameras - Medium Format Cameras.
