User manual for the Hercules DJ Control AIR S Series 2-Channel USB DJ 4780774

The user manual for the Hercules DJ Control AIR S Series 2-Channel USB DJ 4780774 provides necessary instructions for the proper use of the product Pro Audio - DJ Equipment - DJ Controllers.

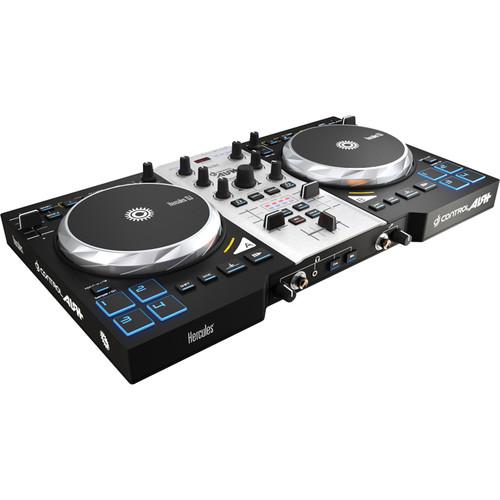

The DJ Control AIR+ S Series from Hercules is a 2-channel USB DJ software controller for mobile DJs, home DJs, and enthusiasts that establishes MIDI control over 2 virtual decks using the included DJUCED DJ software. The unit allows you to mix, scratch, and manipulate audio files from your Mac or Windows computer.

The unit features a unique infrared AIR Control MIDI system, allowing MIDI manipulation over effects, and other features without any physical contact. You simply wave your hands in front of the sensor and manipulate audio based on the distance and velocity of your hands. The unit also includes a pair of 5.9" rubberized jog wheels for scratching, cueing, nudging, and pitch bending. A set of tempo sliders allow for beat matching and a bank of FX buttons enable triggering effects.

The DJ Control AIR+ S Series also features 8 velocity sensitive backlit illuminated pads for triggering samples and hot cues, 3 EQ knobs per channel for mixing, a vinyl button for switching between jog and scratch mode, a microphone button for engaging the 1/4" microphone input, a record button for recording the mix to software, and a MAGIC button for creating loops that can be triggered using the four pads per channel.

A crossfader with adjustable curve allows for either mix-mode or scratch-mode operation. The built-in gain knobs can be toggled to function as Low/High pass filters with the push of the mode button. The unit features audio outputs for connection to sound systems/powered speakers and a separate headphone output for monitor cuing. The unit is USB powered and comes with a USB cable.
If you own a Hercules dj controllers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Hercules DJ Control AIR S Series 2-Channel USB DJ 4780774 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Hercules DJ Control AIR S Series 2-Channel USB DJ 4780774:
Input Connections Mic In: 1/4" balanced
Output Connections
2 x RCA (line)
1/8" (3.5 mm) stereo output jack for channels 1 and 2
1/4" (6.35 mm) stereo monitor jack
1/8" (6.35 mm) stereo output for headphone monitoring channels 3 and 4
USB cable attached
Infrared Long range sensor > 11.8" / 30 cm
View meter for AIR sensor
Rotation Jog Wheels: > 750 steps per rotation
Sample Rate (Audio) 16-bit / 44.1 kHz
THD + N Line Outputs (1/8", RCA): > -80 dB (A-weighted)
Headphone Output (1/8", 1/4"): > -80 dB (A-weighted)
Maximum Output Level Channel 1-2 (1/8" Stereo Jack and RCA): +6 dBu into > 1 kOhms
Channel 3-4 (Headphone 1/8" Stereo Jack): +4 dBu into >32 ohms
Minimum System Requirements
Microsoft Windows Vista, 7, 8
Mac OS 10.7, 10.8, or 10.9 on Core Duo Mac
Operating System: 32-bit or 64-bit
Computer with 1.6 GHz CPU or faster Intel Core 2 Duo or AMD 64-bit
2 GB RAM or more
High Speed USB 2 or USB 3 port
100 MB available hard disk space
CD/DVD-ROM drive
Internet access
Active speakers and headphones
Dimensions 17.7 x 10.0" / 45.0 x 25.4 cm
Jog Wheels Base: 5.9" / 15 cm ⌀
Jog Wheel Top: 5.1" / 13 cm ⌀
Weight 4.2 lb / 1.9 kg
Packaging Info
Package Weight 7.0 lb
Box Dimensions (LxWxH) 20.7 x 12.3 x 4.2"
