User manual for the HK AUDIO Lucas Nano 600 Portable PA System LUCASNANO600

The user manual for the HK AUDIO Lucas Nano 600 Portable PA System LUCASNANO600 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

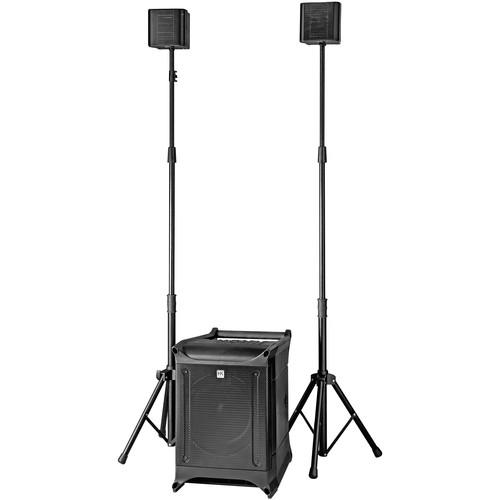

The Lucas Nano 600 Portable PA System from HK AUDIO is a crossover PA system featuring a 10" subwoofer and 1" tweeter powered enclosure, and a twin 2-way satellite speaker, which may be deployed either as a space-saving mono column or as a stereo system with detailed spatial resolution. In addition, two LUCAS NANO 600s can be paired to create a more powerful PA. This flexibility makes LUCAS NANO 600 an alternative to conventional full-range cabinets and columnar speaker systems for many applications.

The MultiCell Transformer technology helps maximize sound pressure gain, improve directivity and minimize high-frequency distortion. The system has a lightweight subwoofer housing with the bass response of a heavy wood enclosure.
If you own a HK AUDIO portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HK AUDIO Lucas Nano 600 Portable PA System LUCASNANO600 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HK AUDIO Lucas Nano 600 Portable PA System LUCASNANO600:
Specifications
    Satellite Speaker (each)
    Maximum Sound Pressure Level (SPL) Satellite Twin:
    Peak: 130 db
    @ 10% THD: 124 dB
    Satellite Single:
    Peak: 124 dB
    @ 10% THD: 119 dB
    Dispersion Satellite Twin: Mid/High Unit, Horizontal/Vertical: 90° x 60°
    Satellite Single: Mid/High Unit, Horizontal/Vertical: 90° x +10/-45°
    Output Power Satellite Twin: 160 W @ 4 ohms
    Satellite Single: 80 W @ 8 ohms
    Frequency Response Satellite Twin: 175 Hz to 19 kHz
    Satellite Single: 175 Hz to 22 kHz
    Speaker Low/Mid Speaker
    Satellite Twin: 2 x 4.5"
    Satellite Single: 1 x 4.5"
    Mid/High Speaker
    Satellite Twin: 2 x 1"
    Satellite Single: 1 x 1"
    Dimensions Satellite Twin: 5.7 x 11.0 x 5.3" (14.5 x 28.0 x 13.5 cm)
    Satellite Single: 5.7 x 5.7 x 5.3" (14.5 x 14.5 x 13.5 cm)
    Weight Satellite Twin: 5.3 lb (2.4 kg)
    Satellite Single: 2.6 lb (1.2 kg)
    Subwoofer
    Maximum Sound Pressure Level (SPL) Peak: 123 dB
    @ 10% THD: 120 dB
    Output Power 300 W @ 8 ohms / 2 x 80 W @ 8 ohms
    Frequency Response 43 Hz to fx
    Speaker LF: 1 x 10"
    Dimensions 13.8 x 19.3 x 18.5" (35 x 49 x 47 cm)
    Weight 30.6 lb (13.9 kg)
    General
    Current Peak:
    220 - 240 VAC, 3 A
    100 - 120 VAC, 6 A
    Inrush:
    70 A @ 120 V and 230 V
    Consumption: (pursuant to EN 60065)
    220 - 240 VAC, 0.7 A
    100 - 120 VAC, 1.5 A
    Packaging Info
    Package Weight 54.0 lb
    Box Dimensions (LxWxH) 29.0 x 24.5 x 18.2"
