User manual HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY

Operating instructions and pdf manual for use - HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY User manual, User manual HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY, HK, AUDIO, SOUNDCADDY, ONE, PA, System, 4-Ch


User manual for HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY

HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY
  • Manufacturer: HK AUDIO
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your HK AUDIO
  • Settings and expert assistance
  • Contact HK AUDIO service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY, which address similar problems with connecting and setting up Portable PA Systems HK AUDIO.



User manual for the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY

The user manual for the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

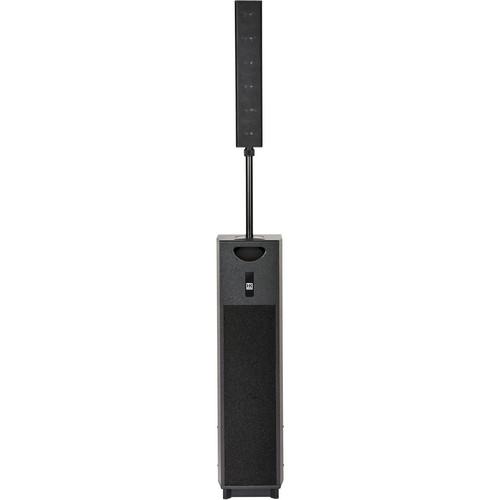

The SOUNDCADDY ONE PA System and 4-Channel Mixer from HK Audio is an all-in-one PA system consisting of three 6-inch subwoofers and six 3.5-inch mid/high speakers, all of which fit into the main body caddy for storage and transport. It is capable of up to 600-watts of power output, and features a built-in 4 channel mixer as well as integrated wheels, handles, and protective edge guards.

The mid/high speakers can be mounted on the system's 2.1-meter pneumatic pole, which extends with the touch of a button. The SOUNDCADDY has two mono channels (Mic in/ Combi in) with Volume and Tone knobs and a Neutrik combo port for XLR and 1/4' cords. Two stereo channels (Line In/Aux In) sport Volume and Contour knobs. One is equipped with two Neutrik combo inputs; the other with RCA connectors and a 3.5-mm mini jack plug. The XLR Line Out sends the signal to a second SOUNDCADDY ONE system in mono or stereo mode. The RCA Recording Out serves monitoring purposes and to send the signals to further devices. It also offers a separate Bass knob for the subwoofer and a Power On/Limiter LED for visual monitoring.
If you own a HK AUDIO portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY:
Maximum SPL 120 dB @10% THD
Peak: 125 dB
Calculated: 125 dB
Output Power System: 600 W Class D
Frequency Response 49 Hz to 18 kHz, +/- 3 dB
42 Hz to 18 kHz, -10 dB
Connections Integrated 4-channel mixer
Speakers LF Speaker: 3x 6" (152.4 mm)
Mid/High Speaker: 6x 3.5" (88.9 mm)
Directivity 70° x 15°
Crossover Frequency 150 Hz, 12 dB/octave
Enclosure 5/8" (15 mm), 13-ply (plywood)
Input Sensitivity Mic In Combo XLR/TRS: -32 dBu @ 1 kHz
Combo In XLR: -32 dBu @ 1 kHz
Mono 1/4" Instrument In: -10 dBu @ 1 kHz
Line in Left: Center Click (Mono): +10 dBu @ 1 kHz
Line in Left: Max (Mono): +4 dBu @ 1 kHz
Line in Left: Center Click (Stereo): +4 dBu @ 1 kHz
Line in Left: Max (Stereo): +0 dBu @ 1 kHz
Line in Right: Center Click (Mono): +10 dBu @ 1 kHz
Line in Right: Max (Mono): +4 dBu @ 1 kHz
Aux In: RCA Connector: +2 dBu @ 1 kHz
Aux In: 3.5 mm & 1/4" Jack: -13 dBu @ 1 kHz
Line Out Level XLR: +10 dBu @ 1 kHz
Rec Out Level: +10 dBu @ 1 kHz
Dimensions (WxHxD) 10.6 x 40.2 x 13.4" (27 x 102 x 34 cm)
Weight 63.9 lb (29 kg)
Packaging Info
Package Weight 80.5 lb
Box Dimensions (LxWxH) 44.0 x 17.0 x 15.0"
The user manual for the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other HK AUDIO users keep a unique electronic library for HK AUDIO portable pa systemss, where you can use our link to download the user manual for the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY.

The user manual lists all of the functions of the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from HK AUDIO service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the HK AUDIO SOUNDCADDY ONE PA System and 4-Channel Mixer SOUNDCADDY. User manuals are also available on the HK AUDIO website under Pro Audio - Live Sound - Portable PA Systems.
