User manual for the HP DreamColor LP2480zx Professional LED Backlit GV546A4#ABA
The user manual for the HP DreamColor LP2480zx Professional LED Backlit GV546A4#ABA provides
necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

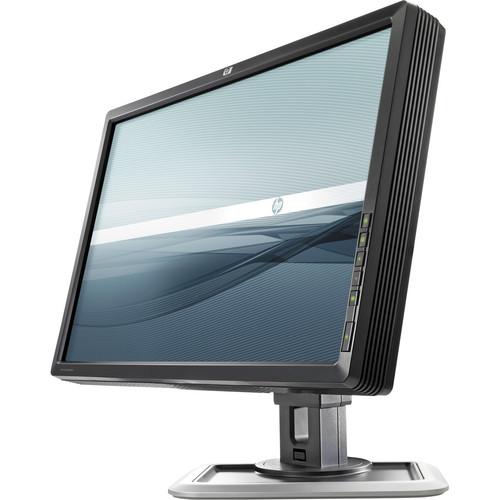

The DreamColor LP2480zx Professional LED Backlit 24" IPS LCD Monitor from HP features a 24-inch viewable image area along with a native resolution of 1920 x 1200, a 6 ms gray to gray response time, and a 1,000:1 contrast ratio. This display utilizes IPS technology, providing enhanced 178° horizontal and vertical viewing angles. Additionally, the display supports a maximum brightness of 250 cd/m², and a minimum brightness of 50 cd/m².
This color-critical display comes complete with 100% Adobe RGB and sRGB color coverage and supports over 1 billion colors. You also benefit from an enhanced look up table with 12 bits per entry and support for up to 1,024 entries per table.
This HP DreamColor display supports a variety of OSD functions to simplify the process of adjusting the display settings. Supported OSD functions include color space, luminance, whitepoint, primaries and gamma information, reset to factory calibration, reset to last calibration, black level, overdrive, custom scaling, PIP controls, language, power saver, power on recall, bezel button LED, auto EDID update, and much more.
Setup and configuration of this HP DreamColor display has also been simplified as it supports a variety of connections including DVI-I, DisplayPort 1.1, HDMI 1.3, component, S-video, and composite inputs. Once configured, the monitor can be swiveled, tilted, pivoted, and raised or lowered to provide enhanced viewing comfort.
Please note: It is not possible to perform DreamColor color management on this monitor with a YCBCR (YUV) input signal. To perform DreamColor color management with a YCBCR input signal, the signal must be converted to a digital RGB signal using separate hardware such as an SDI converter.
|
If you own a HP computer monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the HP DreamColor LP2480zx Professional LED Backlit GV546A4#ABA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the HP DreamColor LP2480zx Professional LED Backlit GV546A4#ABA:
| Display Size | 24.0" / 61.0 cm | | Panel Type | IPS | | Aspect Ratio | 16:10 | | Viewing Angles | Horizontal: 178°
Vertical: 178° | | Brightness | Maximum White Luminance: 250 cd/m²
Minimum White Luminance: 50 cd/m²
Black Luminance: 0.05 cd/m² (typical black level at minimum white level) | | Contrast Ratio | 1,000:1 typical | | Response Rate | 12 ms typical (rise+fall, full black-to-white-to-black)
6 ms typical (gray to gray) | | Pixel Pitch | 0.270 mm | | Backlight Life | 50,000 hours | | Backlight Type | RGB LEDs | | Gamma | Programmable from "gamma" value of 1.0 to 3.0 | | Color Gamut | Native gamut approximately 133% NTSC (typical in CIE 1976 u'v' space) | | Color Accuracy | 100% Adobe RGB coverage (typical)
100 sRGB coverage (typical) | | Display Colors | Over 1,000,000,000 colors in native mode | | Lookup Table | 12 bits per entry, 1024 entries per table | | Internal Processing | Minimum 10 bits/color throughout video processing pipeline | | Bezel Width | 0.71" / 1.8 cm | | OSD Controls | Buttons or Switches
Function Select, Input Select/Exit OSD, Plus (+), Minus (-), Menu/Select, Power
OSD Languages
Chinese (simplified), Dutch, English, Spanish, French, Italian, Japanese
OSD Functions (partial list)
Color Space, Luminance, Whitepoint, Primaries and Gamma Information, Reset to Factory Calibration, Reset to Last Calibration, Black Level, Overdrive, Custom Scaling, PIP Controls, Language, Power Saver, Power on Recall, Bezel Button LED, Auto EDID Update, Sleep Timer, Function (button) Control, Monitor Status Message, Warning Messages, Calibration Limit, OSD Button Labels, Mode Display, Video Input Control, Input Auto-Switching, Information (menu), Factory Reset., Intuitive OSD supporting key features of monitor | | Signal Frequency | Horizontal
24-80 kHz
Vertical
47-61 Hz (No internal frame rate conversion at 48, 50, and 59.94/60 Hz) | | Native Resolution | 1920 x 1200 pixels | | Preset Graphic Timing Modes | 640 x 480 @ 60 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 768 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz
1600 x 1000 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
1920 x 1200 @ 24 Hz ; 48 Hz, and @ 60 Hz (CVT and CVT-R timings)
2048 x 1080 @ 48 Hz and 60 Hz
2048 x 1200 @ 48 Hz and 60 Hz | | SDTV/HDTV Timing Modes | 720 x 480 @ 60 Hz (interlaced)
720 x 480 @ 60 Hz (progressive)
720 x 576 @ 50 Hz (interlaced)
720 x 576 @ 50 Hz (progressive)
1280 x 720 @ 50 Hz (progressive)
1280 x 720 @ 60 Hz (progressive)
1920 x 1080 @ 50 Hz (interlaced)
1920 x 1080 @ 60 Hz (interlaced)
1920 x 1080 @ 50 Hz (progressive)
1920 x 1080 @ 60 Hz (progressive) | | Maximum Pixel Clock Speed | 200 MHz on DVI-I (analog), HDMI, and DisplayPort inputs; 165 MHz max on DVI-I digital inputs | | User Programmable Modes | 20 additional user-programmable timings may be stored | | Color Space | 7 color space presets; all user-programmable six factory programmed: sRGB, Rec. 709, Rec. 601, Adobe RGB, DCI-P3 emulation (97%), full gamut | | Anti-Glare Glass | Yes | | Anti-Static | Yes | | Default Color Temperature | 6,500 K | | Video Inputs | 2 x DVI
1 x DisplayPort 1.1
1 x HDMI 1.0 with HDCP support
1 x Component (YPbPr)
1 x S-video
1 x Composite | | USB Hub | Self Powered USB 2.0 Hub
1 x upstream, 4 x downstream USB 2.0 ports | | Analog Input | VESA VSIS (0.7V black-to-white, nom.) on DVI-I inputs | | Analog Input Impedance | 75 ohms, all analog inputs | | Sync Input | TTL (analog input section of DVI-I inputs) | | Cables | 1 VGA to DVI-I, 1 DVI-D to DVI-ID 1 DisplayPort, 1 HDMI, 1 USB | | Cable Length | 6.6 ft / 2.0 m (all) | | Power | AC Line Voltage: 100-240 VAC
Frequency: 50/60 Hz
Typical Power Consumption: 42 W (120 VAC, no USB devices connected, and sRGB Color Space preset)
Maximum Power Consumption: 90 W
Power Saving: 10 W in "sleep" mode; 3W in "off" mode
Power Cable Length: 6.2 ft / 1.9 m | | Tilt | -5 to +35° | | Swivel | -45 to +45° | | Height Adjustable | 3.94" / 10.0 cm range | | Pivot Rotation | Yes, 90° | | Environmental Conditions | Operating Temperature: 41 to 95°F / 5 to 35°C
Non-Operating Temperature: -4 to 140°F / -20 to 60°C
Operating Humidity: 20 to 80% non-condensing
Non-Operating Humidity: 5 to 95% (101.6°F / 38.7°C max wet bulb temperature)
Operating Altitude: 0 to 12,000 ft / 3,650 m
Non-Operating Altitude: 0 to 40,000 ft / 12,000 m | | VESA Compatibility | Yes (standard 4 hole pattern, 100 mm) | | Security Lock-Ready | Yes | | Dimensions (HxWxD) | Without Stand: 14.8 x 22.2 x 3.9" / 37.6 x 56.4 x 9.9 cm
With Stand: 20.7 x 22.2 x 10.0" / 52.6 x 56.4 x 25.4 cm | | Weight | 18.7 lb / 8.5 kg | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 22.2 x 20.7 x 10.0" | |
