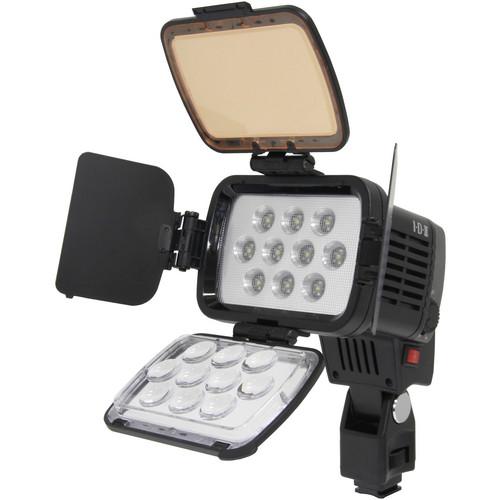

The IDX X10-Lite-S Hi-Performance LED On-Camera Light mounts to a standard accessory shoe on your camera, and provides a powerful beam that can be dimmed from 100 to 0% without affecting the beam quality. The LEDs in the unit are rated to last up to 50,000 hours, and the unit powers from available Sony NP-F970 type batteries (not included). You can also power the unit from a 6 to 17 volt DC source using the included D-Tap connector.
A sealed, scratch resistant lens protects the LEDs, and they deliver 1450 lux at 1m, with a 90° beam spread. This allows you to light a relatively large area from an on-camera light. For a tighter beam, you can flip up the bottom barndoor, which will adjust the beam spread to 45°, giving you more control, and less spill. The LEDs produce light with a color temperature of 4500K, which is roughly halfway between daylight and tungsten values. The barndoors incorporate a color correction filter that you can fold in front of the light to convert the color temperature from 4500K to 3200K.
|
If you own a IDX System Technology on camera lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IDX System Technology X10-Lite-S Hi-Performance LED X10LITE-S in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the IDX System Technology X10-Lite-S Hi-Performance LED X10LITE-S:
| Lamp Type | 10 x LED | | Color Temperature | 4500K
3200K (with included filter) | | Brightness | 1450 lx @ 1 m | | Beam Angle | Standard: 90°
Spotlight: 45° | | Dimmer Response | 100 to 0% | | Mount Type | Cold Shoe | | Input Voltage | 6.0 to 17.0 VDC | | Power Consumption | 16W Max. | | Power Connector | D-Tap
Sony NP-F970 type | | Dimensions (WxDxH) | 4.25 x 5.07 x 5.90" (108 x 129 x 150 mm) | | Weight | Approx. 1.03 lb (470 g) | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.0 x 6.1 x 5.0" | |
