ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S
  • Manufacturer: ikan
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - On Camera Monitors
  • Safety instructions
  • Startup and operation of the on camera monitors
  • Tips for setting up your ikan
  • Settings and expert assistance
  • Contact ikan service
  • Troubleshooting
  • Warranty information
ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S
Click to enlarge image

We recommend checking out our discussion threads on the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S, which address similar problems with connecting and setting up On Camera Monitors ikan.



User manual for the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S

The user manual for the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S provides necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

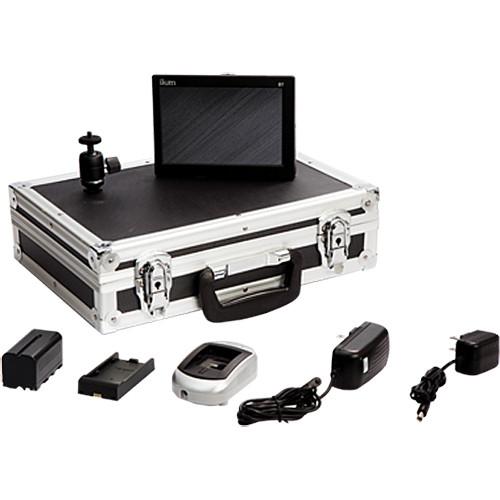

This ikan D7w Deluxe Kit includes the D7w 7" monitor, Sony L Series battery plate, battery, charger, shoe mount, black and silver hard case, and power supply.

The D7w features a 1280 x 800 HD resolution and 3G-SDI and HDMI inputs. It offers a comprehensive set of monitoring tools, including the advanced Waveform, RGB Parade, and Vectorscope, for setting up and fine-tuning your shots. A headphone output is available on the bottom for monitoring audio while you shoot.

All the controls are located at the rear upper edges and include a rotary navigation wheel, input button for switching between live inputs, and four function-assignable buttons. The included battery plate is interchangeable with other supported ikan plates.
If you own a ikan on camera monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S:
Specifications
    Monitor
    Display LCD IPS, 7" screen (17.8 cm) (diagonally)
    Resolution 1280 x 800
    Brightness 400 nit
    Contrast Ratio 800:1
    Inputs 1x 3G/HD/SD-SDI
    1x HDMI
    Outputs 1x 3G/HD/SD-SDI loop-out
    1x 3.5 mm headphone jack
    Viewing Angle 178 x 178°
    Aspect Ratio 16:10
    Supported Resolutions 3G-SDI:
    1920 x 1080p @ 50, 59.94, 60 Hz

    HD-SDI:
    1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz
    1920 x 1080i @ 50, 59.94, 60 Hz
    1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz
    1280 x 720p @ 50, 59.94, 60 Hz

    SD-SDI:
    720 x 576i @ 50 Hz
    720 x 480i @ 60 Hz

    HDMI:
    1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz
    1920 x 1080i @ 50, 59.94, 60 Hz
    1920 x 1080psf @ 24, 25, 29.97, 30 Hz
    1280 x 720p @ 50, 59.94, 60 Hz
    720 x 576i/@ 50 Hz
    720 x 480i/p @ 59.94, 60 Hz
    Response Time 32 ms
    Pixel Pitch 0.117 x 0.117 mm
    Power Consumption 6.7 W
    Color System PAL, NTSC, SECAM (Auto-Detected)
    Input Voltage 7-12 VDC
    Build Plastic front, aluminum back
    Operating Temperature 14 to 140°F (-10 to 60°C)
    Dimensions 7 x 4.9 x 1" (17.8 x 12.4 x 2.5 cm)
    Weight 1 lb (0.45 kg)
    Packaging Info
    Package Weight 7.2 lb
    Box Dimensions (LxWxH) 16.8 x 13.1 x 4.5"
    Item Demo
    The user manual for the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S can be downloaded in .pdf format if it did not come with your new on camera monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ikan users keep a unique electronic library for ikan on camera monitorss, where you can use our link to download the user manual for the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S.

    The user manual lists all of the functions of the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S, all the basic and advanced features and tells you how to use the on camera monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ikan service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ikan D7w Waveform Field Monitor Deluxe Kit with L D7W-DK-S. User manuals are also available on the ikan website under Professional Video - Monitors - On Camera Monitors.
