User manual Ikegami ICD-38 High Performance Monochrome Camera ICD-38

Operating instructions and pdf manual for use - Ikegami ICD-38 High Performance Monochrome Camera ICD-38 User manual, User manual Ikegami ICD-38 High Performance Monochrome Camera ICD-38, Ikegami, ICD-38, High, Performance, Monochrome, Camera, ICD-


User manual for Ikegami ICD-38 High Performance Monochrome Camera ICD-38

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

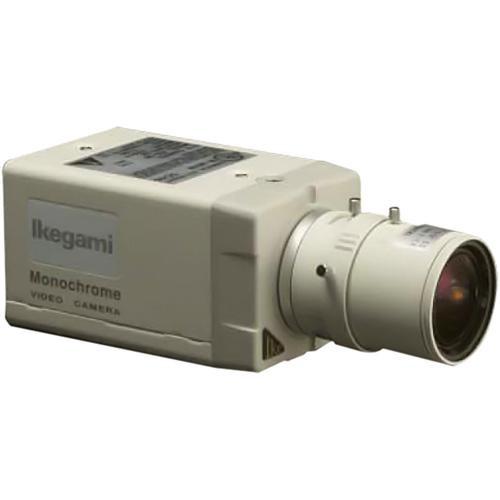

Ikegami ICD-38 High Performance Monochrome Camera ICD-38
  • Manufacturer: Ikegami
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your Ikegami
  • Settings and expert assistance
  • Contact Ikegami service
  • Troubleshooting
  • Warranty information
  • Price: 43 USD
We recommend checking out our discussion threads on the Ikegami ICD-38 High Performance Monochrome Camera ICD-38, which address similar problems with connecting and setting up Wired Analog & HD Cameras Ikegami.



User manual for the Ikegami ICD-38 High Performance Monochrome Camera ICD-38

The user manual for the Ikegami ICD-38 High Performance Monochrome Camera ICD-38 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

The Ikegami ICD-38 is a high-performance monochrome camera employing a 1/3" OCML (On Chip Micro Lens) CCD sensor to deliver high resolution and high sensitivity. In addition the ICD-38 features a switchable BLC (Back Light Compensation) to ensure consistently stable image reproduction in situations involving back lit situations. The auto iris circuitry is selectable between video and DC iris allowing the use of either video or DC drive lens, and employs line lock with phase adjustment to facilitate multiple camera switching through a single video switcher.
If you own a Ikegami wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Ikegami ICD-38 High Performance Monochrome Camera ICD-38 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Ikegami ICD-38 High Performance Monochrome Camera ICD-38Download user manual for Ikegami ICD-38 High Performance Monochrome Camera ICD-38
(PDF file, 0.11 MB)
Additional parameters of the Ikegami ICD-38 High Performance Monochrome Camera ICD-38:
Specifications
    Signal System NTSC
    Image Sensor 1/3" Interline Transfer CCD
    Resolution 512 x 492
    Number of Pixels 380TVL
    Lens CS Mount
    Iris Operation Video iris/DC iris (Selectable)
    Minimum Illumination 0.1 Lux
    Signal-to-Noise Ratio 48dB
    Sync Line lock (phase adjustment)
    Video Output VS 1.0Vp-p / 75ohms
    Power Requirements AC24V
    Power Consumption Approx. 4W
    Dimensions (WxHxD) 62 x 55 x 98mm (2.44 x 2.17 x 3.86")
    Weight 540g (1.19 lbs)
    Packaging Info
    Package Weight 2.0 lb
    Box Dimensions (LxWxH) 9.0 x 9.0 x 7.0"
    The user manual for the Ikegami ICD-38 High Performance Monochrome Camera ICD-38 can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Ikegami users keep a unique electronic library for Ikegami wired analog & hd camerass, where you can use our link to download the user manual for the Ikegami ICD-38 High Performance Monochrome Camera ICD-38.

    The user manual lists all of the functions of the Ikegami ICD-38 High Performance Monochrome Camera ICD-38, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Ikegami service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Ikegami ICD-38 High Performance Monochrome Camera ICD-38. User manuals are also available on the Ikegami website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
