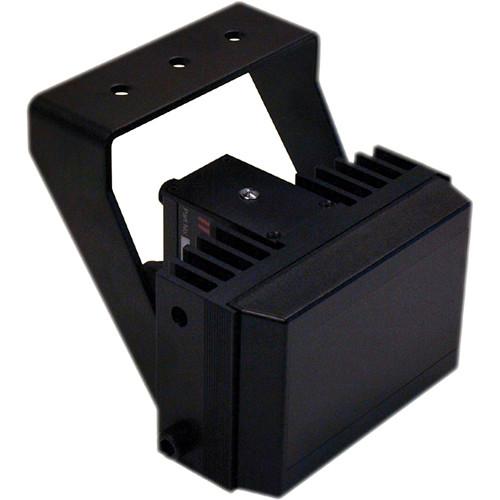

The black 850nm IR148 Series Short-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 51' (15m) and offers an illumination angle of 100° x 50°. The IP67-rated and vandal-proof IR illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C).
If you own a Iluminar illuminators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Iluminar IR148 Series Short-Range IR Illuminator IR148-A100-24-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar IR148 Series Short-Range IR Illuminator IR148-A100-24-2:
Illumination Angle 100° x 50°
Illumination Distance 51' (15 m)
Horizontal Field-of-View 117' (36 m)
Wavelength 850 nm (semi-covert)
Faint red glow visible on the illuminator only (no visible light)
Electronics High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry
Number of SMT LEDs 8
Photocell Adjustment via potentiometer
Illumination Adjustment via potentiometer
Mount Black, powder-coated stainless steel wall mount
Adjustable via M6 Allen key (included)
Construction Robust aluminum extrusion
Front Window Polycarbonate high transmittance protective (vandal-proof) IR filter
Interface Connector Photocell following contact & remote telemetry input
Power Cable 9' (3 m)
Input Voltage 12 to 32 VDC or 24 VAC
Input Current 0.6 A at 24 VAC
Power Consumption 15 W
IP Rating IP67 in accordance with EN60529:1992
Certifications Safety:
EN60598:2004 Electrical Safety
EN60825-1 Laser Eye Safety

EMC:
EN61000, FCC part 15.107
15.108 Class B

WEEE directive 202/96/EC

RoHS directive 202/95/EC
Operating Temperature -58 to 140˚F (-50 to 60˚C)
Dimensions 2.68 x 4.33 x 3.07" (6.80 x 11.00 x 7.80 cm)
Weight 1.65 lb (0.74 kg)
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 12.0 x 8.0 x 8.0"
