User manual for the Iluminar IR919 Series Super Long-Range IR IR919-A100-24-2
The user manual for the Iluminar IR919 Series Super Long-Range IR IR919-A100-24-2 provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Additional Accessories - Illuminators.

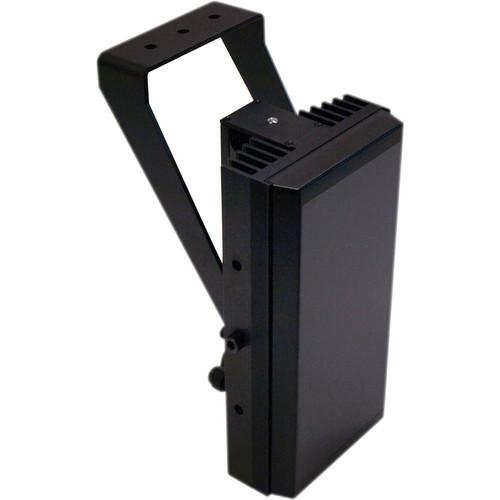

The black 850nm IR919 Series Super Long-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 236' (72m) and offers an illumination angle of 100° x 50°. The IP67-rated and vandal-proof IR illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140˚F (-50 to 60˚C).
If you own a Iluminar illuminators and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Iluminar IR919 Series Super Long-Range IR IR919-A100-24-2 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar IR919 Series Super Long-Range IR IR919-A100-24-2:
| Illumination Angle || 100° x 50° |
| Illumination Distance || 236' (72 m) |
| Horizontal Field-of-View || 563' (172 m) |
| Wavelength || 850 nm (semi-covert) |
Faint red glow visible on the illuminator only (no visible light)
| Electronics || High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs || 32 |
| Photocell || Adjustment via potentiometer |
| Illumination || Adjustment via potentiometer |
| Mount || Black, powder-coated stainless steel wall mount |
Adjustable via M6 Allen key (included)
| Construction || Robust aluminum extrusion |
| Front Window || Polycarbonate high transmittance protective (vandal-proof) IR filter |
| Interface Connector || Photocell following contact & remote telemetry input |
| Power Cable || 9' (3 m) |
| Input Voltage || 12 to 32 VDC or 24 VAC |
| Input Current || 2.2 A at 24 VAC |
| Power Consumption || 52 W |
| IP Rating || IP67 in accordance with EN60529:1992 |
| Certifications || Safety: |
EN60598:2004 Electrical Safety
EN60825-1 Laser Eye Safety
EN61000, FCC part 15.107
15.108 Class B
WEEE directive 202/96/EC
RoHS directive 202/95/EC
| Operating Temperature || -58 to 140°F (-50 to 60°C) |
| Dimensions || 8.39 x 4.33 x 3.07" (21.30 x 11.00 x 7.80 cm) |
| Weight || 3.90 lb (1.75 kg) |
| Package Weight || 7.0 lb |
| Box Dimensions (LxWxH) || 12.0 x 12.0 x 10.0" |
The user manual for the Iluminar IR919 Series Super Long-Range IR IR919-A100-24-2 can be downloaded in .pdf
