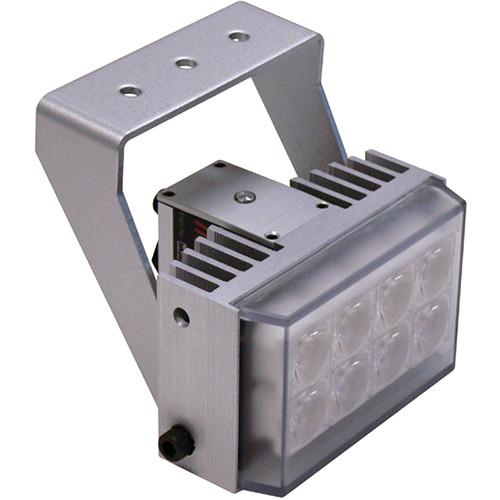

The silver WL105 Series Short-Range White Light Illuminator from Iluminar is a visible light illuminator for color CCTV cameras. This illuminator features high-power SMT (Surface Mount Technology)-enabled LEDs with current-limited integral control circuitry. It provides illumination up to a distance of 36' (11m) and offers an illumination angle of 100° x 50°. It also has a built-in photocell and comes with a wall mounting bracket.
If you own a Iluminar illuminators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Iluminar WL105 Series Short-Range White Light WL105-100-24-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Iluminar WL105 Series Short-Range White Light WL105-100-24-2:
Illumination Angle 100° x 50°
Illumination Distance 36' (11 m)
Horizontal Field-of-View 86' (26 m)
Lumen Output 928 lumens
Wavelength Visible Spectrum: 400 to 750 nm
Color Temperature 6500 K
Color Rendering Index 74-80+
Electronics High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry
Number of SMT LEDs 8
Photocell Adjustment via potentiometer
Illumination Adjustment via potentiometer
Mount Silver, powder-coated stainless steel wall mount
Adjustable via M6 Allen key (included)
Construction Robust aluminum extrusion
Front Window Polycarbonate high transmittance protective (vandal-proof) clear
Interface Connector Photocell following contact & remote telemetry input
Power Cable 9' (3 m)
Input Voltage 12 to 32 VDC or 24 VAC
Input Current 0.6 A at 24 VAC
Power Consumption 15 W
IP Rating IP67 in accordance with EN60529:1992
Certifications Safety:
EN60598:2004 Electrical Safety
EN60825-1 Laser Eye Safety

EMC:
EN61000, FCC part 15.107
15.108 Class B

WEEE directive 202/96/EC

RoHS directive 202/95/EC
Operating Temperature -58 to 140˚F (-50 to 60˚C)
Dimensions 2.68 x 4.33 x 3.07" (6.80 x 11.00 x 7.80 cm)
Weight 1.65 lb (0.74 kg)
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 12.0 x 8.0 x 8.0"
The user manual for the Iluminar WL105 Series Short-Range White Light WL105-100-24-2 can be downloaded in .pdf format if it did not come with your new illuminators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Iluminar users keep a unique electronic library for Iluminar illuminatorss, where you can use our link to download the user manual for the Iluminar WL105 Series Short-Range White Light WL105-100-24-2.
