User manual for the INOGENI USB 3.0 VGA Video Capture Card VGA2USB3
The user manual for the INOGENI USB 3.0 VGA Video Capture Card VGA2USB3 provides
necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

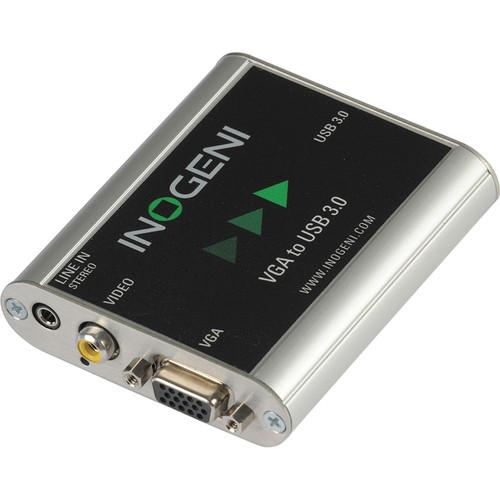

The Inogeni USB 3.0 VGA Video Capture Card allows you to capture uncompressed video with analog audio from a composite video source or your computer's VGA output on your PC for recording, editing, videoconferencing, and streaming applications. No driver installation is necessary and it will work on all motherboard and USB 3.0 chipsets. It features a VGA input, composite video input, 3.5mm analog stereo audio input, and a USB 3.0 output. Compact in size and powered directly from a USB 3.0 port, the converter is a practical and easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux, and Android operating systems, and is UVC-compliant, so it will work with all DirectShow compatible software. This capture card is backward compatible with USB 2.0 devices. However, due to bandwidth restrictions, the card will only be able to operate at resolutions below 1080p.
|
If you own a INOGENI computer hardware and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the INOGENI USB 3.0 VGA Video Capture Card VGA2USB3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the INOGENI USB 3.0 VGA Video Capture Card VGA2USB3:
| Interface | 1 x HD-15 VGA Input
1 x RCA NTSC/PAL Input
1 x 3.5mm Stereo Line-Level Audio Input | | Video Resolutions | 1080p, 1080i, 720p, 480p, 576p
Note: USB 2.0 connections found on older computers and mobile devices will operate at lower resolutions | | Computer Resolutions | 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 | | Video Frame Rate | Up to 60 Hz | | Color Space | RGB | | Sampling Rate | 165 MHz | | Embedded Audio | Line Level Analog Stereo | | HDCP Compliant | N/A | | Interface | 1 x USB 3.0 | | Color Space | YCbCr (YUY2) 4:2:2 8-bit | | Video Scaler | Automatic hardware based | | Color Space Conversion | Automatic hardware based | | Sampling Conversion | Automatic hardware based | | Frame Rate Conversion | Automatic hardware based | | Audio | 2-channel LPCM audio | | Operating System Support | Windows 7/8/8.1 (32/64-bit)
OSX (10.8.5 and above)
Linux (kernel v2.6.38 and above)
Android | | Host Requirements | USB 3.0 port (Backward compatible with USB 2.0 at reduced resolutions) | | Cameras Supported | Cameras and camcorder with a Composite output | | Software Compatibility | UVC-compliant
Runs with all software compatible with DirectShow, V4L2, QuickTime, and AVFoundation | | Tested Applications | Recording/Editing
Adobe Live Encoder
Camtasia
Debut
Elements
GUBCView
LUVCView
MATLAB
MEncoder
MPlayer
OBS
ProPresenter
QuickTime
qV4L2
ScreenFlow
SONY Vegas Pro 13
VLC
VirtualDub
VideoGlide
VIDBlaster
Wirecast
vMix
Streaming
Justin.tv
Livestream
OBS
Ustream
Wirecast
xSplit
vMix
YouTube
Videoconferencing
BlueJeans
Cisco Jabber
FaceTime
GotoMeeting
Hangout
HipChat
Lync 2010/2013
Skype
Webex
Zoom | | Power | 5V, 680 mA bus power from USB port | | Dimensions | 3.3 x 2.9 x 0.75" / 8.4 x 7.4 x 1.9 cm | | Weight | 4.4 oz / 126 g | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.2 x 5.1 x 1.9" | |
