User manual Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5

Operating instructions and pdf manual for use - Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5 User manual, User manual Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5, Intel, 1.2TB, 750, Series, 2.5, PCIe, 3.0, x4, NVM, SS


User manual for Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5

Intel 1.2TB 750 Series 2.5
  • Manufacturer: Intel
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Internal Drives
  • Safety instructions
  • Startup and operation of the internal drives
  • Tips for setting up your Intel
  • Settings and expert assistance
  • Contact Intel service
  • Troubleshooting
  • Warranty information
  • Price: 1000 USD

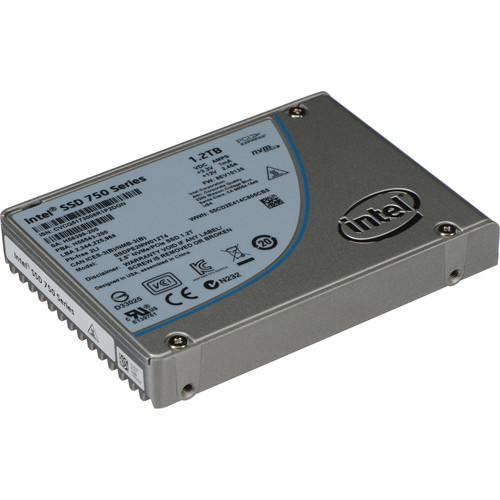

Intel 1.2TB 750 Series 2.5 Intel 1.2TB 750 Series 2.5
Click to enlarge image

We recommend checking out our discussion threads on the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5, which address similar problems with connecting and setting up Internal Drives Intel.



User manual for the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5

The user manual for the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Internal Drives.

The 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM Express SSD from Intel allows you to store and quickly access up to 1.2TB of your files, be it movies, music, documents, and much more. With solid state drive technology and a PCI Express Gen3 x4 interface, you benefit from load and access times for your files and programs that are not only faster than a conventional hard disk drive, but also faster than an SSD that uses a SATA connection. This 750 Series SSD is built with a 2.5" / 15mm form factor, providing a cabled solution where an accessible PCIe 3.0 slot is not available and the motherboard has been provisioned with an SFF-8643 connector. This solution is well suited for small form factor and multi-GPU systems where space is an issue. This flexibility also provides a viable direct attach solution for small form designs with an SFF-8639 connector on board.

In terms of speed, this drive offers sequential read times of up to 2,400 MB/s and sequential write times of up to 1,200 MB/s, as well as 4KB reads up to 440,000 IOPS and 4K writes up to 290,000 IOPS (Input/Output Operations per Second). In addition, this SSD also utilizes 20nm Intel NAND Flash Memory Multi-Level Cell (MLC) flash memory and features a 20 µs read and write latency, 1.2 million hour MTBF, and a lifetime endurance of up to 70GB writes per day. Since SSDs contain no mechanical parts, they are more durable against physical damage, including data loss and are not subject to the wear and tear that standard HDDs receive from read/write heads. It does not any legacy AHCI commands.
If you own a Intel internal drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5:
Specifications
    Technical Specifications
    General
    Model Name Intel Solid-State Drive 750 Series
    Capacity 1.2 TB
    Form Factor 2.5" / 15 mm Small Form Factor 8639
    NAND Flash 20 nm Intel NAND Flash Memory Multi-Level Cell (MLC)
    Sustained Sequential Reads / Writes
    Bandwidth Sustained Sequential Reads: up to 2,400 MB/s
    Sustained Sequential Writes: up to 1,200 MB/s
    Read / Write Latency 20 µs
    4KB Reads / Writes
    Random I/O Operations per Second 4KB Reads: up to 440,000 MB/s
    4KB Writes: up to 290,000 MB/s
    Other
    Interface PCIe 3.0 x4
    Life Expectancy 1.2 million hours Mean Time Between Failures (MTBF)
    Lifetime Endurance 70 GB writes per day
    Power Consumption Active Read: 10 W
    Active Write: 22 W
    Idle: 4 W
    Operating Temperature 32 to 158°F / 0 to 70°C
    RoHS Compliance Meets the requirements of European Union (EU) RoHS Compliance Directives
    Product Health Monitoring Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) commands
    Packaging Info
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 5.7 x 4.6 x 1.9"
    The user manual for the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5 can be downloaded in .pdf format if it did not come with your new internal drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Intel users keep a unique electronic library for Intel internal drivess, where you can use our link to download the user manual for the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5.

    The user manual lists all of the functions of the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5, all the basic and advanced features and tells you how to use the internal drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Intel service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Intel 1.2TB 750 Series 2.5" PCIe 3.0 x4 NVM SSDPE2MW012T4R5. User manuals are also available on the Intel website under Computers & Solutions - Drives & Storage - Internal Drives.
