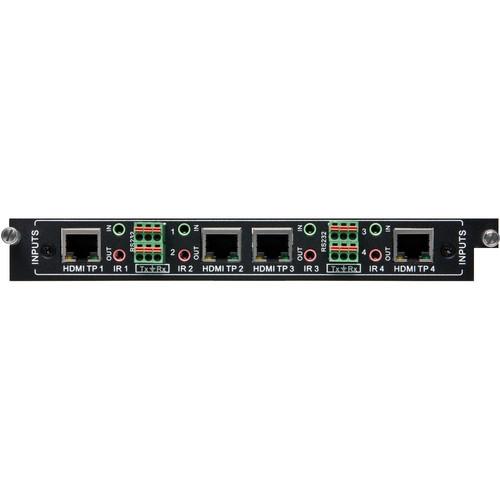

The Intelix FLX-BI4 HDBaseT Input Card for FLX Series Flexible Card-Based Matrix Switcher takes advantage of HDBaseT inputs to allow sources from remote locations from up to 70m away to be routed to any of the available outputs, utilizing standard CAT5e cable with a TIA-568B crimp. The RS-232 and wide-band IR connections for each input allow bi-directional control signals at the equipment rack to interface with source equipment when used with the DIGI-HD60C-R or DIGI-HDE-R HDBaseT Receivers (sold separately). The DIGIB-MIT IR Emitter and DIGI-EYE IR Receiver (sold separately) are required for IR control functionality.
If you own a Intelix router, switcher & patchbay accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Intelix FLX-BI4 HDBaseT Input Card for FLX Series FLX-BI4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Intelix FLX-BI4 HDBaseT Input Card for FLX Series FLX-BI4:
Specifications
    Compatibility FLX-8X8A, FLX-88, FLX-1616, and FLX-3232 Matrix Switcher
    DIGI-HD60C-S and DIGI-HDE-S HDBaseT Transmitter (A/V and control)
    DIGI-HD70-S HDBaseT Transmitter (A/V only)
    DIGIB-EMT IR Emitter
    DIGIB-EYE IR Receiver
    I/O Connections HDBaseT Port: 4 x 8P8C port (shielded RJ-45)
    IR Input: 4 x 3.5 mm TS
    IR Output: 4 x 3.5 mm TRS
    RS-232: 4 x 3-pole Euroblock connectors

    DIGIB-MIT IR Emitter and DIGI-EYE IR Receiver (sold separately) are required for IR control functionality.

    Video Compatibility Maximum At 229.7' (70.0 m): Deep color 36 / 30 / 24 bit at 1080p
    Maximum At 131.2' (40.0 m): Deep color 48 bit at 1080p, 3D
    Compliance Video: HDMI and HDCP
    Embedded Audio Up to PCM 8-channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    Signal Maximum Signal Distance: 229.7' (70.0 m)
    Cable Requirements Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern
    Bandwidth 10.2 Gb/s
    Gain 0 to 10 dB at 100 MHz
    Resolution 800 x 600 to 1920 x 1200
    SNR >70 dB at 100 MHz over 328.1' (100.0 m)
    Return Loss <-30 dB at 5 kHz
    Total Harmonic Distortion (THD) <0.005% at 1 kHz
    Signal Level Maximum: <0.3 V Minimum: 1.45 Vpp
    Differential Phase Error ±10° at 135 MHz over 328.1' (100.0 m)
    Construction Plug-in card with keyed black metal plate
    Temperature Operating: 32 to 104°F (0 to 40°C)
    Storage: 14 to 140°F (-10 to 60°C)
    Humidity Operating & Storage: 20 to 90%, non-condensing
    Packaging Info
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 6.38 x 3.88 x 1.19"
