User manual for IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT
- Manufacturer: IOGEAR
- Basic description and contents of package
- Product classification: Computers & Solutions - Computer Peripherals - KVM Switches
- Safety instructions
- Startup and operation of the kvm switches
- Tips for setting up your IOGEAR
- Settings and expert assistance
- Contact IOGEAR service
- Troubleshooting
- Warranty information
- Price: 230 USD
|
We recommend checking out our discussion threads on the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT,
which address similar problems with connecting and setting up KVM Switches IOGEAR.
|
User manual for the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT
The user manual for the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - KVM Switches.

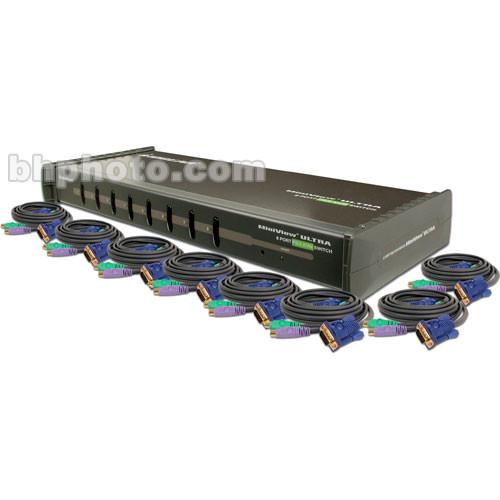

IOGear makes server rooms and multi-computer environments function with ease. Prosumers can use one computer, mouse and keyboard as controllers via the MiniView Ultra 8-port PS2/serial-based KVM Switch with Rack mount and cables. This KVM switch allows up to eight direct and up to 512 daisy-chained or cascading computer connections. IOGear gives you more versatility than you may ever need, with the guarantee of capability if you ever do. Additionally, its Plug-n-Play monitor allows for high-resolution support of up to 1920 x 1440, so ultra-crisp picture quality is assured despite the complex networks.
|
If you own a IOGEAR kvm switches and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT:
| Max Computer Connections | (8) Direct connections or 512 Daisy Chain or Cascading | | PC Connectors | (8) HDB15 for Keyboard, Mouse, and Monitor
(8) Audio connectors
(8) Microphone connectors | | Console Connectors | (1) Microphone
(1) HDDB15 female Monitor
(1) Audio
(1) USB Type A Mouse
(1) USB Type A Keyboard | | Video Resolution | 2048 x 1536 @ 60 Hz; DDC2B | | Scan Interval | 1-255 seconds | | Port Selection | Keyboard and mouse controlled; also supports special keys on Sun and Mac keyboards | | Enclosure | Metal | | System Requirements | Console: VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation
USB mouse & keyboard
The following equipment must be installed on each computer: VGA, SVGA, or Multisync card
Either a Type-A USB port, or PS/2 mouse and keyboard portsTo share audio, a multimedia sound card is required. Only support 2-piece, powered speakers systems Cables:
For PS/2 computers, use IOGEAR part number G2L530XP; for USB computers, use IOGEAR part number G2L530XU | | Power Requirements | Voltage DC 5V
2.6 Amp | | Dimensions (WxHxD) | 17 x 1.75 x 6" | | Weight | 5.9 lbs. | | Warranty | 3-Year Warranty | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 22.0 x 10.0 x 9.5" | |
The user manual for the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT can be downloaded in .pdf
format if it did not come with your new kvm switches, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other IOGEAR users keep a unique electronic library
for IOGEAR kvm switchess,
where you can use our link to download the user manual for the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT.
The user manual lists all of the functions of the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT,
all the basic and advanced features and tells you how to use the kvm switches.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from IOGEAR service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the IOGEAR Miniview Ultra KVM Switch Kit - 8 Port PS/2 KVM GCS138KIT. User manuals are also
available on the IOGEAR website under Computers & Solutions - Computer Peripherals - KVM Switches.
