User manual for the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11

The user manual for the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

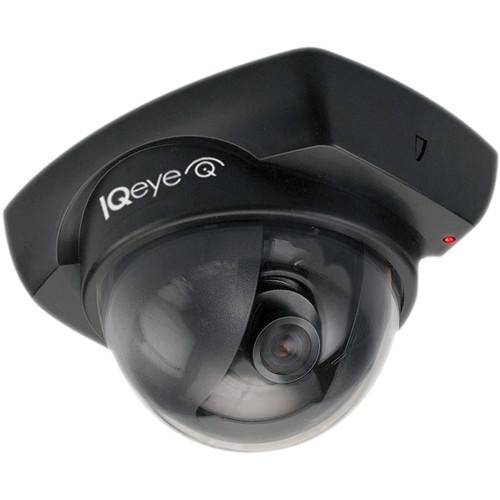

The IQeye Alliance-mini II Series IQD55NV-F11 5MP H.264 Vandal-Resistant PoE IP Dome Camera with 2.8mm Fixed Lens from IQinVision uses H.264 compression to provide high-quality megapixel images while utilizing low network bandwidth. In addition to the processing power needed to run VMS applications at the edge, it features on-camera storage (micro SDHC card slot) and true day/night capability. Both ONVIF and PSIA compliant, the camera has been designed for indoor applications and works seamlessly with nearly all leading NVR/VMS providers.
If you own a IQinVision wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11:
Specifications
    Camera
    Sensor 1/3" CMOS
    Resolution 5 MP, 2560 x 1920
    Frame Rate 10 fps maximum
    Video Compression H.264 (Main profile) and MJPEG
    JPEG Compression Quality Settings User configurable
    Day/Night Yes
    Sensitivity Color: 0.3 lux
    B&W: <0.05 lux
    IR Range Sensor: 800 to 940 nm
    Dynamic Range 71 dB (WDR sensor)
    Shutter Speed 1/20,000 sec (auto / programmable / fixed)
    Lens Format: 1/2.5" M12
    Focal Length: 2.8mm
    Aperture: f/2.0
    Angle of View: 93°
    Event Management
    Motion Detection Multi-zone (user configurable windows)
    Recording Time Lapse and Event Based: User configurable
    Analytics Yes
    Imaging
    White Balance Auto / programmable
    Exposure User configurable
    Backlight Compensation Auto / off
    Image Settings Saturation, contrast, brightness, sharpness, Lightgrabber II
    Image Orientation 180°, horizontal, vertical
    Corridor Format Option: Yes (up to HD 1080p)
    Audio
    Audio Support Two-way, G.711 PCM 8 kHz
    I/O Built-in microphone, mic/line in, line out
    Network
    Interface RJ45, 10Base-T / 100Base-TX
    Supported Protocols TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP, DNS, ARP, ICMP, NTP, UPnP, ZeroConf, APIPA, UDP multicast, SNMP, SMTP, Telnet, CIFS
    Password Protection Secure multi-level
    Power
    Input Power Power over Ethernet 802.3af class 2
    Consumption <4 W, typical
    AC Power 50 / 60 Hz selectable
    General
    Local Storage Micro SD class 10 UHS (card not included)
    Compatible Card Sizes: 8, 16, 32, 64, and 128 GB

    64 and 128 GB cards require firmware v4.0/050 or higher. Kingston memory cards will not function properly.

    Utilities IQfinder, IQmanager, IQevent, Direct-to-Storage (DTS)
    System Integration exacqVision Edge (SW license, network time server required), Agent Vi (SW license required)
    Approvals FCC, CE, UL, cUL, RoHS 2
    Vandal Resistant IK7
    IP Rating IP40
    Temperature Range 32 to 104°F (0 to 40°C)
    Dimensions (W x H x D) 3.5 x 2.8 x 4.5" (9.0 x 7.1 x 11.5 cm)
    Weight 10.5 oz (298 g)
    The user manual for the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other IQinVision users keep a unique electronic library for IQinVision wired ip camerass, where you can use our link to download the user manual for the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11.

    The user manual lists all of the functions of the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from IQinVision service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the IQinVision IQeye Alliance-mini II Series IQD55NV-F11 IQD55NV-F11. User manuals are also available on the IQinVision website under Surveillance - Surveillance Video - Wired IP Cameras.
