User manual Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202

Operating instructions and pdf manual for use - Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202 User manual, User manual Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202, Jammin, StudioPack, 202, Studio, Recording, Kit, STUDIO,


User manual for Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202

Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202
  • Manufacturer: Jammin
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Jammin
  • Settings and expert assistance
  • Contact Jammin service
  • Troubleshooting
  • Warranty information
  • Price: 120 USD
We recommend checking out our discussion threads on the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202, which address similar problems with connecting and setting up Audio Interfaces & Systems Jammin.



User manual for the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202

The user manual for the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

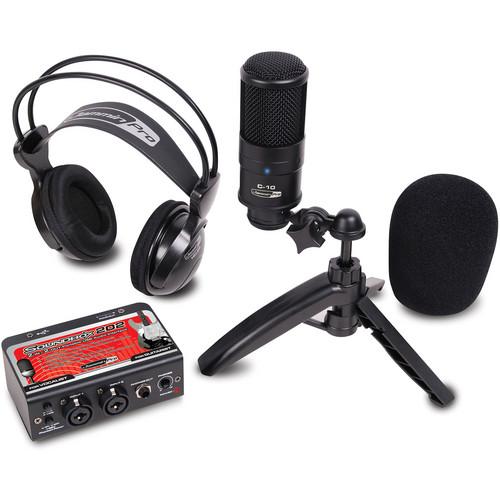

The StudioPack 202 Studio Recording Kit by Jammin contains all of the necessary components to begin making high quality recordings in your own home. Included with the kit is a USB 2 in/2 out audio interface, which includes Magix Music Maker SE music production software for your computer; a high quality large diaphragm condenser microphone with table stand and windscreen; studio headphones; and an XLR to XLR cable for a complete set-up directly from the box.

The 2 in/2 out USB audio interface records in high resolution 16-bit/48kHz sample rate and is compatible with Mac OS X and Windows XP and higher. To fine tune your recordings, Magix Music Maker SE and Audacity are included and work directly with your audio interface. A high sensitivity, large diaphragm side address condenser microphone with windscreen is also included that is connected via and XLR cable and can be mounted to the table stand for hands-free use. Monitoring of your sound is possible with the high performance studio headphones, featuring padded ear cups and an adjustable headband.
If you own a Jammin audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202:
Audio Interface
Input Connector Combo jack
Frequency Response 20 Hz-18 kHz
Input Impedance 20 Hz-20 kHz
THD + N 1%
S/N Ratio ≥ 75 dB
Line Max Input Level ≥ 1.5 V
Phantom Power +48 V DC
Output Connector RCA
Output Impedance 50 Ω stereo
Headphone Connector 1/4" stereo jack
Headphone Impedance 32~64 Ω stereo
ADC Dynamic Range 89 dB
DAC Dynamic Range 93 dB
Bit Depth 16-bit
Sampling Frequency 44.1/48 kHz
Power Supply USB bus powered
Dimensions 5.1 x 2 x 3.8" / 130 x 50 x 96.5 mm
Weight 15.3 oz / 435 g
Microphone
Microphone Type Transducer principle: back electret condenser
Directivity Characteristic Cardioid
Frequency Response 30 Hz - 20 kHz
Sensitivity -38 dB ± 2dB (0 dB = 1 V/Pa at 1 kHz)
Output Impedance 200 Ω ± 30% (at 1kHz)
Equivalent Noise ≤ 22 dB A (IEC 581-5)
Max Input Sound Level (SPL) 140 dB (THD ≤ 1.0% at 1 kHz)
Power Requirements +48 V DC
Dimensions 2.1 x 5" / 54 x 128 mm
Weight 13.1 oz / 371 g
Headphones
Driver Diameter 50 mm
Impedance 32 Ω
Sensitivity 102 dB
Frequency Response 20 Hz - 20 kHz
Power Handling 150 mW
System Requirements
Macintosh System Requirements Mac OS X 10.4.11 or higher (only compatible with Audacity)
PowerPC G4 1.25 GHz or Intel Core Solo 1.5 GHz processor
1 GB RAM
CD drive
USB port
Windows System Requirements Windows XP SP2 or later, Vista, or Windows 7
Intel Pentium 4 1.6 GHz processor
1 GB RAM
DVD drive
USB port
Packaging Info
Package Weight 5.9 lb
Box Dimensions (LxWxH) 14.5 x 11.4 x 8.1"
The user manual for the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Jammin users keep a unique electronic library for Jammin audio interfaces & systemss, where you can use our link to download the user manual for the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202.

The user manual lists all of the functions of the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Jammin service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Jammin StudioPack 202 Studio Recording Kit STUDIO PACK 202. User manuals are also available on the Jammin website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
