User manual JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH

Operating instructions and pdf manual for use - JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH User manual, User manual JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH, JBL, Control, 1, Pro, 5, Two-Way, Professional, C1PRO-WH,


User manual for JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
JBL Control 1 Pro - 5
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 158 USD

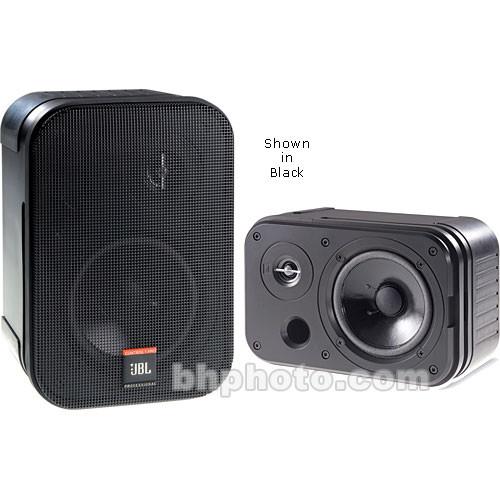

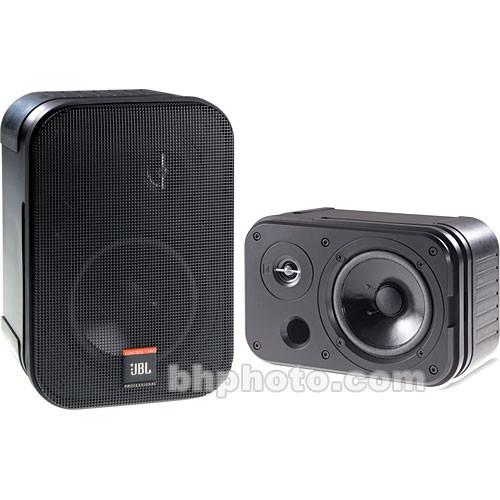

JBL Control 1 Pro - 5 JBL Control 1 Pro - 5
Click to enlarge image

We recommend checking out our discussion threads on the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH

The user manual for the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

The white Control 1 Pro compact professional loudspeaker system from JBL offers terrific quality at an affordable price for professional or residential applications. The rugged enclosure houses a 5" woofer and a 0.75" dome tweeter to provide a wide frequency response. The cabinet is also magnetically shielded for safe use near video monitors.

The rear of the cabinet features standard spring-loaded speaker terminals for wide compatibility. SonicGuard protection circuitry protects the network and transducers to keep your speakers running smoothly. A ball and socket mounting bracket is included for easy installation and positioning flexibility.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH:
Active or Passive Passive
Frequency Response 80Hz - 20kHz (-10dB)
100Hz - 18kHz (±3dB)
Power Capacity 150W
Maximum Sound Pressure Level (SPL) 110dB (40W @ 0.5 m)
Nominal Sensitivity 108dB, Continuous
Impedance 4 Ohms
Crossover 4.2kHz
Shielded Yes
Low Frequency Driver 5.25" (135mm) Low Frequency Loudspeaker
High Frequency Driver 0.75" (19mm) Polycarbonate Dome Tweeter
Enclosure Material Polypropylene Structural Foam
Input Connections Spring Speaker Terminals
Environmental Indoor
Dimensions (HxWxD) 9.25 x 6.25 x 5.6" (235 x 159 x 143mm)
Weight 4 lbs (1.8kg) (Each Speaker)
Packaging Info
Package Weight 11.6 lb
Box Dimensions (LxWxH) 12.8 x 11.8 x 7.7"
The user manual for the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH.

The user manual lists all of the functions of the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control 1 Pro - 5" Two-Way Professional C1PRO-WH. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
