User manual JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS

Operating instructions and pdf manual for use - JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS User manual, User manual JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS, JBL, Control, 24CT, MicroPlus, Ceiling, Speaker, C24CT,


User manual for JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

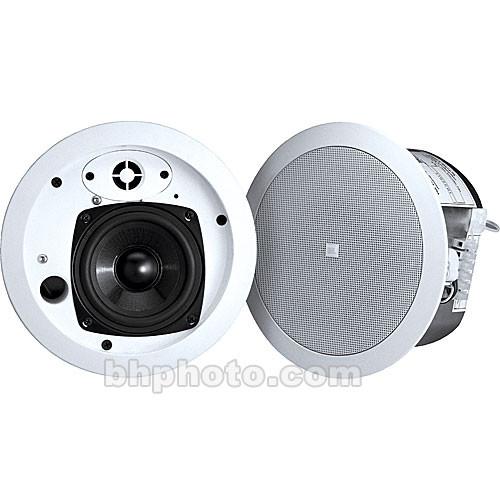

JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 206 USD
We recommend checking out our discussion threads on the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS

The user manual for the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

The full, high-quality sound of the compact JBL Control 24CT Ceiling Speaker System is ideal for medium volume paging and background music applications including restaurants, professional offices and retail. Installation is possible without ceiling access and the built-in voltage transformer allows for additional speakers and system flexibility.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS:
Active or Passive Passive
Frequency Response 85Hz to 25KHz
Power Capacity 30 Watts Program (C24C Micro)
15 Watts Pink Noise (C24C Micro)
Maximum Sound Pressure Level (SPL) 94dB @ 1 m (3.3'), 8W tap
Nominal Sensitivity 86dB SPL @ 1 m (3.3')
Transformer Taps 70V: taps: 30W, 15W, 7.5W, 3.7W
100V: taps: 30W, 15W, 7.5W
Impedance Not applicable
Crossover 3.5KHz
Shielded Not applicable
Low Frequency Driver 4.5" (115mm) IMG (injection molded graphite), 1" (24mm) Voice coil
High Frequency Driver 0.5" (12mm) polycarbonate
Enclosure Material Formed Steel
Input Connections Screw-down terminals, touch-proof, UL, CE and VDE rated, outside of back can
Environmental Not applicable
Dimensions Outside Dimensions: (H x W) 4.2 x 7.7" (106 x 195mm)
4.1" (105mm) front of ceiling tile to back of the back can
Weight 4.4 lb (2.0kg) each
Specialties Multi-tap transformer for 70V and 100V systems
Packaging Info
Box Dimensions (LxWxH) 25.5 x 10.8 x 7.4"
The user manual for the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS.

The user manual lists all of the functions of the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control 24CT MicroPlus Ceiling Speaker C24CT MICROPLUS. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
