User manual JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT

Operating instructions and pdf manual for use - JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT User manual, User manual JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT, JBL, Control, 26CT, Ceiling, Speaker, w/Transforme


User manual for JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

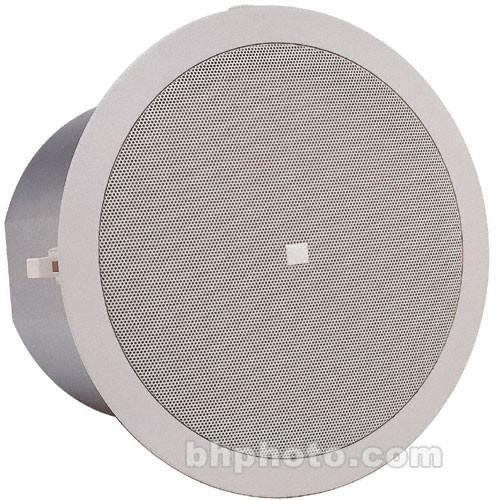

JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 312 USD
We recommend checking out our discussion threads on the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT

The user manual for the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

Capable of high power handling and low distortion, JBL's ceiling mounted Control 26CT is ideal for upscale installs. Its performance ability ensures balanced sound throughout the listening area.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CTDownload user manual for JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT
(PDF file, 0.4 MB)
Additional parameters of the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT:
Active or Passive Passive
Frequency Response 75Hz to 20kHz
Power Capacity 150 Watts Program 75 Watts Pink Noise
Maximum Sound Pressure Level (SPL) 107dB @ 1m (3.3 ft)
Nominal Sensitivity 89dB SPL, 1W @ 1m (3.3 ft)
Transformer Taps 70 V taps: 60W, 30W, 15W, 7.5W 100 V taps: 60W, 30W, 15W
Impedance Not applicable
Crossover Not applicable
Shielded Not applicable
Low Frequency Driver 6.5 in. (165 mm) Polypropelene-coated, 1" coil on aluminum former
High Frequency Driver 3/4 in. (19 mm) Titanium coated polyester
Enclosure Material Formed steel can with medium impact polystyrene baffle/rim, fire rated UL94V-0
Input Connections Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
Environmental In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90,NFPA70A
Dimensions 8.3 x 9.9 in. (210 x 252 mm) 7.5 in. (190 mm) front of ceiling tile to back of back can
Weight 7.5 lbs. (3.4 kg) CT: 10 lbs. (4.2 kg) each
Specialties Multi-tap transformer for 70V and 100V systems
Packaging Info
Package Weight 20.0 lb
Box Dimensions (LxWxH) 26.5 x 12.0 x 11.5"
The user manual for the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT.

The user manual lists all of the functions of the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control 26CT - Ceiling Speaker w/Transformer CONTROL 26CT. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
