User manual for the JBL Control 28T-60 Speaker for use with 70/100V CONTROL 28T-60
The user manual for the JBL Control 28T-60 Speaker for use with 70/100V CONTROL 28T-60 provides
necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

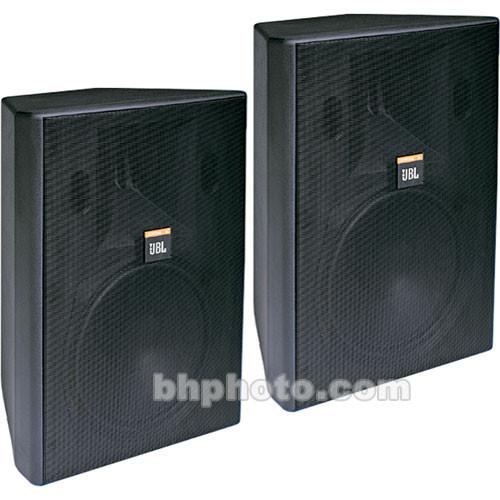

Designed for both indoor and outdoor venue applications, the JBL Control 28T is one of the largest of that company's indoor/outdoor Control Contractor Series speakers. The speaker is easily mounted and highly theft deterrent because of the unique InvisiBall mounting. InvisiBall adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis and all adjustments are made from behind the logo badge without having to remove the grill.
Weather resistance for the Control 28T is maximized using zinc plated grills to resist rust, a polycarbonate tweeter reinforced with a thin film of titanium for added rigidity and protection against the sun, wind, rain and dust, and JBL's WeatherEdge, a seamless, rubberized extension of the woofer adding protection to critical transducer elements.
The Control 28T easily accepts any paint or finish and can be used on either 70.7V or 100V distributed-line sound systems.
If you own a JBL install speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JBL Control 28T-60 Speaker for use with 70/100V CONTROL 28T-60 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control 28T-60 Speaker for use with 70/100V CONTROL 28T-60:
| Active or Passive || Passive |
| Frequency Response || 60Hz to 16kHz frequency range (-10dB) |
| Power Capacity || 175 Watts |
| Maximum Sound Pressure Level (SPL) || Not applicable |
| Nominal Sensitivity || 70.7V Input/100V Input (dB-SPL@1m) Tap #1 99dB/102dB Tap #2 102dB/105dB Tap #3 105dB/107dB Tap #4 107dB/(do not use) |
| Transformer Taps || 70V taps: 7.5W, 15W, 30W, 60W 100V taps: 15W, 30W, 60W |
| Impedance || 8 ohms |
| Crossover || 2.8kHz |
| Shielded || Not applicable |
| Low Frequency Driver || 8 in. (200 mm) Polypropylene cone w/WeatherEdge |
| High Frequency Driver || 1 in. (25 mm) Titanium coated polycarbonate |
| Enclosure Material || HIPS (High Impact Polystyrene) |
| Input Connections || Spring terminals, accepts banana plug |
| Environmental || Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splash-proof rating |
| Dimensions || 15.0 x 11.0 x 8.6 in. (380 x 280 x 220 mm) |
| Weight || 14.3 lbs. (6.5kg) each |
| Specialties || Isolation transformer for 70.7V/100V distributed-line sound systems |
| Package Weight || 33.2 lb |
| Box Dimensions (LxWxH) || 22.0 x 18.0 x 12.0" |
