User manual JBL Control SB-2 Subwoofer CONTROL SB-2

Operating instructions and pdf manual for use - JBL Control SB-2 Subwoofer CONTROL SB-2 User manual, User manual JBL Control SB-2 Subwoofer CONTROL SB-2, JBL, Control, SB-2, Subwoofer, CONTROL, SB-2, Video


User manual for JBL Control SB-2 Subwoofer CONTROL SB-2

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

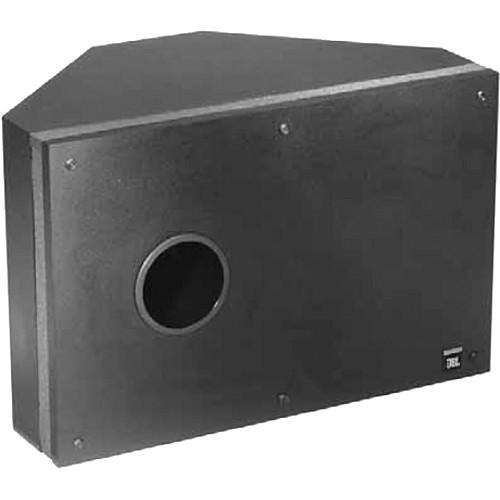

JBL  Control SB-2 Subwoofer CONTROL SB-2
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Install Speakers
  • Safety instructions
  • Startup and operation of the install speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 314 USD
We recommend checking out our discussion threads on the JBL Control SB-2 Subwoofer CONTROL SB-2, which address similar problems with connecting and setting up Install Speakers JBL.



User manual for the JBL Control SB-2 Subwoofer CONTROL SB-2

The user manual for the JBL Control SB-2 Subwoofer CONTROL SB-2 provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Install Speakers.

Many music/paging systems in retail establishments, music cafes, health clubs, restaurants and theme bars suffer from a common problem...lack of clarity. The JBL Control SB-2 Subwoofer helps smooth out musical definition and clarity by offering a unique slot-load design which provides low-pass filtering for improved bass and high-pass filtering for satellite speakers. High-pass filtering for satellite speakers eliminates the need for the speakers to reproduce lower frequencies thereby eliminating "muddiness" and making them clearer and more efficient.
If you own a JBL install speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL Control SB-2 Subwoofer CONTROL SB-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JBL Control SB-2 Subwoofer CONTROL SB-2:
Frequency Range 38Hz to 160Hz
Power Capacity 340 Watts (both inputs driven) 170 Watts (each input) x 2
Sensitivity 100dB (1W, 1m) at corner junction (p/2 loading)
97 dB, at two boundary junction (p loading)
Impedance 8 ohms/input 4 ohms total with both inputs paralleled
Crossover 12dB/oct low-pass (per input) 160Hz
Driver 10 in. (250mm) long-throw with dual voice coils
Enclosure Material Particle Board
Termination Spring terminals, accepts banana plugs
Left In, Right In, Left Satellite Out, and Right Satellite Out
Dimensions 15.5 x 23.0 x 13.5 in. (394 x 585 x 343mm)
Weight 42 lbs. (19.1 kg)
Packaging Info
Package Weight 46.4 lb
Box Dimensions (LxWxH) 27.0 x 18.0 x 18.0"
The user manual for the JBL Control SB-2 Subwoofer CONTROL SB-2 can be downloaded in .pdf format if it did not come with your new install speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL install speakerss, where you can use our link to download the user manual for the JBL Control SB-2 Subwoofer CONTROL SB-2.

The user manual lists all of the functions of the JBL Control SB-2 Subwoofer CONTROL SB-2, all the basic and advanced features and tells you how to use the install speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL Control SB-2 Subwoofer CONTROL SB-2. User manuals are also available on the JBL website under Pro Audio - Installation Sound - Install Speakers.
