User manual JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H

Operating instructions and pdf manual for use - JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H User manual, User manual JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H, JBL, LC1, Studio, L, Series, 3-Way, Dual, 5-1/4, Center, LC1-H,


User manual for JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
JBL LC1 Studio L Series 3-Way Dual 5-1/4
  • Manufacturer: JBL
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Center Channel Speakers
  • Safety instructions
  • Startup and operation of the center channel speakers
  • Tips for setting up your JBL
  • Settings and expert assistance
  • Contact JBL service
  • Troubleshooting
  • Warranty information
  • Price: 400 USD
We recommend checking out our discussion threads on the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H, which address similar problems with connecting and setting up Center Channel Speakers JBL.



User manual for the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H

The user manual for the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Center Channel Speakers.

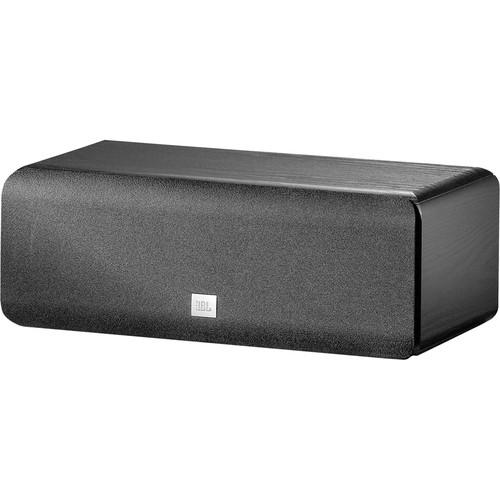

The JBL LC1 is the Center Speaker component for your Studio L speaker system. Certainly you could add this fabulous center to any multichannel configuration, but you'll get the best results by matching all the speakers in your system. Like musical instruments, speakers have timbre, they have character, and tend to color sound in a manner unique to their manufacture. Studio L speaker systems create the perfect environment for listening to SACDs.

In a home theater system, the center channel is typically mounted directly above or below the video display, or even behind a projection screen if it is constructed to not alter the sound going through it. A quality center speaker is critical to fully enjoying DVDs since most of the spoken words, along with some music and effects are mixed to the center channel. The LC1 boasts a straight-line signal path network with bypass capacitors to ensure the cleanest possible center channel signal, resulting in crisp and distinct movie dialogue.

This center speaker is Black Ash.
If you own a JBL center channel speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for JBL LC1 Studio L Series 3-Way Dual 5-1/4Download user manual for JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H
(PDF file, 1.98 MB)
Additional parameters of the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H:
System
Speaker Design Center
Power Rating 75 Watts Continuous/300 Watts Peak
Maximum Recommended Amplifier: 150 Watts
Impedance 8 ohms
Frequency Response 55Hz-40kHz
Sensitivity 91 dB
Crossover 3kHz, 20kHz
Enclosure Bass Reflex
Shielded Yes/Magnetically Shielded
Drivers
Tweeter 0.75" and 1" Dome
Midrange 1.0"
Woofer Dual 5.25"
General
Connector Type 5-way Post
Configuration Single
Construction Wood
Dimensions (WxHxD) 21.0 x 7.5 x 10.0" (533.4 x 190.5 x 254.0mm)
Weight 23.0 lbs (10.4 kg)
Color Black Ash
Warranty 5-Year Parts & Labor
Packaging Info
Package Weight 28.0 lb
Box Dimensions (LxWxH) 24.5 x 15.5 x 12.5"
The user manual for the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H can be downloaded in .pdf format if it did not come with your new center channel speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JBL users keep a unique electronic library for JBL center channel speakerss, where you can use our link to download the user manual for the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H.

The user manual lists all of the functions of the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H, all the basic and advanced features and tells you how to use the center channel speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JBL service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JBL LC1 Studio L Series 3-Way Dual 5-1/4" Center LC1-H. User manuals are also available on the JBL website under TVs & Entertainment - Speakers - Center Channel Speakers.
