User manual for the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U
The user manual for the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

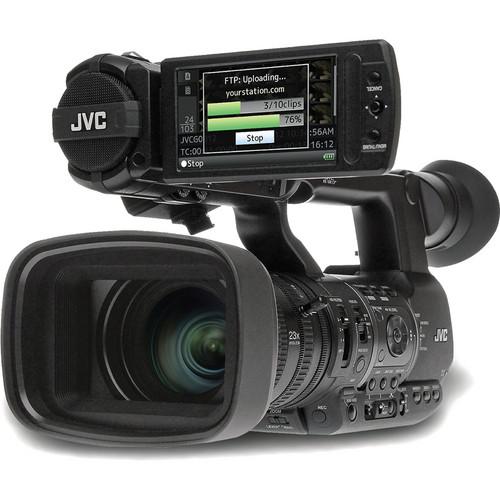

The JVC GY-HM650 ProHD Mobile News Camera features superb low-light performance, a lightweight and user-friendly design, and exceptional advanced features, altogether providing capacity for fast, efficient and high-quality mobile newsgathering. The camera records 4:2:0 but has a live output of 4:2:2.
Fully supporting the needs of news camera operators, the HM650 offers built-in GPS, WiFi connectivity allowing FTP file uploads, and remote control and remote viewing Apps for both iOS and Android. Also, a dual codec recording capacity allows for simultaneous HD + SD or HD + ¼ HD capture for web delivery.
Three 1/3" 12-bit CMOS sensors are each capable of a max resolution of 1920 x 1080. A 23x Fujinon autofocus zoom lens shoots long and wide angles and is operable by manual functions. The camera offers F11 sensitivity @2000 lux as well as a built-in 3-position ND filter. Connections include HD-SDI and HDMI. Comprehensive recording options consist of MPEG-2, AVCHD, and SD and Proxy H.264. Two SDXC/SDHC slots are available for dual-backup, continuous recording.
A viewfinder, LCD display and built-in microphone provide additional flexibility in on-the-go shooting.
|
If you own a JVC camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U:
Sensor | 1/3" 2.2M pixels progressive scan 3CMOS | Synchronizing System | Internal | Stabilizer | Optical image stabilizer | Lens | Fujinon F1.6-3.0, 23x, f=4.1 - 94.3 mm (35 mm conversion: 29 to 667 mm) | Filter Diameter | 72 mm | Shutter Speed | 1/4 to 1/10000 | Gain | -6, -3, 0, 3, 6, 9, 12, 15, 18 dB, Lolux, ALC | ND Filter | 1/4, 1/16, 1/64 | LCD Display | 3.5" (8.9 cm) 920K pixels, 16:9 | Viewfinder | 0.45" (1.1 cm) 1.22M pixels, 16:9 | Recording Media | 2x SDHC/SDXC memory card class 6/10 | Video Recording | Video codec: MPEG2 Long GOP (HD), AVCHD, H.264 (SD) File format: MOV (HD/SD: H.264), MP4 (XDCAM EX), MTS (AVCHD) | Recording Mode | MPEG-2 Long GOP: NTSC setting -- HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p SP mode: 1440 x 1080/59.94i PAL setting -- HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i SP mode: 1440 x 1080/50i
AVCHD NTSC setting -- HQ mode: 1920 x 1080/59.94i, SP mode: 1920 x 1080/59.94i PAL setting -- HQ mode: 1920 x 1080/50i, SP mode: 1920 x1080/50i
SD (H.264) NTSC setting: 720 x 480/59.94i
Proxy (H.264) NTSC setting: LP/LV mode: 480 x 270/29.97p, 23.98p PAL setting: LP/LV mode: 480 x 270/25p | Sampling | Records 4:2:0 but has a live output of 4:2:2 | Audio Recording | LPCM 2ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 (AVCHD) | Video Output | (1) AV output (f3.5 mm mini jack) (1) SDI output (1) HDMI output | Audio Input | (2) XLR (MIC, +48V/LINE) (1) f3.5 mm mini jack | Audio Output | (1) AV output (f3.5 mm mini jack) | Headphone | (1) f3.5 mm mini jack | Time Code Link Input/Output | (1) RCA | Remote | (1) f2.5 mm mini jack | Operating Temperature | 32 to 104°F (0 to 40°C) | Storage Temperature | 14 to 122°F (-20 to 50°C) | Operating Humidity | 35 to 80% | Storage Humidity | Under 85% | Power | DC 12V (AC adapter), DC 7.2V (battery) | Power Consumption | Approx. 12W (with VF and LCD monitor) | Dimensions | 7 x 7.8 x 16.3" (17.8 x 19.8 x 41.6 cm) | Weight | Approx. 5.3 lbs (2.4 kg) | Package Weight | 9.05 lb | Box Dimensions (LxWxH) | 20.0 x 10.5 x 10.5" | |
The user manual for the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U can be downloaded in .pdf
format if it did not come with your new camcorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other JVC users keep a unique electronic library
for JVC camcorderss,
where you can use our link to download the user manual for the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U.
The user manual lists all of the functions of the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U,
all the basic and advanced features and tells you how to use the camcorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from JVC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the JVC GY-HM650 ProHD Mobile News Camera GY-HM650U. User manuals are also
available on the JVC website under Professional Video - Professional Camcorders - Camcorders.
