User manual JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS

Operating instructions and pdf manual for use - JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS User manual, User manual JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS, JVC, GZ-R450BUS, 32GB, Quad-Proof, HD, Memory, Camco


User manual for JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS
  • Manufacturer: JVC
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your JVC
  • Settings and expert assistance
  • Contact JVC service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS, which address similar problems with connecting and setting up Consumer Camcorders JVC.



User manual for the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS

The user manual for the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

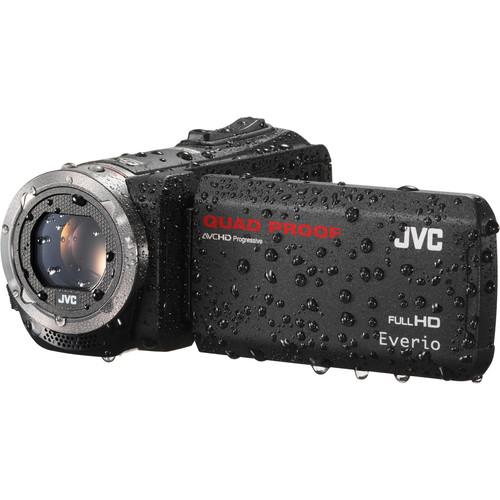

The black JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder records HD video at NTSC compatible frame rates, and is designed with JVC's rugged Quad-Proof camera body. The Quad-Proof designation means that it is waterproof down to 16.4', shockproof from falls up to 4.9', dustproof (IP5X rating), and freeze-proof from temperatures as low as 14°F. The camera pairs a back-illuminated 2.5 MP CMOS sensor with JVC's FALCONBRID image processing engine that captures 1920 x 1080 progressive HD video recording using AVCHD Progressive to its 32GB of internal memory, or to SD Media Cards. It can capture 10 MP stills, or simultaneously record HD video and 2 MP stills.

The camera's Konica Minolta HD Lens features a 40x optical zoom and 60x dynamic zoom. Plus, there's an Advanced Image Stabilizer (A.I.S.) that reduces the effects of unwanted camera shake. The camera features a full screen 3" touch panel LCD as well. For connectivity, the GZ-R450BUS has a USB 2.0 port for charging its internal battery and data transfers. A mini-HDMI connector allows you to playback your footage from your camera to your HDMI monitor. The camera features Intelligent AUTO, time-lapse recording, Face Detection, Touch AE/AF, and special recording modes like Rough Monochrome, Food Mode, Baby Mode and Marine Mode. Other features include a sealed internal battery design, built-in zoom microphone with auto wind cut, K2 audio recording technology, and a Super LoLux option that affords improved sensitivity when recording in low light.
If you own a JVC consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS:
Camera
Sensor 2.5 Megapixel 1/5.8"  CMOS
Backside Illumination Yes
Pixel Gross 2,510,000
Effective Pixels 2,290,000 @ Video 16:9 (Image Stabilizer Off)
2,290,000 @ Photo 16:9
1,710,000 @ Photo 4:3
Optics
Focal Length 2.9 - 116 mm
35mm Equivalent Focal Length 40.5 - 1620 @ Aspect Ratio: 16:9 Video - Image Stabilizer Off
40.5 - 1620 @ Aspect Ratio: 16:9 Photo
49.5 - 1980 @ Aspect Ratio: 4:3 Photo
Maximum Aperture f/ 1.8 - f/ 6.3
Zoom Optical: 40x
Dynamic (Optical): 60x
Digital: 200x
Recording
System NTSC
Recording Media Internal Flash Memory Up To 32 GB
SD/SDHC/SDXC
Video Format High Definition
AVCHD
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080 (24 Mbps)
1920 x 1080 (17 Mbps)
High Definition
AVCHD
1920 x 1080 (4.8 Mbps)
Aspect Ratio 16:9
Still Image Resolution JPEG: 2 Megapixel, 1920 x 1080 (16:9)
JPEG: 10.15 Megapixel, 3680 x 2760 (4:3)
JPEG: 1.5 Megapixel, 1440 x 1080 (4:3)
JPEG: .3 Megapixel, 640 x 480 (4:3)
Audio Format Dolby Digital 2ch
Sampling Frequency Dolby 2ch: 48.0 kHz
Bit Rate Dolby 2ch: 256.0 kbps
Display
Display Type LCD
Touchscreen Yes
Screen Size 3"
Pixel Count 230,000
Rotation Opening Angle: 90°
Turning Angle: 270°
Features
Image Stabilization Digital
Scene Modes Preset: Yes
Shockproof Rating 4.9' / 1.5 m
Waterproof Depth Rating 16.4' / 5.0 m (Camera)
Dustproof Rating IP5X
Lux 3
White Balance Modes Auto
Cloudy
Fine
Halogen
Manual
Marine Blue
Marine Green
Creative Effects Yes
Built-in Mic Yes
Built-in Speaker Yes
Built-in Light/Flash Light - Yes
Flash - No
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1x USB 2.0
1x HDMI C (Mini)
1x A/V
Microphone Input No
Headphone Jack No
General
Battery Rechargeable Battery Pack Batteries,
Providing up to 4.5 Hours per Charge
Charging Method AC Adapter
USB
Power Adapter 110-240 VAC, 50/60HZ
5.2 VDC
Power Consumption Operating:2.3 W
Operating Temperature 14 - 104°F (-10 - 40°C)
Dimensions (WxHxD) 2.4 x 2.3 x 4.8" / 60.0 x 59.5 x 122.0 mm Excluding Grip Belt
Weight .63 lb / 288 g Camera Only
Packaging Info
Package Weight 1.4 lb
Box Dimensions (LxWxH) 6.1 x 5.5 x 3.1"
The user manual for the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other JVC users keep a unique electronic library for JVC consumer camcorderss, where you can use our link to download the user manual for the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS.

The user manual lists all of the functions of the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from JVC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the JVC GZ-R450BUS 32GB Quad-Proof HD Memory Camcorder GZR450BUS. User manuals are also available on the JVC website under Camcorders - Consumer Camcorders.
