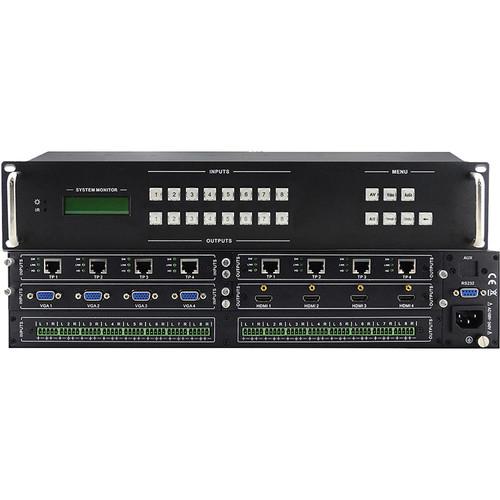

The KanexPro 8x8 Modular Matrix Switcher Chassis supports various swappable I/O cards, providing up to 8 inputs and 8 outputs in a 2U frame. This modular design allows you to choose the I/O connections to meet the demands of your application or installation, and even upgrade as AV signal routing needs change over time. The modular matrix supports various signals with cross-switching ranging from VGA, DVI, HDMI, and 3G/HD/SD-SDI, to HDMI over twisted pair and fiber optic input and output cards.

Every video or audio signals is transmitter and switched independently with power fail memory function and audio breakaway. The matrix is fully controllable through RS-232 and optional TCP/IP when used with third-party control systems. The modular matrix is ideal for commercial applications such as control centers, smart lecture halls, medical, government and residential environments where signal management and distribution of high-resolution video signals and audio is critical.
If you own a KanexPro router, switcher & patchbay accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the KanexPro 8x8 Modular Matrix Switcher Chassis HDMMX88A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the KanexPro 8x8 Modular Matrix Switcher Chassis HDMMX88A:
Specifications
    Chassis Slots 2 x input slot (8 inputs total)
    2 x output slot (8 outputs total)
    Bandwidth 340 MHz (10.2 Gbps) for each input/output
    I/O Impedance 75 Ohms
    Switching Speed 200 ns (max)
    Gain 0 dB
    Max Delay 5 nS (± 1 nS)
    Maximum Pixel Clock 165 MHz
    Control Serial control port: RS-232, 9-pin female D connector
    Pin Configurations: 2 = TX, 3 = RX, 5 = GND
    Front panel control: Buttons
    TCP/IP Control via Ethernet
    Power Supply 110 to 240 VAC, 50/60Hz
    Power Consumption 50 W
    Temperature -4 to 158°F (-20 to 70°C)
    Humidity 10 to 90%
    Rack Height 2U
    Dimensions (W x H x D) 19.0 x 3.5 x 12.6" (48.3 x 8.8 x 32.0 cm)
    Weight 11 lb (5 kg)
    The user manual for the KanexPro 8x8 Modular Matrix Switcher Chassis HDMMX88A can be downloaded in .pdf format if it did not come with your new router, switcher & patchbay accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other KanexPro users keep a unique electronic library for KanexPro router, switcher & patchbay accessoriess, where you can use our link to download the user manual for the KanexPro 8x8 Modular Matrix Switcher Chassis HDMMX88A.
