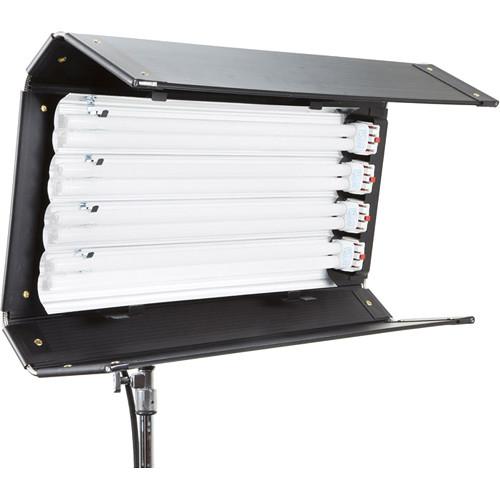

Click to enlarge image
|
We recommend checking out our discussion threads on the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U,
which address similar problems with connecting and setting up Fluorescent Lights Kino Flo.
|
User manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U
The user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Fluorescent Lights.
With features like a built-in multi-voltage ballast, light weight, and a compact 26 x 12 x 6" profile that meets the challenge of tight spaces, it's no wonder that the Diva-Lite 415 Fluorescent Fixture from Kino Flo has become a go-to light on set and on the road. The fixture is dimmable from 5-100% and also offers 2 light and 4 light switching for greater control of light intensity. An optional wired remote dimmer is also available. Built in barndoors allow you to put the light where you want it and keep it away for areas that you don't.
|
If you own a Kino Flo fluorescent lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U:
| Lamp Socket | 4 x 55W Twin Tube Compact Fluorescent Lamp Sockets | | Footcandles | 721 fc @ 2' (0.61 m)
198 fc @ 4' (1.22 m)
90 fc @ 6' (1.83 m)
51 fc @ 8' (2.44 m)
33 fc @ 10' (3.05 m)
23 fc @ 12' (3.66 m)
17 fc @ 14' (4.23 m)
13 fc @ 16' (4.88 m)
11 fc @ 18' (5.49 m)
9 fc @ 20' (6.01 m) | | Lux | 10,500 lux @ 1.64' (0.5 m)
3,030 lux @ 3.28' (1 m)
1,410 lux @ 4.92' (1.5 m)
806 lux @ 6.56' (2 m)
519 lux @ 8.20' (2.5 m)
364 lux @ 9.84' (3 m)
269 lux @ 11.48' (3.5 m)
207 lux @ 13.12' (4 m)
166 lux @ 14.76' (4.5 m)
135 lux @ 16.40' (5 m) | | Dimming | 5-100% | | Ballast | Built-in | | Input Voltage | 100-240 VAC, 50/60 Hz, 0.7 - 1/4 A | | Output Frequency | 80 kHz | | Power Cable | 15' (4.57 m) with inline switch | | Plug | 3-Prong U.S. | | Mounting | Center mount with 5/8" (16 mm) receiver | | Dimensions | 26 x 12 x 6.0" (66 x 30.5 x 15 cm) including barndoors | | Weight | 14.2 lb (6.4 kg) | | Package Weight | 12.7 lb | | Box Dimensions (LxWxH) | 28.1 x 12.9 x 7.3" | |
The user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U can be downloaded in .pdf
format if it did not come with your new fluorescent lights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Kino Flo users keep a unique electronic library
for Kino Flo fluorescent lightss,
where you can use our link to download the user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U.
The user manual lists all of the functions of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U,
all the basic and advanced features and tells you how to use the fluorescent lights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Kino Flo service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-120U. User manuals are also
available on the Kino Flo website under Lighting & Studio - Continuous Lighting - Fluorescent Lights.
