User manual Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U

Operating instructions and pdf manual for use - Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U User manual, User manual Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U, Kino, Flo, Diva-Lite, 415, Fluorescent, Fixture, DIV-415-230U,


User manual for Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U

Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U
  • Manufacturer: Kino Flo
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - Fluorescent Lights
  • Safety instructions
  • Startup and operation of the fluorescent lights
  • Tips for setting up your Kino Flo
  • Settings and expert assistance
  • Contact Kino Flo service
  • Troubleshooting
  • Warranty information

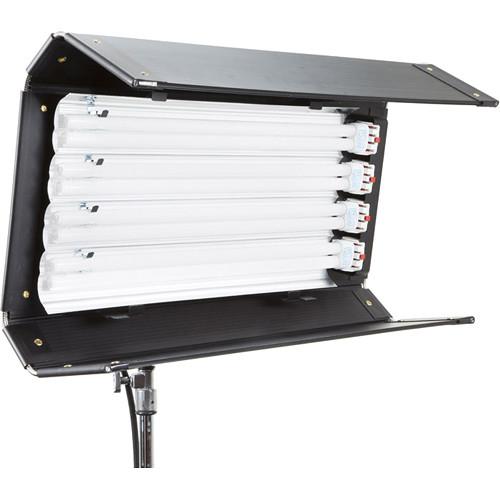

Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U
Click to enlarge image

We recommend checking out our discussion threads on the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U, which address similar problems with connecting and setting up Fluorescent Lights Kino Flo.



User manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U

The user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Fluorescent Lights.

With features like a built-in multi-voltage ballast, light weight, and a compact 26 x 12 x 6" profile that meets the challenge of tight spaces, it's no wonder that the Diva-Lite 415 Fluorescent Fixture from Kino Flo has become a go-to light on set and on the road. The fixture is dimmable from 5-100% and also offers 2 light and 4 light switching for greater control of light intensity. An optional wired remote dimmer is also available. Built in barndoors allow you to put the light where you want it and keep it away for areas that you don't.
If you own a Kino Flo fluorescent lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U:
Specifications
Lamp Socket 4 x 55W Twin Tube Compact Fluorescent Lamp Sockets
Photometric Data
Footcandles 721 fc @ 2' (0.61 m)
198 fc @ 4' (1.22 m)
90 fc @ 6' (1.83 m)
51 fc @ 8' (2.44 m)
33 fc @ 10' (3.05 m)
23 fc @ 12' (3.66 m)
17 fc @ 14' (4.23 m)
13 fc @ 16' (4.88 m)
11 fc @ 18' (5.49 m)
9 fc @ 20' (6.01 m)
Lux 10,500 lux @ 1.64' (0.5 m)
3,030 lux @ 3.28' (1 m)
1,410 lux @ 4.92' (1.5 m)
806 lux @ 6.56' (2 m)
519 lux @ 8.20' (2.5 m)
364 lux @ 9.84' (3 m)
269 lux @ 11.48' (3.5 m)
207 lux @ 13.12' (4 m)
166 lux @ 14.76' (4.5 m)
135 lux @ 16.40' (5 m)
Dimming 5-100%
Power
Ballast Built-in
Input Voltage 100-240 VAC, 50/60 Hz, 0.7 - 1/4 A
Output Frequency 80 kHz
Power Cable 15' (4.57 m) with inline switch
Plug 2-Prong Euro
General
Mounting Center mount with 5/8" (16 mm) receiver
Dimensions 26 x 12 x 6.0" (66 x 30.5 x 15 cm) including barndoors
Weight 14.2 lb (6.4 kg)
Packaging Info
Package Weight 12.65 lb
Box Dimensions (LxWxH) 28.2 x 12.7 x 8.0"
The user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U can be downloaded in .pdf format if it did not come with your new fluorescent lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kino Flo users keep a unique electronic library for Kino Flo fluorescent lightss, where you can use our link to download the user manual for the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U.

The user manual lists all of the functions of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U, all the basic and advanced features and tells you how to use the fluorescent lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kino Flo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kino Flo Diva-Lite 415 Fluorescent Fixture DIV-415-230U. User manuals are also available on the Kino Flo website under Lighting & Studio - Continuous Lighting - Fluorescent Lights.
