User manual Kodak i2900 Document Scanner 1433283

Operating instructions and pdf manual for use - Kodak i2900 Document Scanner 1433283 User manual, User manual Kodak i2900 Document Scanner 1433283, Kodak, i2900, Document, Scanner, 1433283, Video

User manual for Kodak i2900 Document Scanner 1433283

Kodak i2900 Document Scanner 1433283
  • Manufacturer: Kodak
  • Basic description and contents of package
  • Product classification: Photography - Scanners - Flatbed & Document Scanners
  • Safety instructions
  • Startup and operation of the flatbed & document scanners
  • Tips for setting up your Kodak
  • Settings and expert assistance
  • Contact Kodak service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Kodak i2900 Document Scanner 1433283, which address similar problems with connecting and setting up Flatbed & Document Scanners Kodak.


User manual for the Kodak i2900 Document Scanner 1433283

The user manual for the Kodak i2900 Document Scanner 1433283 provides necessary instructions for the proper use of the product Photography - Scanners - Flatbed & Document Scanners.

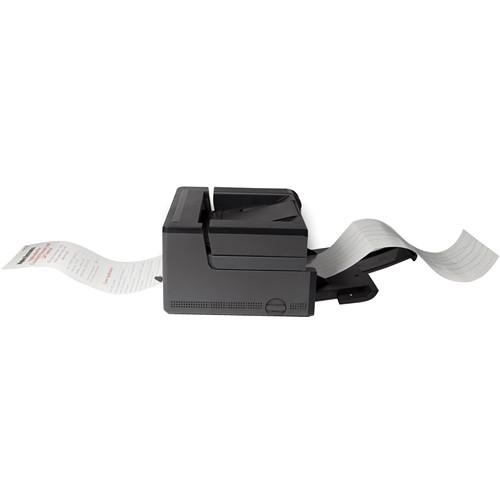

The Kodak i2900 Document Scanner is a fast 600 dpi rotary scanner with the ability to handle up to 60 ppm or 120 ipm at 300 dpi. The scanner is ready for a variety of different document sizes and types as well with both a 250-sheet automatic document feeder and a book-edge A4-size flatbed scanner. This allows for a maximum document size up to 8.5 x 160" in long document mode and a minimum document size of just 2 x 2". Also, there is ultrasonic multi-feed protection built-in to ensure that pages are scanned correctly and without damaging the original documents.

Duplex scanning is another function of this device and the scanner can handle up to 10,000 pages a day with the automatic document feeder. Changing settings and viewing scan info is simple with the implementation of a graphical LCD display and four operating buttons. Also, the scanner connects to a computer with a USB 2.0 connectivity that is also USB 3.0 compatible.
If you own a Kodak flatbed & document scanners and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kodak i2900 Document Scanner 1433283 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kodak i2900 Document Scanner 1433283:
Specifications
    Scan Quality
    Scanner Type ADF, Flatbed
    Image Sensor Dual CCD
    Optical Resolution 600 dpi
    Output Resolution 100, 150, 200, 240, 300, 400, 500, 600, 1200 dpi
    Color Depth Color: 48-bit (3 x 16-bit), output is 24-bit Grayscale: 8-bit (256 levels)
    Film Formats Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF
    Performance
    Duty Cycle ADF: Up to 10,000 pages per day
    Integrated A4 Flatbed: Up to 100 pages per day
    Scan Speed Up to 60 ppm/120 ipm at 200 and 300 dpi in black & white, color, and grayscale with A4/letter-sized paper in portrait orientation
    Maximum Document Size Flatbed: A4, 8.3 x 11.7" (21.0 x 29.7 cm)
    Auto-Feed: 8.5 x 34.0" (21.5 x 863.6 cm)
    Hand-Feed: 8.5 x 34.0" (21.5 x 863.6 cm)
    Long Document Mode: 8.5 x 160.0" (21.5 cm x 4.1 m)
    Minimum Document Size Auto-Feed: 2.5 x 2.5" (6.35 x 6.35 cm)
    Hand-Feed: 2.0 x 2.0" (5.0 x 5.0 cm)
    Paper Weight 9-110 lb (34-413 gsm)
    Automatic Document Feeder 250 sheets of 20 lb (80 gsm) paper
    Document Feeding Ultrasonic multi-feed detection, Intelligent Document Protection
    Features Perfect Page Scanning, iThresholding, adaptive threshold processing, deskew, autocrop, relative cropping, aggressive cropping, electronic color dropout, dual stream scanning, interactive color, brightness and contrast adjustment, automatic orientation, automatic color detection, intelligent background color smoothing, intelligent image edge fill, image merge, content-based blank page detection, streak filtering, image hole fill, sharpness filter, auto brightness
    Connectivity
    Interface USB 2.0 (USB 3.0 compatible)
    Recommended System Configuration 3.4 GHz Intel Core i7 processor or higher
    4 GB RAM or more
    Supported Operating Systems Windows XP SP3 (32/64-bit), Vista SP2 (32/64-bit), 7 SP1 (32/64-bit), 8 (32/64-bit)
    Ubuntu 12.04 (LTS)
    Software Support Included TWAIN, ISIS, and WIA drivers
    Kodak Capture Pro Software Limited Edition
    Smart Touch (Linux SANE and TWAIN drivers available for download)
    Kofax certified
    Supported by Kodak Capture Pro Software and Kodak Asset Management Software
    Physical
    Light Source Dual LED
    Front Panel Controls Graphical LCD display with four operator control buttons
    Acoustics Operating: <60 db(a)
    Ready or Off: <30 dB(A)
    Operating Conditions Temperature: 59 to 95°F (15-35°C)
    Humidity: 15 to 80%, relative
    Certifications AS/NZS CISPR 22:2009 + A1:2010 Class B (C-Tick Mark), CAN/CSA-C22.2 No. 60950-1-07 (C-UL Mark), Canada ICES-003 Issue 5 (Class B), GB4943.1:2011, GB9254:2008 (Class B), GB 17625.1:2003 Harmonics (CCC "S&E" Mark), EN 55022:2010 ITE Emissions (Class B), EN 61000-3-3 Flicker, EN 55024:2010 ITE Immunity (CE Mark), EN 60950-1:2006 + A11, A12, A1 (TUV GS Mark), IEC 60950-1, CISPR 22:2008 (Class B), VCCI V3/2012.04 (Class B), CNS 13438:2006 (Class B), CNS 14336-1 (BSMI Mark), UL 60950-1:07 (UL Mark), CFR 47 Part 15 Subpart B (FCC Class B), Argentina S-Mark
    Power Requirements 100-240 VAC, 50-60 Hz
    Power Consumption Running: <75 w
    Sleep: <4.5 W
    Off: <0.5 W
    Dimensions (WxDxH) 17.0 x 9.4 x 14.6" (43.2 x 23.8 x 37.1 cm) with tray closed
    Weight 35 lb (15.8 kg)
    Packaging Info
    Package Weight 34.8 lb
    The user manual for the Kodak i2900 Document Scanner 1433283 can be downloaded in .pdf format if it did not come with your new flatbed & document scanners, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kodak users keep a unique electronic library for Kodak flatbed & document scannerss, where you can use our link to download the user manual for the Kodak i2900 Document Scanner 1433283.

    The user manual lists all of the functions of the Kodak i2900 Document Scanner 1433283, all the basic and advanced features and tells you how to use the flatbed & document scanners. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kodak service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kodak i2900 Document Scanner 1433283. User manuals are also available on the Kodak website under Photography - Scanners - Flatbed & Document Scanners.
