User manual for the Kodak i4200 Document Scanner 8453508
The user manual for the Kodak i4200 Document Scanner 8453508 provides
necessary instructions for the proper use of the product Photography - Scanners - Flatbed & Document Scanners.

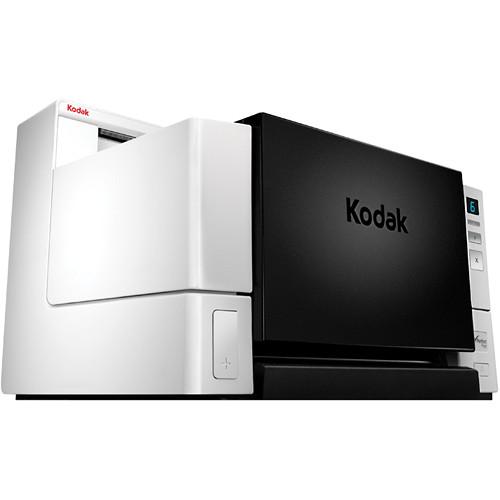

The Kodak i4200 Document Scanner features a 600 dpi CCD sensor and can scan up to 100 pages/minute (200 dpi, bitonal mode). The scanner features a 500-sheet duplexing ADF and a continuous feed mode so you can scan large 1 and 2-sided documents in a single step, including documents up to 160" long. The i4200's built-in image correction and Kodak Perfect Page Technology reduce the need to rescan items with features such as automatic orientation, double-feed detection, auto-crop, deskew, and blank page detection. Additionally, the scanner can output to multiple file formats including PDF, TIFF, and JPEG, and destinations including email, a network folder, printer, or a Microsoft SharePoint Server.
|
If you own a Kodak flatbed & document scanners and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kodak i4200 Document Scanner 8453508 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Kodak i4200 Document Scanner 8453508:
| Scanner Type | CCD | | Optical Resolution | 600 dpi | | Output Resolution | 100 dpi
150 dpi
200 dpi
240 dpi
300 dpi
400 dpi
600 dpi | | File Formats | PDF, Searchable PDF, PDF-A (Kodak Capture Desktop), TIFF/Multi-page TIFF, RTF, TXT, | | Compression | CCITT Group IV, JPEG or uncompressed output | | Scan Modes | Scan to Email, Printer, Microsoft SharePoint Server, Microsoft Word file, Network Folder, Drive | | Scanner Features | Streak Filtering, Controlled Stacking, Perfect Page Technology, iThresholding, Automatic Color Detection, Auto-Crop, Image Edge Fill (black or white), Aggressive Crop, Deskew, Content-Based Blank Page Detection and Deletion, Multi-Color Dropout, Hole Fill, Dual-Stream Scanning, Automatic Orientation, Color-on-the-Fly Toggle Patch | | Duty Cycle | Up to 30,000 pages/day | | Scan Speed | 100 ppm/200 ipm @ 200 dpi, bitonal, landscape | | Batch Scanning | Automatic 500-sheet ADF (elevator design) with 4 settings: continuous feed, 100-sheet, 250-sheet and full 500-sheet batches | | Automatic Document Feeder | 500 sheets | | Scan Area | 2.5 x 2.5 to 12.0 x 160.0" (6.35 x 6.35 to 30.48 x 406.4 cm) | | Media Weight | Standard Feeder: 12 lb bond to 116 lb index (45 to 210 g/m2)
Ultra-Lightweight Feeder: 7.0 lb rice paper to 20 lb bond (25 to 75 g/m2) | | Media Thickness | Up to 49.21 mil (1.25 mm) via straight-through paper path | | Multi-Feed Detection | 3-sensor intelligent ultrasonic technology | | Interface | USB 2.0 | | Drivers | TWAIN, ISIS, WIA, Kofax VRS Kofax VRS is not included | | OS Compatibility | Windows XP SP 2 and higher (32/64-bit)
Windows Vista SP 1 (32-bit)
Windows Vista x64 Edition
Windows 7 (32/64-bit) | | Light Source | White LEDs | | Power Requirements | 100 to 240 V, 50 to 60 Hz | | Power Consumption | Operating: 85.0 W
Sleep: < 3.0 W
Off: < 0.5 W | | Certifications | Energy Star, Section 508, DOC executive order 13221 | | Acoustic Noise | Scanning: < 53 dB(A) at 200 dpi
Standby Mode: < 32 dB(A) | | Temperature / Humidity | Operating Temperature: 50 to 95°F (10 to 35°C)
Operating Humidity: 10 to 85% | | Dimensions (WxDxH) | With Tray Closed: 18.1 x 18.4 x 13.7" (45.97 x 46.73 x 34.79 cm)
With Tray Open: 18.1 x 24.1 x 13.7" (45.97 x 61.30 x 34.79 cm) | | Weight | 75.0 lb (34.0 kg) | | Package Weight | 103.6 lb | | Box Dimensions (LxWxH) | 30.0 x 26.0 x 24.0" | |
The user manual for the Kodak i4200 Document Scanner 8453508 can be downloaded in .pdf
format if it did not come with your new flatbed & document scanners, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Kodak users keep a unique electronic library
for Kodak flatbed & document scannerss,
where you can use our link to download the user manual for the Kodak i4200 Document Scanner 8453508.
The user manual lists all of the functions of the Kodak i4200 Document Scanner 8453508,
all the basic and advanced features and tells you how to use the flatbed & document scanners.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Kodak service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Kodak i4200 Document Scanner 8453508. User manuals are also
available on the Kodak website under Photography - Scanners - Flatbed & Document Scanners.
