User manual Korg KP3 Dynamic Effects/Sampler KP3PLUS

Operating instructions and pdf manual for use - Korg KP3 Dynamic Effects/Sampler KP3PLUS User manual, User manual Korg KP3 Dynamic Effects/Sampler KP3PLUS, Korg, KP3, Dynamic, Effects/Sampler, KP3PLUS, Video


User manual for Korg KP3 Dynamic Effects/Sampler KP3PLUS

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Korg  KP3  Dynamic Effects/Sampler KP3PLUS
  • Manufacturer: Korg
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Effects Processors
  • Safety instructions
  • Startup and operation of the effects processors
  • Tips for setting up your Korg
  • Settings and expert assistance
  • Contact Korg service
  • Troubleshooting
  • Warranty information
  • Price: 265 USD
We recommend checking out our discussion threads on the Korg KP3 Dynamic Effects/Sampler KP3PLUS, which address similar problems with connecting and setting up Effects Processors Korg.



User manual for the Korg KP3 Dynamic Effects/Sampler KP3PLUS

The user manual for the Korg KP3 Dynamic Effects/Sampler KP3PLUS provides necessary instructions for the proper use of the product Pro Audio - Recording - Effects Processors.

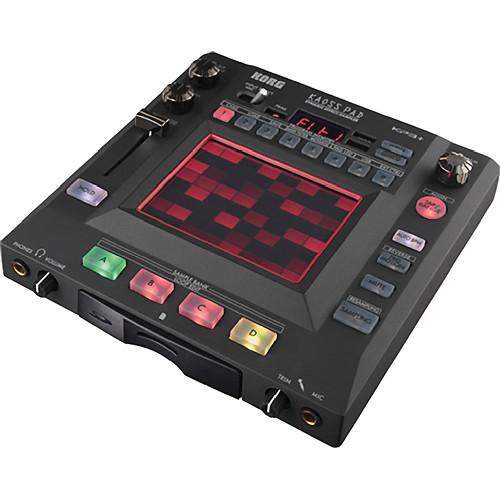

The KP3+ from Korg is a real-time effects unit/sampler and features a touchpad that allows a user to easily control multiple effects and parameters by simply stroking, tapping, or rubbing the touch pad with their finger. The unit contains 150 effects ideal for remixing, DJ and live music applications, and in-studio use, and includes filters, spatial-type effects such as delay and reverb, a grain shifter that freezes tiny pieces of sound and repeats them, and a vocoder.

Included in this effects list are forty-two new effects such as Vinyl Break for simulating the use of a turntable, a Ducking Compressor to emphasize backbeats, a newly designed looper that allows for freely manipulating loops, and a selection of effects to use as fills during breakdowns in a DJ performance. Echo Break and Reverb Break mute the input sound and generate delay or reverb, ideal ways to fill/create these breaks. Also enhanced are the synthesizer sound effects that are effective when used during a break, bringing them up to date for the evolving dance music scene.

Other added effects include the Center Canceler for partial vocal cancellation. The FX Release function automatically adds a delay to smoothly blend the effect when releasing the touchpad. The Mute function cuts the input sound, leaving only the reverb or other effect sound. Pad Motion allows for recording and playing back the finger movements on the touchpad. Additionally, eight program memories can be used to instantly select favorite effect programs, and a Hold effect that sustains the effect even after the finger is released from the touchpad.

The enhanced sampling functionality combines the use of multiple effects and samples. Four sample banks are available, with each capable of recording a sample up to 13 seconds long. Samples can be played either as a one-shot or loop. Start point adjustment can create a half-beat shift to create "doubled" effects, and a slice function edits a loop sample to instantly create completely new phrases. Re-sampling with an effect is available. Samples can be triggered in four different ways and the volume of each sample bank can be adjusted.

The pad LEDs illuminate along the finger path, aiding performance in a dimly lit environment. MIDI In/Out jacks and a USB port make it easy to control external MIDI devices. Loop data and user settings such as programs can be stored on SD/SDHC cards. A downloadable software editor is also available, providing sample data librarian management as well as MIDI assignment.
If you own a Korg effects processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Korg KP3 Dynamic Effects/Sampler KP3PLUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Korg  KP3  Dynamic Effects/Sampler KP3PLUSDownload user manual for Korg KP3 Dynamic Effects/Sampler KP3PLUS
(PDF file, 4.36 MB)
Additional parameters of the Korg KP3 Dynamic Effects/Sampler KP3PLUS:
Specifications
    Converters 24-bit/48 kHz
    Program Memory 150
    Effects 20 x Filter
    2 x EQ
    18 x Modulation
    27 x LFO
    17 x Delay
    8 x Reverb
    6 x Grain Shifter
    20 x Looper
    7 x Sampler
    4 x CrossFade
    6 x Drum
    10 x Synth
    5 x Vocoder
    Sampling Time Each of the four sample banks can record a sample up to 13 seconds
    Controllers 1 x Touch Pad
    1 x Level Slider
    Audio Input 2 x RCA phono
    1 x 1/4" TS Microphone
    Audio Output 2 x RCA phono
    1 x 1/4" TRS Headphone
    Other Connectors 1 x USB Type B
    2 x 5-pin DIN MIDI I/O
    Display 4-digit LED
    Storage SD Card: 16 MB to 2 GB
    SDHC Card: 32 GB
    Power Requirements 9V DC via included power adapter
    System Requirements Mac
    Computer with USB ports (Intel Mac support)
    OS X 10.5 or later
    PC
    Computer with USB port
    Windows XP SP3 or later, Vista SP2 or later (32-/64-bit), Windows 7 SP1 or later (32-/64-bit), Windows 8 (32-/64-bit)
    Dimensions (WxDxH) 8.3 x 8.9 x 1.9" (210 x 226 x 49* mm) *includes knobs height
    Weight 2.9 lb (1.3 kg)
    Packaging Info
    Package Weight 4.2 lb
    Box Dimensions (LxWxH) 14.0 x 9.5 x 3.0"
    The user manual for the Korg KP3 Dynamic Effects/Sampler KP3PLUS can be downloaded in .pdf format if it did not come with your new effects processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Korg users keep a unique electronic library for Korg effects processorss, where you can use our link to download the user manual for the Korg KP3 Dynamic Effects/Sampler KP3PLUS.

    The user manual lists all of the functions of the Korg KP3 Dynamic Effects/Sampler KP3PLUS, all the basic and advanced features and tells you how to use the effects processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Korg service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Korg KP3 Dynamic Effects/Sampler KP3PLUS. User manuals are also available on the Korg website under Pro Audio - Recording - Effects Processors.
