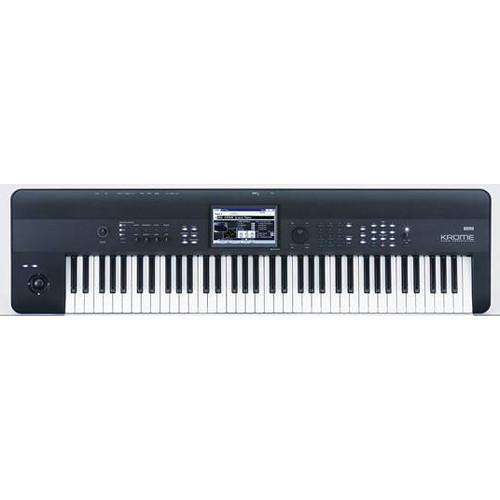

User manual Korg Krome 73-Key Music Workstation KROME 73

Operating instructions and pdf manual for use - Korg Krome 73-Key Music Workstation KROME 73 User manual, User manual Korg Krome 73-Key Music Workstation KROME 73, Korg, Krome, 73-Key, Music, Workstation, KROME, 73, Video

User manual for Korg Krome 73-Key Music Workstation KROME 73

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Korg Krome 73-Key Music Workstation KROME 73
  • Manufacturer: Korg
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Synthesizer Keyboards
  • Safety instructions
  • Startup and operation of the synthesizer keyboards
  • Tips for setting up your Korg
  • Settings and expert assistance
  • Contact Korg service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Korg Krome 73-Key Music Workstation KROME 73, which address similar problems with connecting and setting up Synthesizer Keyboards Korg.


User manual for the Korg Krome 73-Key Music Workstation KROME 73

The user manual for the Korg Krome 73-Key Music Workstation KROME 73 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Synthesizer Keyboards.

The Krome 73-Key Music Workstation by Korg features a wide selection of sounds, including piano, electric piano, dynamic drum kits, 640 programs and 288 combinations. The 73-key semi-weighted natural touch keyboard provides a feel and response ideal for any style of piano playing.

The Korg Krome has plentiful onboard sounds, including the "German D Grand" patch, which features 88 full-length unlooped stereo samples and damper resonance. The three types of electric pianos have eight velocity levels to ensure a faithful response to the nuances of your playing. Additionally, vintage amps, cabinets and effects have been modeled to add realism to your playing experience. Krome contains "Jazz Ambience Drums" which capture a dramatic realism by allowing you to adjust the balance between the direct sound and the ambient room sound. Krome also includes 640 programs or 288 combinations, each created by professional musicians to provide both clean backing parts and soaring solos. The Drum Track feature, with more than 600 preset patterns, also allows drum patterns to be created and used with the sequencer.

Krome features an onboard 16-track sequencer. The Auto Song Setup function starts recording immediately at the press of a button. Each Template Song assigns genre-appropriate sounds to sequencer tracks with pre-routed effects. Korg's Cue List enables quick arranging with Realtime Pattern/Play Recording. Any necessary edits or changes can be made using the convenient piano-roll editing.

Krome connects to your computer via USB to easily transfer MIDI data. An SD card slot is also available to help you manage Krome's data files. The Krome Editor and Krome Plug-In Editor allow you to edit your Krome settings from a computer and/or integrate it as a software synthesizer in your DAW.
If you own a Korg synthesizer keyboards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Korg Krome 73-Key Music Workstation KROME 73 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Korg Krome 73-Key Music Workstation KROME 73Download user manual for Korg Krome 73-Key Music Workstation KROME 73
(PDF file, 5.5 MB)
Additional parameters of the Korg Krome 73-Key Music Workstation KROME 73:
Specifications
    Keyboard
    Keyboard Type 73-key velocity-sensitive, C1 to C7 range
    Tone Generating Technology EDS-X (Enhanced Definition Synthesis-eXpanded)
    Voices
    Polyphony 120 voices (120 Oscillators) / Single Mode
    60 voices (120 Oscillators) / Double Mode

    The maximum simultaneous voice polyphony will vary depending on oscillator settings such as stereo multisamples and velocity crossfading.
    PCM Memory 3.8 GB, 48kHz/16-bit linear equivalent
    583 Multisamples (Including 12 Stereo multisamples)
    2,080 Drumsamples (Including 474 Stereo Drumsamples)
    Program Audio
    Oscillator OSC1 (Single); OSC1 + 2 (Double): Stereo multisamples are supported
    8 velocity zones per oscillator with switching, crossfades and layers
    Filters Four types of filter routing (single, serial, parallel, 24 dB)
    Two multi-mode filters per oscillator (low pass, high pass, band pass, band reject)
    Driver Per-voice nonlinear driver and low boost
    Equalizer Three bands, with sweepable mid
    Modulation For each oscillator: two envelope generators (Filter & Amp)
    Two LFOs
    Two key tracking generators (Filter & Amp)
    Two AMS mixers
    Pitch EG
    Common LFO
    Two common key tracking generators
    Combination Timbres: 16 maximum, each with split/layer/velocity switching with crossfading, plus modifications via Tone Adjust function

    MIDI Controller Functionality: Customizable MIDI channel and Internal/External/Both settings per timbre

    Master Keyboard Functionality: Available for controlling external MIDI devices
    Drum Kits Stereo and mono drum samples
    8 velocity zones switch (crossfades and layers)
    Sounds Program: 640 preload, 768 total locations
    Combi: 288 preload, 512 total locations
    Drumkits: 32 preload, 48 total locations
    Effects
    Insert 5 Insert Effects (stereo in/out)
    2 Master Effects (stereo in/out)
    1 Total Effect (stereo in/out)
    EQ Controls 3-band EQ per timbre/track
    Effect Types 193, useable as Insert, Master, or Total effects
    Note that a double-size effect cannot be used as a total effect
    Modulation Dynamic Modulation, 2 Common LFO
    Effect Variations Stereo sidechain (Limiter, Gate, Vocoder, etc)
    Presets 32 presets per effect
    Polyphonic Arpeggiator
    Program Single polyphonic arpeggiator
    Combination Dual polyphonic arpeggiators
    Patterns 900 preload, 1028 total locations
    5 preset arpeggio patterns
    Drum Patterns 637 preload, 1000 total locations
    Configurable Trigger Mode/Sync/Zone
    Sequencer
    Tracks 16 MIDI tracks + 1 master track
    Number of Songs 128 Songs
    Resolution 1/480 PPQ
    Tempo 40.00 to 300.00 (1/100 BPM resolution)
    Max Memory Size 210,000 MIDI events
    Auto Templates 16 preset / 16 user template songs
    Cue Mode 20 Cue Lists
    99 steps
    Pattern 605 Preset / 100 User patterns
    Recording RPPR (Realtime Pattern Play and Recording):
    1 pattern set per song
    Format KORG (KROME) format, SMF format 0 and 1
    Media Management Load, Save, Utility, data filer functionality (Save and Load MIDI System Exclusive Data)
    Controller
    Joystick Joystick, SW [1], SW [2]
    Realtime Controllers [SELECT] Switch:
    REALTIME CONTROL (TONE, USER), ARP
    4 Knobs;
    REALTIME CONTROL: Real-time Modulation, Arpeggio control
    Drum Sound Module [DRUM TRACK] Switch On/Off
    Arpeggiator [ARP] Switch On/Off
    User Interface
    Display TouchView Graphical User Interface
    7-inch color TFT LCD, 800 x 480 pixels
    Onboard LCD brightness control
    Front Panel Switches Mode Switch:
    [COMBI], [PROG], [SEQ], [GLOBAL], [MEDIA] switch

    VALUE controller:
    [VALUE] Dial, [INC], [DEC] Switch, 10 key block ([0] - [9], [-], [.], [ENTER], [COMPARE])

    BANK Switch:
    [A], [B], [C], [D], [E], [F] switch (in Combination mode, [A], [B], [C], [D] switch are available)

    SEQUENCER switch:
    [PAUSE], [REW], [FF], [LOCATE], [REC], [START / STOP]

    TEMPO:
    [TEMPO] knob, [TAP] switch

    Others:
    [PAGE] switch, [WRITE] switch, [EXIT] switch, [VOLUME] knob, Contrast knob
    Outputs
    Audio Output 1 x 1/4" TS (L / Mono)
    1 x 1/4" TS (R)
    Output Impedance: 1100Ω, 550Ω with Mono output
    Maximum level: 16 dBu
    Load Impedance: more than 10Ω
    Headphone Output 1 x 1/8" (3.5 mm) TRS stereo
    Output Impedance: 33Ω
    Maximum level: 60 + 60 mW with 33Ω load
    Control Input DAMPER pedal (Half Damper supported)
    ASSIGNABLE SWITCH
    ASSIGNABLE PEDAL
    MIDI In/Out
    USB Port 1 x USB type B
    SD Card Slot Max: 2 GB / SD memory card
    Max: 32 GB / SDHC memory card
    Note: SDXC memory cards are not supported
    System Requirements
    Mac System Requirements Mac OS X 10.5 or later (32-bit and 64-bit kernel modes supported)
    Note: This plug-in is not 64-bit
    CPU: Intel Mac supported
    Later Core Duo recommended
    Memory: More than 512MB (at least 1 GB recommended)
    Monitor: 1,024 x 768, at least 32,000 colors
    Others: Available USB port
    Windows System Requirements Windows Vista SP2 / 7 (all editions)
    CPU: Intel Pentium 4 greater than 1 GHz
    Later Core Duo recommended
    Memory: More than 512MB (Greater than 1 GB recommended)
    Monitor: 1,024 x 768, at least 16-bit color
    Others: Available USB port
    General
    Power Supply DC12V 3.5A
    Power Consumption 13W
    Power Switch Yes
    Dimensions (W x D x H) 46.89 x 12.32 x 3.66" (1,191 x 313 x 93 mm)
    Weight 18.08 lb (8.2 kg)
    Packaging Info
    Package Weight 26.4 lb
    Box Dimensions (LxWxH) 53.0 x 17.0 x 8.0"
    The user manual for the Korg Krome 73-Key Music Workstation KROME 73 can be downloaded in .pdf format if it did not come with your new synthesizer keyboards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Korg users keep a unique electronic library for Korg synthesizer keyboardss, where you can use our link to download the user manual for the Korg Krome 73-Key Music Workstation KROME 73.

    The user manual lists all of the functions of the Korg Krome 73-Key Music Workstation KROME 73, all the basic and advanced features and tells you how to use the synthesizer keyboards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Korg service.
