User manual Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP

Operating instructions and pdf manual for use - Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP User manual, User manual Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP, Kowa, LMZ110AMP, 1/3, Video, Auto-Iris, Zoom, Lens, LMZ110AMP,


User manual for Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP

Kowa LMZ110AMP 1/3
  • Manufacturer: Kowa
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Kowa
  • Settings and expert assistance
  • Contact Kowa service
  • Troubleshooting
  • Warranty information
  • Price: 680 USD
We recommend checking out our discussion threads on the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP, which address similar problems with connecting and setting up Lenses Kowa.



User manual for the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP

The user manual for the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

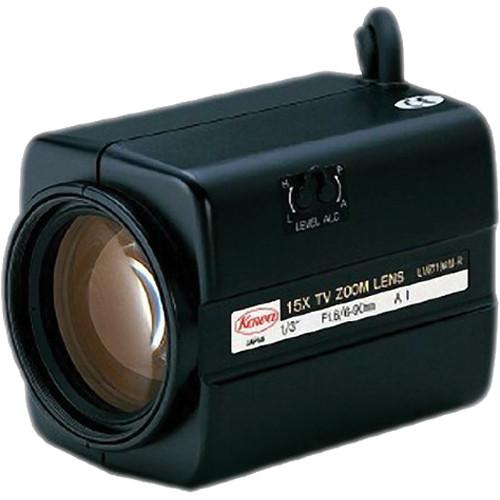

The Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens with Preset (6 to 90mm) incorporates the 3-Cam design that solves the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam Design also reduces internal reflection so that the image obtained is sharper than that of the conventional pole system. With the 3-Cam design, the customer can expect higher optical performance and a longer service life.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP:
Specifications
    Sensor Size 1/3" color, B&W camera
    Focal Length 6 to 90 mm
    Iris Range F1.6 to 360
    Image Size Ø6 (4.8 x 3.6)
    Back Focal Length 9.5 mm in air
    Flange Focal Distance 12.5 mm in air
    Focus Range Infinity to 1.2 m
    Zoom 15x
    Mount CS-mount
    Angle of View Horizontal: 44.2° (wide), 3.1° (tele)
    Diagonal: 54.3° (wide), 3.9° (tele)
    Vertical: 33.5° (wide), 2.4° (tele)
    Distortion -0.7% (wide), +0.05% (tele)
    Field of View at M.O.D Horizontal: 914.6 mm (wide), 62.4 mm (tele)
    Diagonal: 1145.6 mm (wide), 78 mm (tele)
    Vertical: 682 mm (wide), 46.8 mm (tele)
    Lens Construction 11 groups, 14 elements
    Iris Control Video Auto-Iris
    Correcting Plate Clear Aperture Front: Ø46, Rear: Ø10.6
    Exit Pupil Position -113 mm format
    Weight 1.1 lb (530 g)
    Packaging Info
    Package Weight 3.0 lb
    The user manual for the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kowa users keep a unique electronic library for Kowa lensess, where you can use our link to download the user manual for the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP.

    The user manual lists all of the functions of the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kowa service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kowa LMZ110AMP 1/3" Video Auto-Iris Zoom Lens LMZ110AMP. User manuals are also available on the Kowa website under Surveillance - Surveillance Video - Lenses - Lenses.
