Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN
  • Manufacturer: Kramer
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's)
  • Safety instructions
  • Startup and operation of the distribution amplifiers (da's)
  • Tips for setting up your Kramer
  • Settings and expert assistance
  • Contact Kramer service
  • Troubleshooting
  • Warranty information
  • Price: 88 USD
We recommend checking out our discussion threads on the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN, which address similar problems with connecting and setting up Distribution Amplifiers (DA's) Kramer.



User manual for the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN

The user manual for the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).

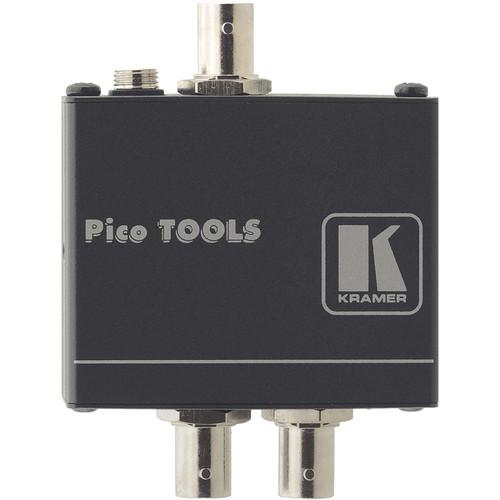

The Kramer PT-102VN 1:2 Composite Video Distribution Amplifier supports composite video or SDI signals. It accepts 1 video or audio stereo signal input buffers, isolates, and distributes it in to 2 identical outputs using BNC connectors.

With the help of the trimmers provided on the front panel, the gain of the amplifier can be controlled. The PT-102VN offers gain and equalization control to compensate for cable losses. A high video bandwidth of 430MHz (-3 dB) ensures a quick response time for most of the applications. To handle more than 1 input, you can increase the number of inputs by connecting a high-resolution video switcher. Using an optional RK-13 rack adaptor, you can mount 4 units side-by-side in a 1U rack space. The PT-102VN amplifier is suitable for use with display systems that require the same images to be displayed on several monitors. It is also ideal for use with CCTV and home theater systems and for video duplication.
If you own a Kramer distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer PT-102VN 1:2 Composite Video Distribution PT-102VNDownload user manual for Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN
(PDF file, 0.53 MB)
Additional parameters of the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN:
Specifications
    Inputs 1 video, 1Vpp/75Ω on a BNC connector
    Outputs 2 video, 1Vpp/75Ω on BNC connectors
    Maximum Video Output 2Vpp
    Video Bandwidth 430MHz
    Differential Gain 0.05%
    Differential Phase 0.05 °
    K-Factor <0.05%
    S/N Ratio 76.1dB
    Control -1.2 to +6dB,
    EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel
    Power Source 12V DC, 30mA
    Dimensions (WxDxH) 2.36 x 2.56 x 1" (6 x 6.5 x 2.5cm)
    Weight 0.31lbs (0.14kg)
    Adaptor RK-4PT 19" rack adapter (optional)
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 9.1 x 5.4 x 3.8"
    The user manual for the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN can be downloaded in .pdf format if it did not come with your new distribution amplifiers (da's), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kramer users keep a unique electronic library for Kramer distribution amplifiers (da's)s, where you can use our link to download the user manual for the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN.

    The user manual lists all of the functions of the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN, all the basic and advanced features and tells you how to use the distribution amplifiers (da's). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kramer service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kramer PT-102VN 1:2 Composite Video Distribution PT-102VN. User manuals are also available on the Kramer website under Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).
