User manual Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD

Operating instructions and pdf manual for use - Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD User manual, User manual Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD, Kramer, TP-102HD, Computer, Graphics, Video, &, HDTV


User manual for Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD

Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD
  • Manufacturer: Kramer
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your Kramer
  • Settings and expert assistance
  • Contact Kramer service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD, which address similar problems with connecting and setting up Video Extenders & Repeaters Kramer.



User manual for the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD

The user manual for the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

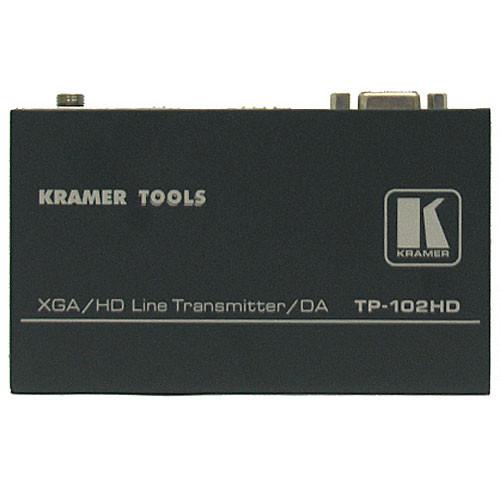

The TP-102HD Computer Graphics Video & HDTV over Twisted Pair Transmitter from Comprehensive/Kramer is the transmitter in a paired transmitter-receiver solution designed for sending computer graphics video and HDTV signals over twisted-pair cabling. This solution is well suited for use in studios, airports, offices, security & military installations, and hospitals, among many other similar settings and uses.

It supports resolutions up to UXGA and 1080p with a system range of 300'. The unit may be used with unshielded twisted-pair cable such as CAT5. Other features include horizontal and vertical sync polarity selection. The unit features Kramer's Power Connect technology, meaning that only one device in the system needs to be connected to an electrical source to power all system units (all units in the system must have Power Connect to use this feature). It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit.
If you own a Kramer video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HDDownload user manual for Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD
(PDF file, 0.42 MB)
Additional parameters of the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD:
Construction Metal
Finish Black
Input (1) XGA/HD on an 15-pin HD F connector
Output (2) RJ-45 out connectors
Output Level 1.7Vpp (maximum)
Resolution UXGA, 1080p
Differential Gain 0.75%
Differential Phase 0.05°
K-Factor 0.1%
Signal-to-Noise Ratio 73dB
Controls (2) switches for sync inversion
Coupling AC
Power 12VDC, 447mA
Dimensions (HxWxD) 1.08 x 4.7 x 2.8" (2.76 x 12 x 6.95cm)
Weight 0.67 lbs (0.3kg)
Packaging Info
Package Weight 1.15 lb
Box Dimensions (LxWxH) 9.1 x 4.8 x 3.5"
The user manual for the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kramer users keep a unique electronic library for Kramer video extenders & repeaterss, where you can use our link to download the user manual for the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD.

The user manual lists all of the functions of the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kramer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kramer TP-102HD Computer Graphics Video & HDTV over TP-102HD. User manuals are also available on the Kramer website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
