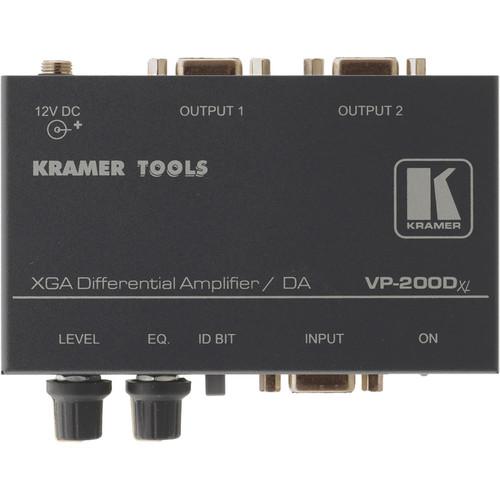

The VP-200Dxl 1:2 XGA Differential Line / Distribution Amplifier from Comprehensive/Kramer is designed for use with computer graphics video signals with resolutions ranging from VGA through UXGA and higher. This unit is ideal for use in dual-monitor or presentation systems that require long-range transmission of signals, among other possible uses.

It features differential circuitry that helps to eliminate the noise often found on the input in long cable runs. Other features include a bandwidth capacity of 400MHz, level (gain) & EQ (peaking) controls, and ID-bit control. This unit is HDTV compatible. It also belongs to the Kramer TOOLs family of products and up to (3) units can be mounted side by side in a standard 19" equipment rack by using the optional RK-3T rack kit.
If you own a Kramer distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer VP-200Dxl 1:2 XGA Differential Amplifier / VP-200DXL in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer VP-200Dxl 1:2 XGA Differential Amplifier / VP-200DXLDownload user manual for Kramer VP-200Dxl 1:2 XGA Differential Amplifier / VP-200DXL
(PDF file, 0.18 MB)
Additional parameters of the Kramer VP-200Dxl 1:2 XGA Differential Amplifier / VP-200DXL:
Construction Metal
Finish Black
Input (1) analog red, green, blue signals - 0.7Vpp/75 Ohms, H & V sync, TTL level, on an 15-pin HD F connector
Output (1) analog red, green, blue signals - 0.7Vpp/75 Ohms, H & V sync, TTL level, on an 15-pin HD F connector
Bandwidth 400MHz
Differential Gain 0.17%
Differential Phase 0.01°
Coupling DC
K-Factor <0.05%
Signal-to-Noise Ratio 71.5dB
Control Level: -1.1 to +6dB
EQ: 0 to +14.5dB, ID bit
Power 12VDC, 150 mA
Dimensions (HxWxD) 0.98 x 4.7 x 2.95" (2.5 x 12. 7.5cm)
Weight 0.66 lbs (0.3kg)
