User manual for the KRK Rokit 8 G3 - 100W 8" Two-Way Active Studio RP8G3
The user manual for the KRK Rokit 8 G3 - 100W 8" Two-Way Active Studio RP8G3 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

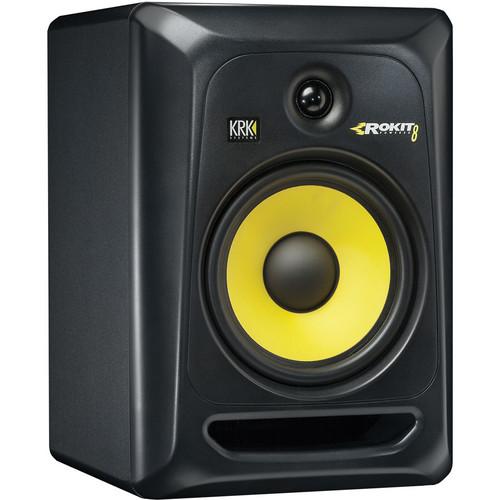

The Rokit 8 G3 from KRK is a 100W two-way active studio monitor for your home or professional studio. Equipped with a bi-amped, class A/B amplifier that powers a 8" woofer and a 1" tweeter, the Rokit 8 G3 is designed to offer maximum headroom with minimal distortion. The soft-dome tweeter, which provides extended response up to 35kHz, is designed with a proprietary waveguide that is optimized for improved imaging. The aramid glass composite woofer has been engineered to deliver a clear response in the midrange along with a tight low end.
The speaker is housed in a low resonance enclosure that includes a factory installed foam pad at the bottom to provide improved isolation from the surface it's set upon. Under the woofer there is a front firing port that provides an extended low frequency response while reducing boundary coupling at the same time. Additionally, the enclosure features radiused edges that reduce distortion caused by diffraction.
The Rokit 8 G3 also provides flexible connectivity, allowing for input via XLR, TRS or RCA connection. It also provides both low and high frequency adjustments so you can tailor the speaker's response curve to your personal taste.
|
If you own a KRK studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the KRK Rokit 8 G3 - 100W 8" Two-Way Active Studio RP8G3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the KRK Rokit 8 G3 - 100W 8" Two-Way Active Studio RP8G3:
| Configuration | 2-Way | | System Type | Active Monitor | | Transducer Type | HF - 1" silk dome tweeter
LF - 8" Aramid glass composite woofer | | Frequency Range | 35 Hz - 35 kHz (-10dB) | | Crossover Frequency | 2.0 kHz | | Power | 100W total
25W high frequency, 75W low frequency | | Maximum SPL | 109 dB | | Standby Mode | Auto, 30 minutes | | Cabinet | MDF | | Connector | Unbalanced 7kΩ RCA
Balanced 10kΩ ¼" TRS and XLR (Pin 2 & Tip = HotPositive, Pin 3 & Ring = ColdNegative, Pin 1 & Sleeve = Ground) | | Control | HF Level Adjust (-2dB, -1dB, 0, +1dB)
LF Level Adjust (-2dB, -1dB, 0, +2dB)
System Volume (-30dB to +6dB) | | Fuse Rating | Slow blow type, 5 mm x 20 mm
100V~, 110-120V~ - 2A - 250V | | Dimensions | 12.4 x 10.8 x 15.6" (315 x 275 x 396 mm) | | Weight | 24.6 lb (11.2 kg) | | Package Weight | 29.35 lb | | Box Dimensions (LxWxH) | 19.8 x 15.2 x 14.0" | |
