User manual LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U

Operating instructions and pdf manual for use - LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U User manual, User manual LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U, LaCie, 48TB, 8big, Thunderbolt, 2, Rack, Series, RAID, 9000598


User manual for LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U

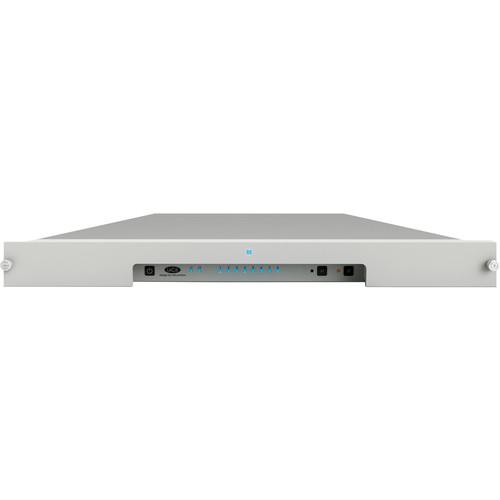

LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U
  • Manufacturer: LaCie
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your LaCie
  • Settings and expert assistance
  • Contact LaCie service
  • Troubleshooting
  • Warranty information
LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U
Click to enlarge image

We recommend checking out our discussion threads on the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U, which address similar problems with connecting and setting up Hard Drive Arrays LaCie.



User manual for the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U

The user manual for the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

The 48TB 8big Thunderbolt 2 Rack Series RAID from LaCie is an 8-bay storage enclosure complete with a 48TB storage capacity perfect for storing large files such as 4K video, RAW photos, and much more. It comes with enterprise drives that spin at a rotational speed 7200 rpm and offer 64MB of cache as well as designed to run 24 x 7. With Thunderbolt 2 connectivity you can transfer data at speeds up to 1330 MB/s (in RAID 0) to greatly enhance 4K workflows as you can now see edits in real time. Additionally, the LaCie 8big Rack Thunderbolt 2 works in conjunction with applications such as Apple Final Cut Pro, Adobe Premier, Adobe Lightroom, and Apple Aperture.

What really makes the 8big stand out is the large number of RAID configurations you have available. RAID configurations include RAID 0, 1, 5, 6, 10, and JBOD. While this storage enclosure comes preconfigured in RAID 5, it can easily be reconfigured to suit nearly any storage need. Additionally, the drives are formatted in HFS+ to work out of the box for Mac and require reformatting for Windows use.

The integrated Thunderbolt 2 ports truly open up the capability of the 8big as they offer enhanced data transfer rates to speed up workflows. In addition to faster workflows, the dual Thunderbolt 2 ports provide the ability to daisy chain up to 6 devices to a single computer including the ability to connect a 4K monitor with DisplayPort 1.2 compatibility.
If you own a LaCie hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598UDownload user manual for LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U
(PDF file, 3.06 MB)
Additional parameters of the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U:
Specifications
Capacity 48 TB
Internal Storage Media 8 x 6TB Hot Swappable Enterprise class 7200RPM/64MB cache hard disks

Hot swapping will result in data loss in a RAID 0 array
Interface 2 x Thunderbolt 2 ports
Interface Transfer Rate (Max) 20 Gb/s
Performance Benchmark Reads | Writes (MB/s)
RAID 0: 1330 | 1060 / RAID 5: 1130 | 1020 (8-disk)

These transfer rates were achieved using AJA System Test when connected to a 13" Macbook Pro with a 2.8 GHz Intel Core i7 processor and 8 GB RAM. Actual data rates may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, and disk capacity
Interface Technology Bidirectional 20 Gb/s permits a high-resolution display and RAW 4K video editing
Power Saving Mode Reduce power consumption by pressing the front button to spin down disks without disrupting daisy chain transfers
(short press initiates power-saving mode; long press turns product off completely)
RAID Modes Preconfigured in RAID 5
Hardware RAID 0 / 1 / 5 / 6 / 10 / JBOD
Configure RAID using LaCie RAID Manager software
Daisy Chain Connect up to six Thunderbolt-compatible devices - including Thunderbolt 2 and LaCie Thunderbolt Series products - to a computer via a single Thunderbolt cable

To achieve full interface bandwidth, connect the product to a Thunderbolt 2 port on a computer or device
Security AES 256-bit software encryption
Cable management arm
Cooling Redundant, hot-swappable fans
Aluminum front and all-metal enclosure
Efficient cooling for long-term reliability
Acoustics Idle: 50 dB
Operating mode: 53 dB
Operating max: 69 dB


These measurements have been made under normal conditions, one meter/three feet from the front of the product. This value may vary with conditions and product configuration
Power Supply 2 x 100-240 V; 50/60 Hz; 250 W
System Requirements Computer with a Thunderbolt 2 or Thunderbolt port
Mac OS X 10.9 and later
Minimum free disk space: 600 MB recommended

To achieve full interface bandwidth, connect the product to a Thunderbolt 2 port on a computer or device
Software Intego Backup Manager Pro
LaCie Private-Public (protect data with AES 256-bit encryption)
LaCie RAID Manager (administration console)
Dimensions (WxHxD) 18.9 x 30.4 x 1.7" / 477 x 772 x 44 mm
Weight 44 lb / 20 kg
Diskless: 33 lb / 15 kg
Packaging Info
Package Weight 58.14 lb
Box Dimensions (LxWxH) 38.0 x 24.0 x 7.5"
The user manual for the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LaCie users keep a unique electronic library for LaCie hard drive arrayss, where you can use our link to download the user manual for the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U.

The user manual lists all of the functions of the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LaCie service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LaCie 48TB 8big Thunderbolt 2 Rack Series RAID 9000598U. User manuals are also available on the LaCie website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
