User manual LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354

Operating instructions and pdf manual for use - LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354 User manual, User manual LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354, LaCie, 6TB, 2big, Quadra, USB, 3.0, 2-Bay, RAID, Array, 9000354,


User manual for LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354
  • Manufacturer: LaCie
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your LaCie
  • Settings and expert assistance
  • Contact LaCie service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354, which address similar problems with connecting and setting up Hard Drive Arrays LaCie.



User manual for the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354

The user manual for the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

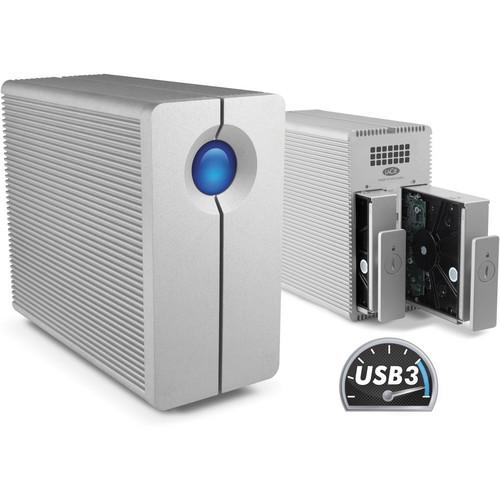

The 6TB 2big Quadra USB 3.0 2-Bay RAID Array by LaCie is a dual bay RAID enclosure that features 2x 3TB hard drives, running at 7200 rpm with a 32MB cache. The external enclosure also features USB 3.0/2.0 and FireWire 800/400 connectivity, giving you the flexibility and options to attach this unit to older PCs and Macs.

USB 3.0 offers an interface transfer rate of up to 5.0 Gbps, while the average (sustained) transfer rate is 210 MBps. The FireWire transfer rate is 800 Mbps max, and the average transfer 82 MBps. It supports RAID 0 (both disks are counted as one large drive) and RAID 1 (striping the data for redundancy and backup) and is preconfigured as RAID 0. The drives are user-serviceable and hot swappable, meaning that you can replace them at any time with fresh drives for more storage capacity.

There are also a number of features that give the LaCie 4TB 2big Quadra an added layer of protection. Besides the redundancy of data in Raid 1 mode, the unit also ships with professional backup software for timed and scheduled backups that include file-level and system-level restores. This gives you the option of performing a full system backup that would let you boot your Mac directly from the 2big Quadra. It's compatible with Time Machine and Windows 7 backup, and there's even a Kensington lock slot to prevent physical theft of the unit.

Another feature that ensures reliability in your data protection is the effective dual cooling system. An overheated drive can mean the difference between restore and failure, and LaCie has implemented a system that consists of three components - a solid aluminum heat sink, a thermo-regulated magnetic levitation fan, and numerous large venting holes for air dissipation. The fan controls speed based on the ambient temperature of the unit, so it's energy efficient and quiet since it is not spinning unnecessarily all hours of the day. You can also set the unit to deliver email alerts when a temperature or RAID level is approaching a critical status to help you plan ahead and avoid crashes.
If you own a LaCie hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354Download user manual for LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354
(PDF file, 1.23 MB)
Additional parameters of the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354:
Specifications
    Performance
    Capacity 6TB (2x 3TB)
    Interface 1 x USB 3.0 port (UAS compatible and USB 2.0 compatible)
    2 x FireWire 800 (9-pin) ports
    Drive Speed 7200 rpm
    Buffer 32MB
    Average Seek Time Not supplied by manufacturer
    Sustained Data Transfer Rate USB 3.0: Up to 210MB/s
    FireWire 800: Up to 82MB/s
    FireWire 400: Up to 40MB/s
    USB 2.0: Up to 35MB/s
    Supported RAID Levels Preconfigured RAID 0
    Modes: RAID 0 (Fast) / RAID 1 (Safe)
    Security System monitoring and email alerts for temperature and RAID events
    Kensington lock compatible
    Cable management
    System Requirements •Latest version of Windows XP, Windows Vista, Windows 7, Windows 8
    •Mac OS X 10.5 (Intel only), 10.6, 10.7, 10.8 or greater
    •Computer with a FireWire 800, FireWire 400, USB 2.0 or USB 3.0 port
    •Minimum free disk space: 600MB recommended
    General
    Mounting External, desktop
    Power Requirements 100-240Vca; 50/60Hz
    Environmental Requirements None supplied by manufacturer
    Noise Average Value (idle): 21.9dB
    Average Value (stress): 32.3dB
    Dimensions (WxHxD) 3.5 x 6.7 x 7.8" / 91 x 172 x 200 mm
    Weight 7.9 lbs / 3.6 kg
    Packaging Info
    Package Weight 10.0 lb
    Box Dimensions (LxWxH) 9.7 x 9.1 x 7.4"
    The user manual for the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354 can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LaCie users keep a unique electronic library for LaCie hard drive arrayss, where you can use our link to download the user manual for the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354.

    The user manual lists all of the functions of the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LaCie service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LaCie 6TB 2big Quadra USB 3.0 2-Bay RAID Array 9000354. User manuals are also available on the LaCie website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
