User manual Leader PHABRIX SxE 3 in 1 PHABRIX SX-E

Operating instructions and pdf manual for use - Leader PHABRIX SxE 3 in 1 PHABRIX SX-E User manual, User manual Leader PHABRIX SxE 3 in 1 PHABRIX SX-E, Leader, PHABRIX, SxE, 3, in, 1, PHABRIX, SX-E, Video


User manual for Leader PHABRIX SxE 3 in 1 PHABRIX SX-E

Leader  PHABRIX SxE 3 in 1 PHABRIX SX-E
  • Manufacturer: Leader
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Test Equipment & Accessories
  • Safety instructions
  • Startup and operation of the test equipment & accessories
  • Tips for setting up your Leader
  • Settings and expert assistance
  • Contact Leader service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E, which address similar problems with connecting and setting up Test Equipment & Accessories Leader.



User manual for the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E

The user manual for the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Test Equipment & Accessories.

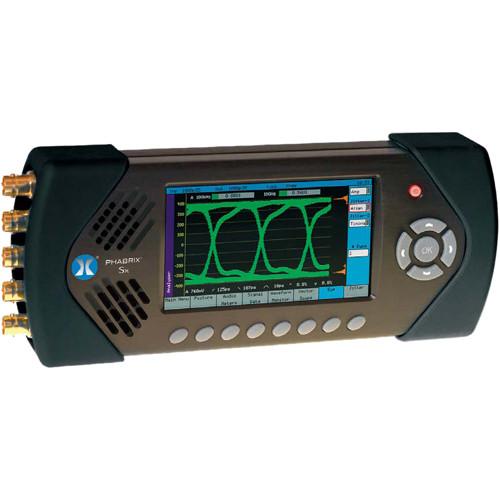

The PHABRIX SxE 3 in 1 Generator/Analyzer/Monitor with Eye and Jitter from Leader is designed to meet the specific demands of both broadcast and manufacturing industries that require eye and jitter measurement. This unit produces eye patterns from a 3G signal, which is particularly significant for those users requiring a solution for testing high-end products in the 3G arena.
If you own a Leader test equipment & accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E:
Video VIDEO
SDI: 3G-SDI, HD-SDI, SD-SDI
Outputs: 1 x 75 Ohm BNC
Inputs: 1 x 75 Ohm BNC
Genlock: bi/tri/SDI with cross lock
Adjustable: timing 0 to 1 Frame
Text Identification: yes with font, color, point size
Logo Identification: yes
EDH: yes (SD-SDI)

VIDEO TEST SIGNALS
Resolution: 10 bits
Static Test Patterns: 32+ including full frame
User Defined: DPX, YUV, TGA, BMP
Zone Plate: yes

VIDEO INPUTS/OUTPUTS
Eye Bit Rates: 3Gbps,1.485Gbps, 270Mbps
Jitter SMPTE: specification filters
Jitter Thermometers: alignment, timing

Audio AUDIO
Internal Speaker: 0.5W
Audio DAC: 24 bit stereo
Headphone Socket: 3.5 mm with auto line out
Generator/Monitor: 48kHz 20-bit (SD-SDI) 24-bit (HD-SDI)
16 Channel Embedded Audio: yes
AES Output: 1 x 75 Ohm BNC
AES Input: 1 x 75 Ohm BNC

AUDIO TEST SIGNAL
Fixed Tones: 17
Variable Tones: 1Hz to 24Khz in 1Hz steps
Intermittent Tone: yes
White Noise Generation: yes
Audio Levels Variable: 0 to -100dB in 1dB steps
Audio Phase Invert: yes

Display Display Resolution: 480 x 272 pixels auto scaling
Display Type: 16:9 24 bit color TFT
Display Size: 95 x 54 mm
Processing: all digital
Power AC power supply (universal)
3-hour lithium polymer integral battery supply
Dimensions (HxWxD) 3.62 x 8.86 x 1.65" (92 x 225 x 42mm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 4.75 lb
Box Dimensions (LxWxH) 11.9 x 8.9 x 4.1"
The user manual for the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E can be downloaded in .pdf format if it did not come with your new test equipment & accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leader users keep a unique electronic library for Leader test equipment & accessoriess, where you can use our link to download the user manual for the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E.

The user manual lists all of the functions of the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E, all the basic and advanced features and tells you how to use the test equipment & accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leader service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leader PHABRIX SxE 3 in 1 PHABRIX SX-E. User manuals are also available on the Leader website under Professional Video - Signal Processing & Distribution - Test Equipment & Accessories.
