User manual for the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24

The user manual for the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Transmitters.

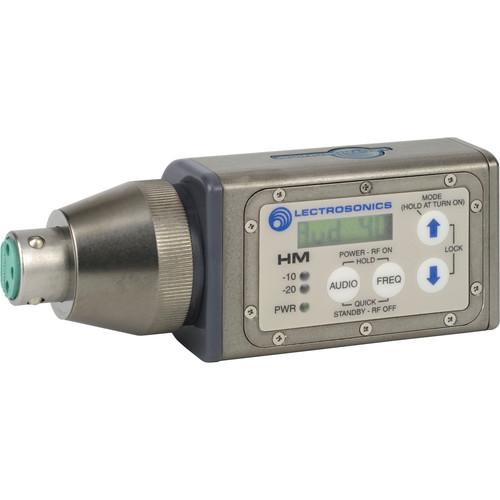

The HM Digital UHF Wireless Plug-On Microphone Transmitter from Lectrosonics enables you to transmit the signal of any XLR microphone wirelessly. The HM transmitter overcomes inherent channel noise with its patented Digital Hybrid Wireless technology, which digitally encodes the audio. Digital conversion before transmission provides all of the benefits of conventional FM wireless systems, (range, resistance to interference, etc) without the noisy artifacts introduced by analog compandors.

The HM transmitter provides 256 user-selectable UHF frequencies. The input amplifier uses an ultra low noise op-amp for quiet operation. Gain controlled with a wide range dual envelope limiter, it provides over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters supersonic noise above 21 kHz.

HM transmitters are backwards compatible with Lectrosonics 100, 200, and IFB series receivers; as well as being compatible with third-party analog receivers. Phantom power from its XLR input jack is selectable between 5, 18 and 48 volts, making the HM compatible with just about any condenser or dynamic microphone. It's powered by two AA lithium, NiMH, or alkaline batteries for up to 12.75 hours of use, with Phantom Power engaged (lithium).

The sound quality of the HM transmitter is outstanding. The power supply provides constant voltages, switching to accommodate the life-cycle of the batteries, resulting in an ultra low noise input amplifier. The excellent signal to noise ratio and dynamic range of the HM qualify it for use in the most demanding of professional applications.
If you own a Lectrosonics wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24Download user manual for Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24
(PDF file, 1.57 MB)
Additional parameters of the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24:
Specifications
    Frequency Selection 256 frequencies in 100 kHz steps
    Operating Frequency 614.400 - 639.900 MHz
    RF Power Output 100 mW (nominal)
    Pilot Tone 25 to 32 kHz; 5 kHz deviation (in the 400 Series operating mode)
    Frequency Stability ± 0.002%
    Deviation ± 75 kHz (max)
    Spurious Emission 60 dB below carrier
    Equivalent Input Noise -125 dBV (A-weighted)
    Input Level Nominal 2 mV to 300 mV, before limiting; greater than 1V maximum, with limiting
    Input Impedance 300 Ohms
    Limiter Dual envelope "soft" limiter; greater than 30 dB range
    Gain Range 55 dB; panel mounted membrane switches
    Modulation Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation
    Frequency Response 35 Hz to 20 kHz (+/-1dB)
    Low Frequency Roll-Off Adjustable for -3 dB @ 30, 50, 70 Hz
    THD 0.2% (typ. 100 Hz to 20 kHz)
    Signal to Noise Ratio SmartNR Off
    • no limiting: 103.5 dB
    • limiting: 108 dB

    SmartNR Normal
    • no limiting: 107 dB
    • limiting: 111.5 dB

    SmartNR Full
    • no limiting: 108.5 dB
    • limiting: 113 dB
    Dynamic Range 125 dB (with full Tx limiting)
    Controls and Indicators
    • Power/Phantom "ON-OFF" switch
    • Phantom voltage selector switch
    • Audio input gain knob
    • LCD w/membrane switches
    • LED audio level indicators
    Audio Input Jack Standard 3-pin XLR (female)
    Phantom Power Off; 5V @ 18 mA max; 15V @ 15 mA max; 48V @ 4 mA max
    Antenna Housing and attached microphone form the antenna
    Battery Two 1.5 Volt AA lithium or rechargeable NiMH recommended
    Battery Life Alkaline
    • No Phantom: 5 hrs
    • 48V on: 3.5 hrs

    NiMH 2500
    • No Phantom: 9.25 hrs
    • 48V on: 7 hrs

    Lithium
    • No Phantom: 16 hrs
    • 48V on: 12.75 hrs
    Emission Standard 180KF3E
    Dimensions 4.25 x 1.62 x 1.38" (10.8 x 4.1 x 3.5 cm)
    Weight 6.7 oz (190 g) without batteries
    Packaging Info
    Package Weight 1.15 lb
    Box Dimensions (LxWxH) 9.7 x 7.9 x 3.0"
    The user manual for the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24 can be downloaded in .pdf format if it did not come with your new wireless transmitters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lectrosonics users keep a unique electronic library for Lectrosonics wireless transmitterss, where you can use our link to download the user manual for the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24.

    The user manual lists all of the functions of the Lectrosonics HM Digital UHF Wireless Plug-On Microphone HM-24, all the basic and advanced features and tells you how to use the wireless transmitters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lectrosonics service.
